Stainless Steel Austenitic Chematec Tank - IPP# 211547

Type: Tank

Manufacturer: Chematec AG

Condition: Used

Material: Stainless Steel 317

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Horizontal

Diameter: 800 mm (31.5 in). Straight-side Length: 1,932 mm (76.1 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Support: Other.

Type: Tank

Manufacturer: Chematec AG

Condition: Used

Material: Stainless Steel 317

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Horizontal

Diameter: 800 mm (31.5 in). Straight-side Length: 1,932 mm (76.1 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 317. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Chematec AG

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Horizontal

• Overall length 2410 mm.
• Designed to sit in saddles, no saddles with unit.

Diameter: 800 mm (31.5 in). Straight-side Length: 2,280 mm (89.8 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

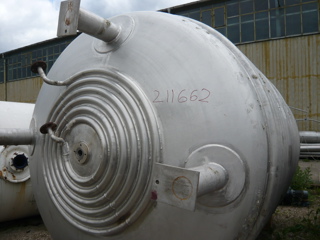

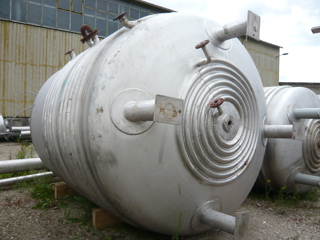

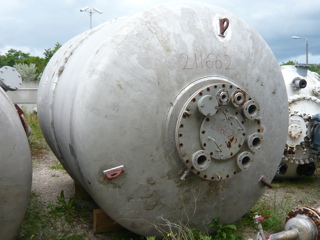

Type: Tank

Manufacturer: Koehler-Bosshardt

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 16,000 L (4,227 gallons)

Orientation: Vertical

• Jacket covers bottom head and 1/2 of the straight side.
• Top and bottom head thickness is 8mm

Diameter: 2,600 mm (102.4 in). Straight-side Length: 2,953 mm (116.3 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 50 °C (122 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Austenitic. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Support: Legs.
