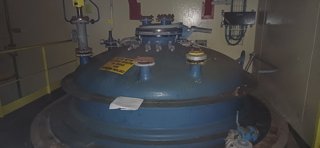

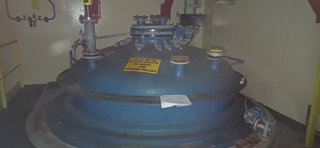

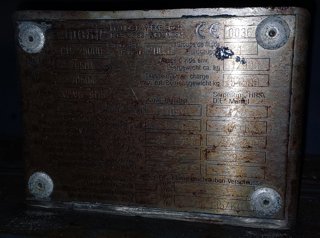

Glasslined Pfaudler CH 25000 Tank - IPP# 211649

Type: Tank

Manufacturer: Pfaudler

Model: CH 25000

Condition: Used

Material: Glasslined

Capacity (Design): 27,100 L (7,150 gallons)

Orientation: Vertical

• working capacity 25000 liter,
• design pressure internal -1/6 bar @ -25/200 degrees C,
• jacket -1/6 bar @ -25/200 degrees C (427 liter),
• glass type WWG 9115,
• jacket on straight side only
• Design code: AD2000 PED 97/23/EG, CAT IV,

Diameter: 2,600 mm (102.4 in). Straight-side Length: 4,450 mm (176.1 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Carbon Steel. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Ring.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 9,450 L (2,500 gallons)

Orientation: Horizontal

Diameter: 2,150 mm (85 in). Straight-side Length: 2,150 mm (84 in). Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Orientation: Vertical

Diameter: 1,400 mm (56 in). Straight-side Length: 1,150 mm (46 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 176.7 °C (350 °F). Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Glasslined

Capacity (Design): 378.5 L (100 gallons)

Orientation: Horizontal

Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 343.3 °C (650 °F). Support: Legs.
