Stainless Steel 316 Mixer-Nauta 8,000 L (2,113 gallons) For Sale - IPP# 211836

Type: Mixer-Nauta

Manufacturer: Nautamix

Model: Mbx 60 R

Condition: Used

Material: Stainless Steel 316

Capacity: 6,000 L (1,585 gallons)

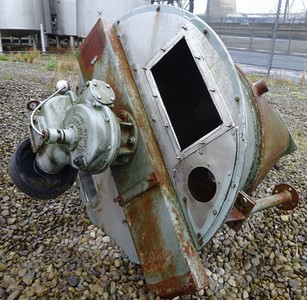

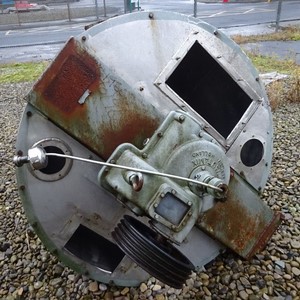

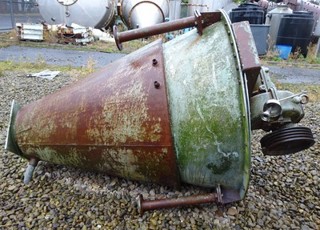

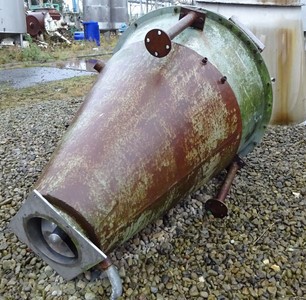

order #16667 high conical section bolt flat top, screw and rotating orbital arm both driven from the top orbital arm driven by 1.5kw, 3/50/220/380 volt, 1420 rpm motor via 50 rpm reduction gearbox screw 350mm diameter x 3624mm long, 270mm screw pitch. screw is attached via a bottom pintle bearing openings top: 2-350mm (1 is the manway), 2-250mm, 3-100mm (2 are sightglasses), side bottom discharge with chute and pneumatic valve, chute has a 200mm discharge opening with pneuamtic butterfly valve,

Type: Mixer-Nauta

Manufacturer: Alpine (Hosokawa)

Model: KM100

Condition: Used

Material: Stainless Steel 316

Capacity: 10,000 L (2,642 gallons)

Mixer Type: Double Helix

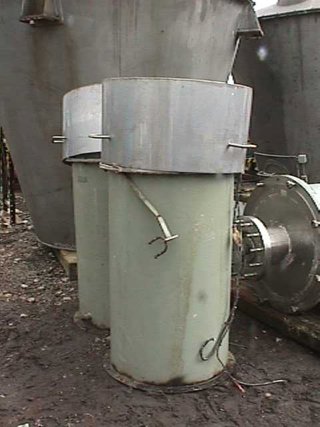

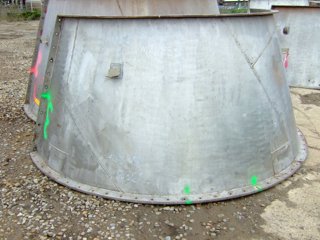

truncated cone mixer 3080mm top diameter x 2440mm high cone section with 1800mm diameter truncated cone bottom Max speed 20 rpm 316 stainless steel twin helical agitator on single shaft. serial #21084086/1 20-710 rpm Belt driven with fluid clutch and thermistor (overheat protection). Unit designed for slow rotating batch mixing. Product is subject to minimal mechanical and thermal stress. Can be used on: soup mixtures, baking mixtures, spice mixtures, feedstuff, pesticides, dry materials with liquid and dry mortar mixes. Batch size 3800-6000 Kg. Openings: top 1-500mm with inspection cover, 3-50mm (1 with magnehelics gauge); cone side 1-480mm hinged inspection door; bottom discharge 310mm x 260mm. Unit with a reverse air jet filter.

Dust Collection: Yes.

Type: Mixer-Nauta

Model: D300

Condition: Used

Material: Stainless Steel 316

Capacity: 300 L (79.3 gallons)

sanitary jacketed mixer, Jacket pressure 40 psi. carbon steel jacket on cone section. Belt driven.
