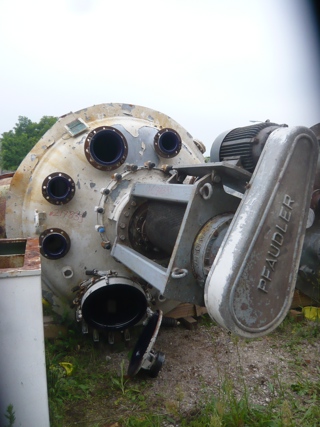

7,595 L (2,006 gallons) Glasslined Batch-Type Agitated Reactor For Sale IPP# 217619

IPP# 217619, 7,595 L (2,006 gallons) Glasslined Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Glasslined

Manufacturer:

Pfaudler

Capacity Design:

7,595 L (2,006 gallons)

Internal Pressure:

6 bar (87 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

200 °C (392 °F)

Jacket Pressure:

6 bar (87 psi)

Jacket Temperature:

200 °C (392 °F)

Orientation:

Vertical

Agitation:

Yes

Baffle Type:

Beavertail

Top Head Type:

Dish

Bottom Head Type:

Dish

Manway:

Yes

Nozzle Schedule:

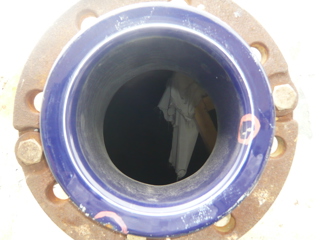

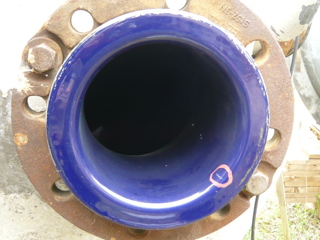

openings top: 1-350/450mm manway, 2-250mm, 5-150mm, straight side: 2-50mm (jacket), bottom: 1-150mm, 2-50mm (jacket)

Additional Info:

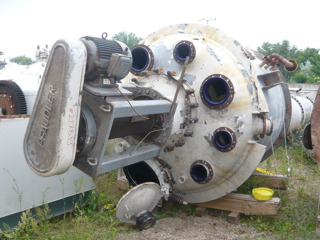

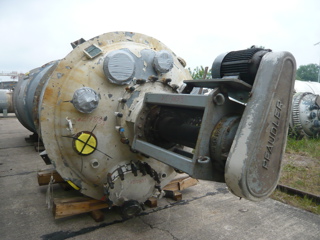

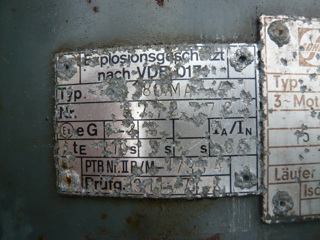

DIN number: 28136 Glass type: 8000 (white) Thermowell: (1) quatro pipe thermowell 2m diameter x 2416mm tan to bottom outlet, belt driven by 15kw, 3/50/290/500 volt, 1460 rpm EExd e11CT motor, VS0 16/100 mechanical seal with lubricator, shaft speed 125 rpm, (1) beavertail baffle, (1) thermowell (quatro pipe),
