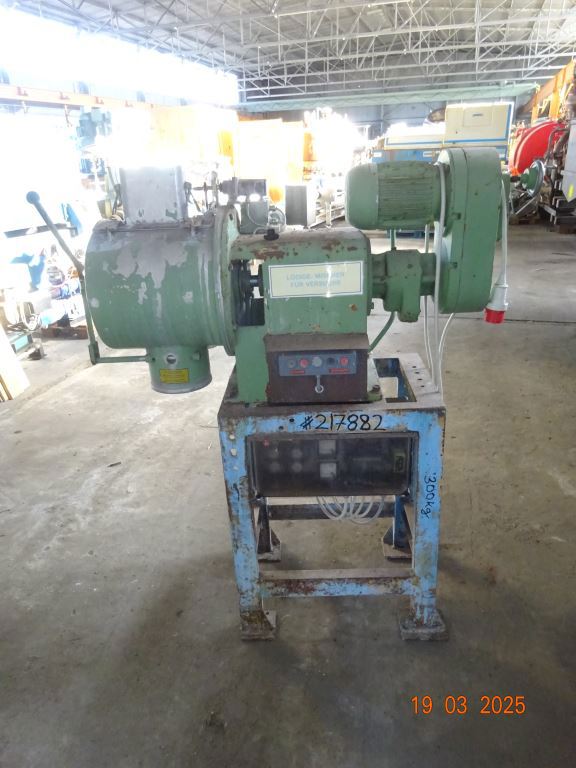

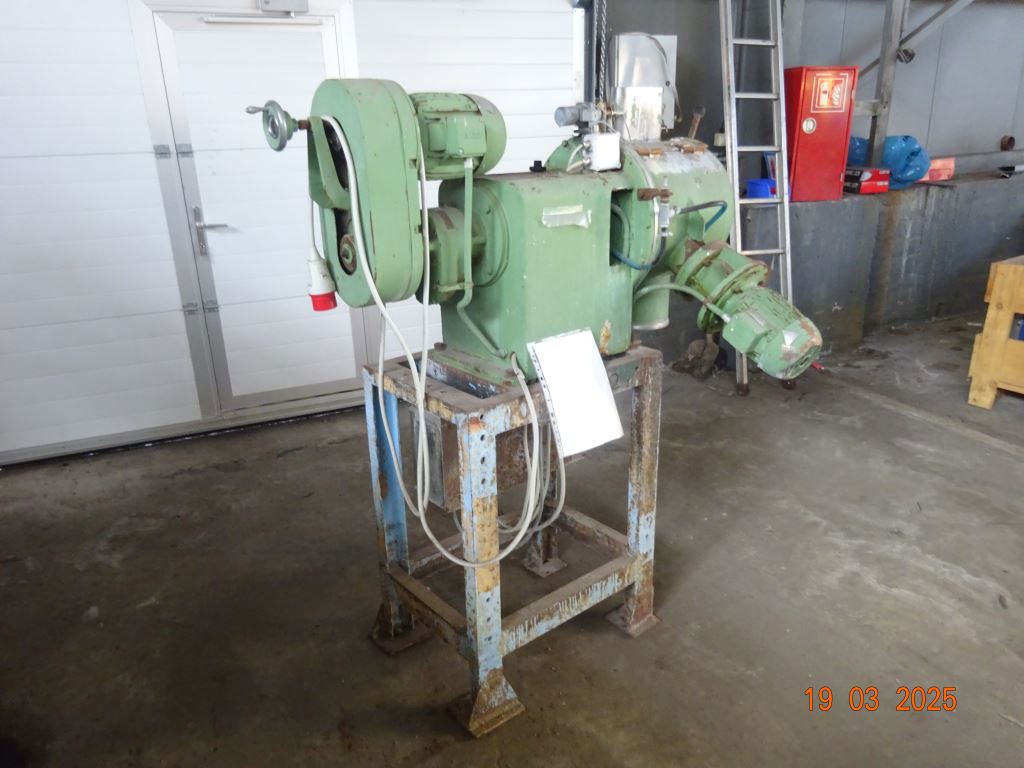

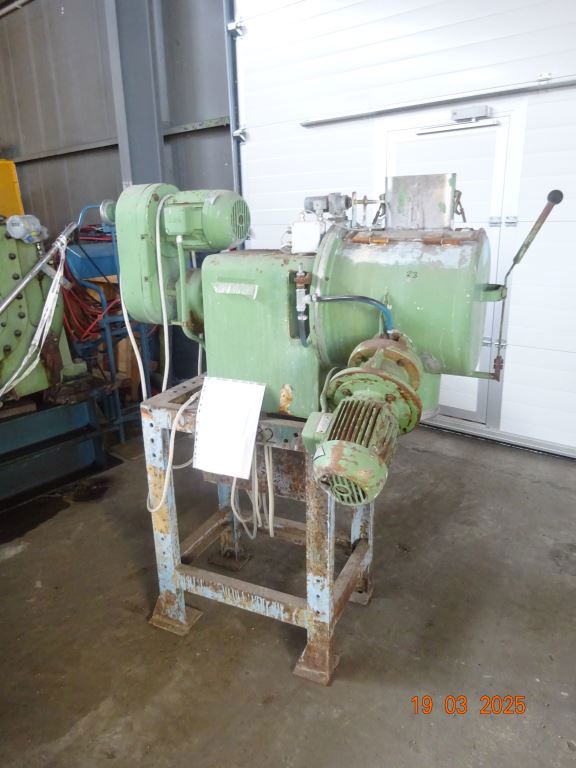

Stainless Steel Other Mixer-Ribbon & Paddle - IPP# 217882

Type: Mixer-Ribbon & Paddle

Manufacturer: Loedige Littleford Ploughshare

Model: FKM 1200 D2 Z

Condition: Used

Material: Stainless Steel Other

Design Capacity: 1.2 m3 (42.4 ft3)

Operating Capacity: 0.6 m3 (21.2 ft3)

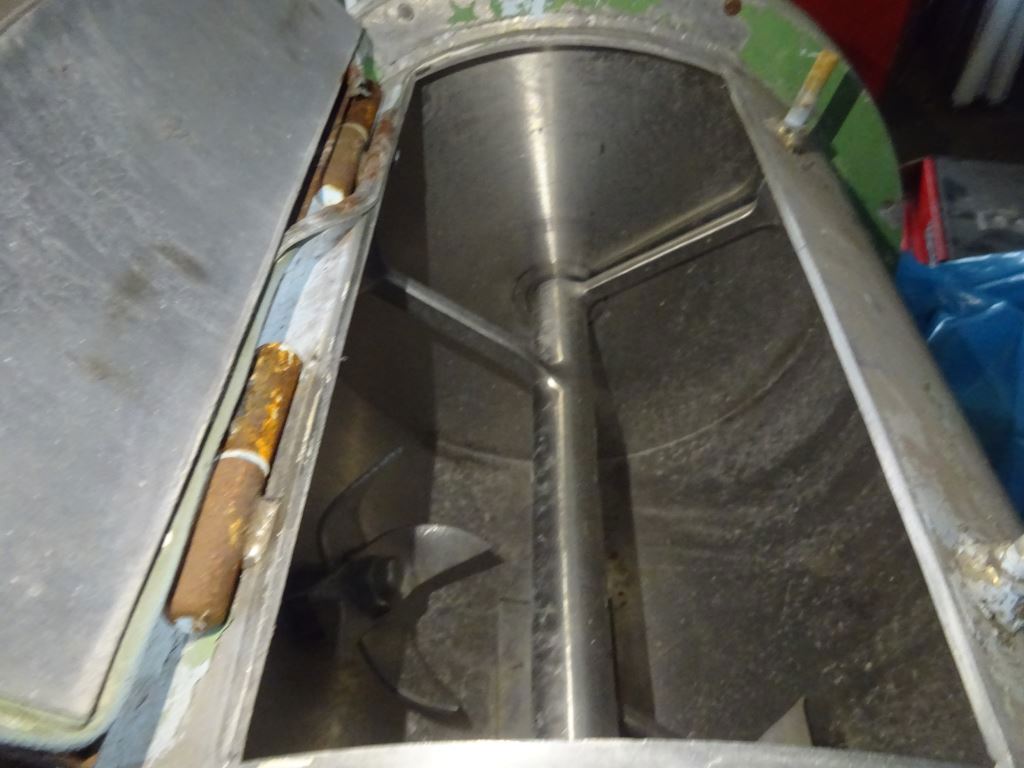

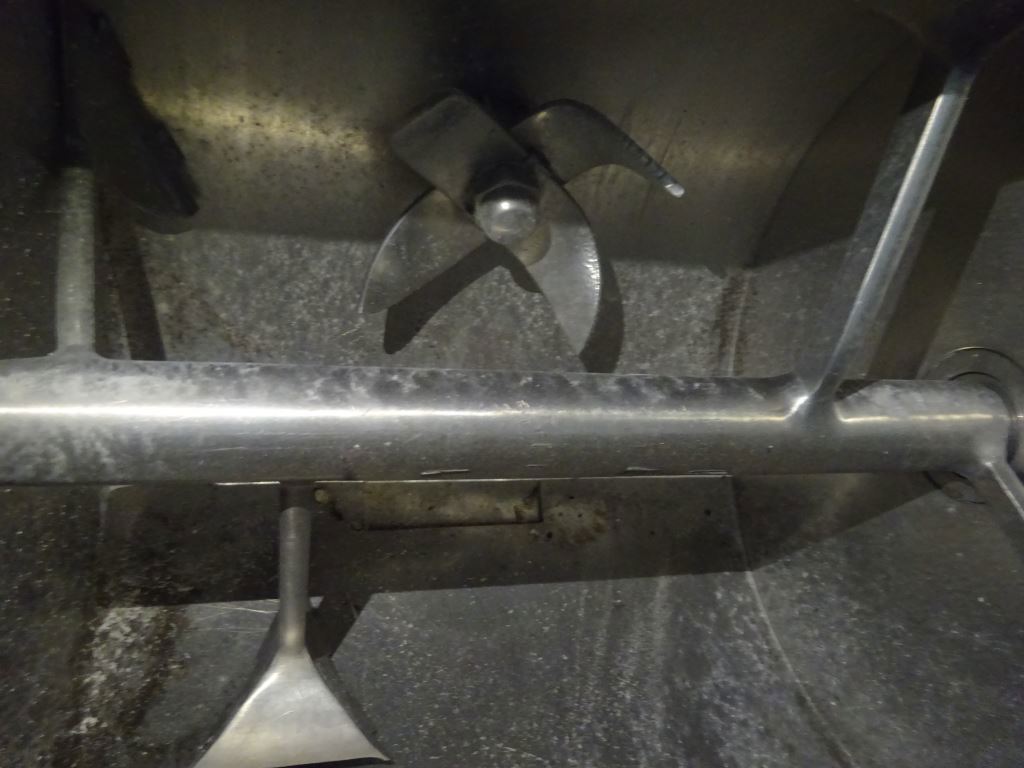

plough share mixer without jacket rated internal atmospheric mixer included 2 choppers, two doors for bottom discharge main V-belt drive data Main drive and gear box dismantled

Vessel Pressure: 1.01 bar (14.7 psi). Ribbon Type: Plows.

Type: Mixer-Ribbon & Paddle

Manufacturer: Loedige Littleford Ploughshare

Model: FKM 3000.D.4MZ.4ZF.4L

Condition: Refurbished/Rebuilt

Material: Stainless Steel 321

Design Capacity: 3 m3 (105.9 ft3)

Operating Capacity: 2 m3 (70.6 ft3)

jacketed Loedige ploughshare mixer with choppers machine #7644 behalter #1952 jacket pressure 0.5 bar @ 110 deg C (180ltr) chamber 1110mm diameter x 2960mm straight side, internal rotor with (10) plow blades and (2) end blades, blades are removable via a reduction gearbox, packed gland on shaft, c/steel jacket on straight side only. (4) 321 s/steel choppers each belt driven by a 2-speed motor 7.5 kw 3/50/230/460/380/420 volt, 2950 rpm or 8.5 kw, 3/60/440/480 volt, 3510 rpm (8) spray nozzles, openings top: 3-350mm, jacket: 6-50mm, straight side: 2-540mm wide x 400mm high inspection doors, 2-50mm (for probes), bottom: 3-300mm long x 200mm wide each with a pneumatic operated valve, 8-25mm (spray nozzles,

Vessel Temperature: 110 °C (230 °F). Ribbon Type: Plows. Agitation Shaft Sealing: Packing.

Type: Mixer-Ribbon & Paddle

Manufacturer: Loedige Littleford Ploughshare

Model: KM8000

Condition: Used

Material: Stainless Steel 304

Design Capacity: 8 m3 (282.5 ft3)

Operating Capacity: 5 m3 (176.6 ft3)

continuous mixing 25,000 kg/hr 8000 liter(2113 gallon) total capacity with (2) side hatches with hinged covers and hand wheel swing bolts, (1) 16" x 24" ID top drive end charge port, (1) 16" ID vent port top center, and (1) 17" x 20" ID bottom end discharge port. Internal shaft with plows 3/60/230/460 volt 1750 rpm down to 90 rpm Weight 17,200 lbs.

Operational mode: Continuous. Ribbon Type: Plows.

Type: Mixer-Ribbon & Paddle

Manufacturer: Alpine (Hosokawa)

Model: HMC-60

Condition: Used

Material: Stainless Steel Other

Design Capacity: 0.06 m3 (2.1 ft3)

Operating Capacity: 0.04 m3 (1.41 ft3)

ribbon speed 158 rpm (max) 3/50/380/415 volt trough 1.2m long x 300mm wide x 350mm deep hinged top cover

Ribbon Type: Interrupted ribbon.
