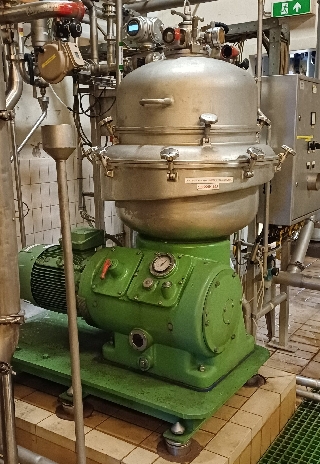

Alfa Laval 440 Centrifuge-Disc Bowl - IPP# 2205

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: HMBRPX 213

Condition: Used

Material: Stainless Steel 316L

Motor Horsepower: 18 kW (24.1 HP)

Number of Phases: 3

• de-sludger centrifuge,
• liquid/liquid/solids,
• worm wheel shaft 1420-1500 rpm,
• Tachometer 1420-1500 rpm,
• speed counter 118-125 rpm,
• driven by 18.5/21.3kW, 3/50-60/400/690/460 volt, 1465/1765/1770 rpm IP55 motor,
• approx 6000 liter/hour,

RPM Maximum: 1,500.

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: HMBRPX 213-SFV-34C1/4189-20

Condition: Used

Material: Stainless Steel 316L

Motor Horsepower: 18 kW (24.1 HP)

Number of Phases: 3

• de-sludger centrifuge,
• liquid/liquid/solids,
• worm wheel shaft 1420-1500 rpm,
• Tachometer 1420-1500 rpm,
• speed counter 118-125 rpm,
• driven by 18kW, 3/50/380/220 volt, 1460 rpm motor,
• approx 6000 liter/hour,

RPM Maximum: 1,500.

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: BRPX 213S-34

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 18.5 kW (24.8 HP)

With tools

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: CHPX 510 SGD-35CGRX

Condition: Used

Material: Stainless Steel 316

Motor Horsepower: 22 kW (29.5 HP)

Bowl Diameter: 405 mm (15.9 in)

seperator (clarifier) centrifuge Product # 88185-01-01 max. density of feed 1100 kg/m3 Max. density of sediment, 1238 kg.m3 Max density of operating liquid, 1000 kg/m3 Max operating temp. 100 degrees C Intermittent discharge of sediment Bowl size 10 Complete with motor, inlet & outlet housing, centrifugal pump/pairing disk, water harness, Manuals, inlet/outlet flowmeters and controls

Inlet Diameter: 35.5 mm (1.4 in). Bowl Volume: 16 L (4.2 gallons). Controls: Yes. RPM Maximum: 6,236.
