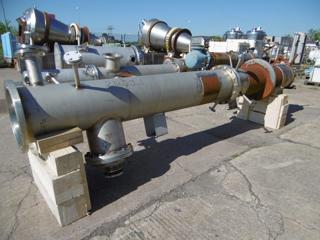

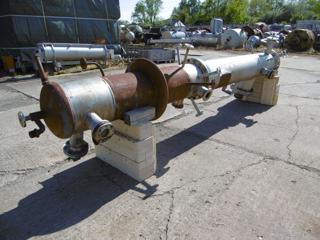

top section 710mm diameter x 12m straight side, bottom section 610mm diameter x 8840mm straight side top part of column with (2) packed sections: 1-1820mm high and 1-5980mm high, bottom section with (2) packed part of column with (2) packed sections both 3120mm high, type 6M packing
Type: Column
Subtype: Packed
Manufacturer: Sulzer
Condition: Used
Material: Stainless Steel 316
Diameter (1): 400 mm (15.7 in)
Pressure: 3.2 bar (46.4 psi)

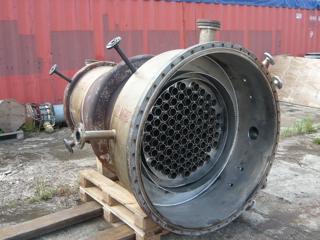

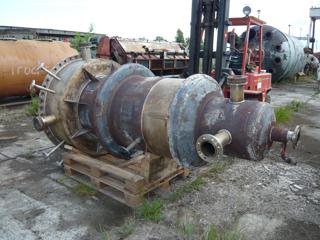

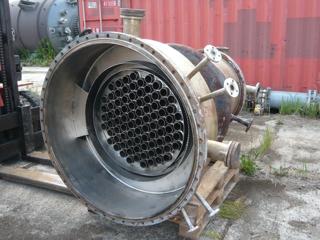

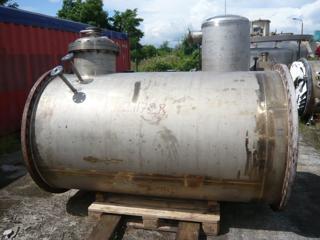

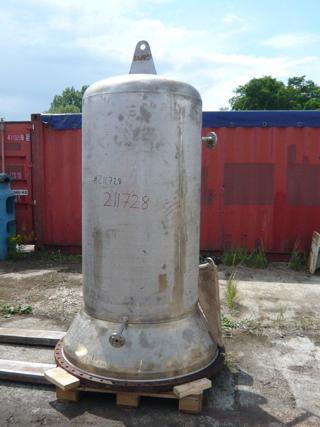

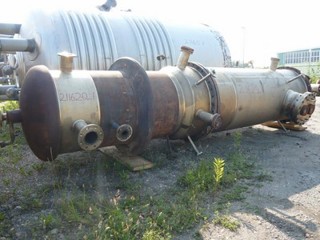

316lss Packed Rectification Column Unit bolted in 4 sections: Top section is 400 mm x 1140 mm, with aproz 2.5 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 400 mm diam x 2040 mm long each, with a packed beds with 316LSS Sulzer packing in each section. Bottom section has a Falling film evaprator section with 316LSS vertical tubes in this section
Vacuum: Yes. Temperature: 300 °C (572 °F).
Type: Column
Subtype: Packed
Manufacturer: Sulzer
Condition: Used
Material: Stainless Steel 316
Diameter (1): 900 mm (35.4 in)
Pressure: 3 bar (43.5 psi)
800/900 mm x 8520 mm (~31-35" x 28') /OAH Packed Rectification Column Design operating conditons: 1.2 Torr, @ 245 Degrees C, 225 to 380 kg/h gass flow; 315 to 470 kg/h liter. Unit bolted in 4 sections: Top section is 800 mm x 1700 mm, with a 8 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 900 mm diam x 4400 mm long total, 2200 mm long each, with a 1020 mm thick packed beds with 316LSS Sulzer packing in each section. Bottom section narrows to 800 mm diameter with an 8.2 SqM Falling film evaprator section with 316LSS vertical tubes in this section
Vacuum: Yes. Temperature: 300 °C (572 °F).
Type: Column
Subtype: Packed
Manufacturer: Sulzer
Condition: Used
Material: Stainless Steel 316
Diameter (1): 600 mm (23.6 in)
Length (overall): 8,372 mm (329.6 in)
Rectification Column Unit bolted in 4 sections: Top section is 600 mm x 1130 mm, with a 3 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 600 mm diam x 2040 mm long each, with a 1020 mm thick packed beds with 316LSS Sulzer packing in each section. Bottom section has a 3 SqM Falling film evaporator section with 316LSS vertical tubes in this section
Pressure: 3.2 bar (46.4 psi). Vacuum: Yes. Temperature: 300 °C (572 °F).
Type: Column
Subtype: Packed
Manufacturer: Sulzer
Condition: Used
Material: Stainless Steel 316
Diameter (1): 1,200 mm (47.2 in)
Pressure: 3.2 bar (46.4 psi)
900mm/1200mm (~35 - 47") x 8372 (~27') mm OAH Packed Rectification Column Unit bolted in 4 sections: Top section is 900 mm x 1540 mm, with a 5 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 1200 mm diam x 2040 mm long each, with a 1020 mm thick packed beds with 316LSS Sulzer packing in each section. Bottom section has a 5 SqM Falling film evaporator section with 316LSS vertical tubes in this section
Vacuum: Yes. Temperature: 300 °C (572 °F).
