internal pressure -1/1 bar @ -10/200 deg C (4310ltr),
jacket 6 bar @ -10/200 deg C (480ltr)
1m high top and bottom cones
gear driven by a vari-speed drive
3/50/300/660 volt
Hastelloy vacuum arm, mechanical seal, rotary union joint
top cone with 1-450mm manway, bottom cone with 1-250mm discharge with valve
(1) s/steel plate heat exchanger, 70 kw, pressure 16 bar @ 150 deg C
(1) 8-28 m3/hr c/steel centrifugal pump, 14.5-9.5m hd,

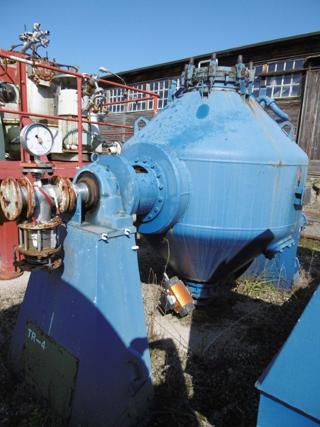

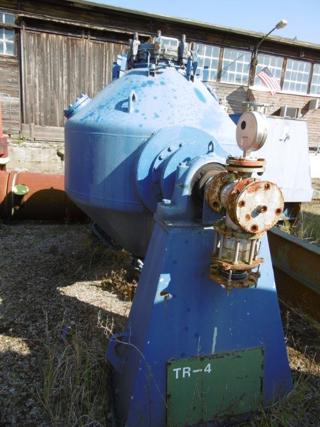

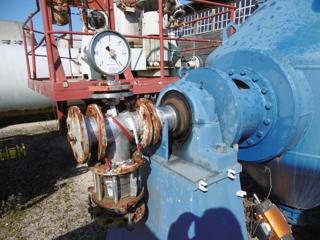

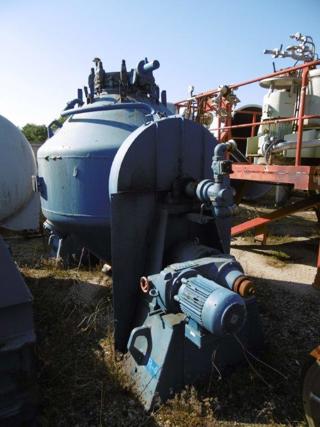

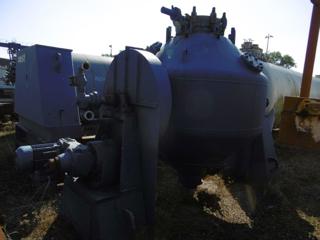

Type: Dryer-Twin Shell & Double Cone
Manufacturer: DeDietrich
Model: SR1600
Condition: Used
Material: Glasslined
Capacity Design: 1.6 m3 (56.5 ft3)
Capacity Operating: 0.8 m3 (28.3 ft3)
1.600 liter
Gear driven with Gear head motor
5,8 kw/50Hz/220-380V/13,3-7,7 kw/1715rpm.
With Busch Huckepack vacuum pump model HO-437-CO007, rated 400 CbM/Hr @ 0.5 bar.
openings: top. 1-450mm, jacket: 3-40mm, bottom: 1-200mm, 1-175mm
Vessel Pressure: -1 bar (-14.5 psi). Vessel Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Full Vacuum: Yes.
Type: Dryer-Twin Shell & Double Cone
Manufacturer: DeDietrich
Model: SR1600
Condition: Used
Material: Glasslined
Capacity Design: 1.6 m3 (56.5 ft3)
Capacity Operating: 0.7 m3 (24.7 ft3)
internal pressure -1 bar @ 200 degrees C
jacket 6 bar @ 200 degrees C
1625 ltr total capacity
Vessel Pressure: -1 bar (-14.5 psi). Vessel Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F).
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Pfaudler
Model: 72-45 CDSB
Condition: Re-glassed
Material: Glasslined
Capacity Design: 3.03 m3 (107 ft3)
Capacity Operating: 1.98 m3 (70 ft3)
45 PSI with FV internal. 6 Ft diameter body.
Bull and pinion gear
230/460 volt gear head motor with electric brake,
5 rpm rotation for a 1.08 rpm bucket rotation
Mechanical seal on shaft
18" carge prort with cover,
Unit includes a SS load platform, with the platform mounted on hydraulic cylinders that lift the pltform out of the way during dryer cycle.
Vessel Pressure: 2.07 bar (30 psi). Vessel Temperature: 343 °C (650 °F). Jacket Pressure: 3.45 bar (50 psi). Jacket Temperature: 177 °C (350 °F).
Type: Dryer-Twin Shell & Double Cone
Manufacturer: Pfaudler
Model: 72-45 CDSB
Condition: Used
Material: Glasslined
Capacity Design: 3.03 m3 (107 ft3)
Capacity Operating: 1.98 m3 (70 ft3)
45 PSI with FV internal. 6 Ft diameter body
Bull and pinion gear
230/460 volt gear head motor with electric brake
5 rpm rotation for a 1.08 rpm bucket rotation.
Mechanical seal on shaft,
Hastelloy 276-C vacuum arm. 18" carge prort with cover
Unit includes a SS load platform, with the platform mounted on hydraulic cylinders that lift the platform out of the way during dryer cycle.
Vessel Pressure: 2.07 bar (30 psi). Vessel Temperature: 343 °C (650 °F). Jacket Pressure: 3.45 bar (50 psi). Jacket Temperature: 177 °C (350 °F). Full Vacuum: Yes.
