scraped surface heat exchanger. Rated 400 psig @ 350 degrees F in the tube, 150 psig @ 350 degrees F in the jacket. Rotor is driven by a 2 HP 3/60/230/460 volt reliance motor with a Reeves vari-drive. Clock-wise rotor rotation. Threaded fittings for the jacket connections. Pump and drive are base mounted.
Type: Votator
Manufacturer: Crepaco
Condition: Used
Material: Stainless Steel 304
Capacity: 1.39 m² (15 ft²)
Diameter: 168.3 mm (6.6 in)

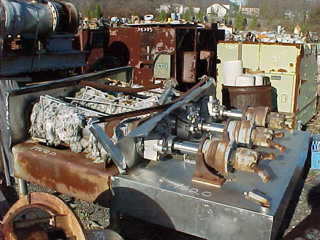

3 tube wiped surface heat exchanger Unit has (1) heating exchanger and (2) cooling exchangers. Heating tube, Nominal 5 Square foot surface area, a CS jacket, Nickel 200 inner tube, 6 5/8" ID x 38" long, National Board # 545, Serial Number S-484. Internal and Jacket rated FV/150 psi @ - 20 to 360 degree F. Volume 1.1 cu ft. rotor is driven by a hydraulic motor Model R2A-168-16T30B, Serial Number H30030-H. 1" threaded inlet & 1 " threaded outlet. First cooling tube Nominal 5 Square foot surface area, a CS jacket, Nickel 200 inner tube, 6 5/8" ID x 38" long, National Board # 5771, Serial Number S-506. Internal and Jacket rated FV/150 psi @ - 20 to 360 deg Fvac. Volume 1.1 cu ft. rotor is driven by a hydraulic motor Model R2A-168-16T30B, Serial Number C840189. 1" threaded inlet & 1 " threaded outlet. Second cooling tube Nominal 5 Square foot surface area, a CS jacket, Nickel 200 inner tube, 6 5/8" ID x 38" long, National Board # 5690, Serial Number S-457. Internal and Jacket rated FV/150 psi @ - 20 to 360 deg Fvac. Volume 1.1 cu ft. rotor is driven by a hydraulic motor Model R2A-253-20T30B, Serial Number C840154. 1" threaded inlet & 1 " threaded outlet. All 3 scraped surface exchangers are mounted on a common skid with legs.
Length: 965.2 mm (38 in).
