scraped surface heat exchanger Internal rotor is Belt driven by 5 HP, 3/60/230/460 volt, 1160 rpm TEFC motor packing glands on the shaft Capacity: 0.84 m² (9 ft²). Orientation: Vertical. Diameter: 228.6 mm (9 in). Length: 1,829 mm (72 in). Drive Power: 3.7 kW (5 HP).
3 tube wiped surface heat exchanger Unit has (1) heating exchanger and (2) cooling exchangers. Heating tube, Nominal 5 Square foot surface area, a CS jacket, Nickel 200 inner tube, 6 5/8" ID x 38" long, National Board # 545, Serial Number S-484. Internal and Jacket rated FV/150 psi @ - 20 to 360 degree F. Volume 1.1 cu ft. rotor is driven by a hydraulic motor Model R2A-168-16T30B, Serial Number H30030-H. 1" threaded inlet & 1 " threaded outlet. First cooling tube Nominal 5 Square foot surface area, a CS jacket, Nickel 200 inner tube, 6 5/8" ID x 38" long, National Board # 5771, Serial Number S-506. Internal and Jacket rated FV/150 psi @ - 20 to 360 deg Fvac. Volume 1.1 cu ft. rotor is driven by a hydraulic motor Model R2A-168-16T30B, Serial Number C840189. 1" threaded inlet & 1 " threaded outlet. Second cooling tube Nominal 5 Square foot surface area, a CS jacket, Nickel 200 inner tube, 6 5/8" ID x 38" long, National Board # 5690, Serial Number S-457. Internal and Jacket rated FV/150 psi @ - 20 to 360 deg Fvac. Volume 1.1 cu ft. rotor is driven by a hydraulic motor Model R2A-253-20T30B, Serial Number C840154. 1" threaded inlet & 1 " threaded outlet. All 3 scraped surface exchangers are mounted on a common skid with legs. Capacity: 1.39 m² (15 ft²). Diameter: 168.3 mm (6.6 in). Length: 965.2 mm (38 in).
scraped surface heat exchanger Internal rotor is Belt driven by 5 HP, 3/60/230/460 volt, 1160 rpm TEFC motor packing glands on the shaft Capacity: 0.84 m² (9 ft²). Orientation: Vertical. Diameter: 228.6 mm (9 in). Length: 1,829 mm (72 in). Drive Power: 3.7 kW (5 HP).

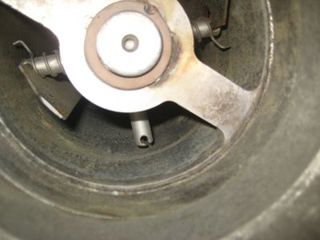

scraped surface heat exchanger 14 square foot surface area. Internal rotor has Inconel scraper blades. with 17" drive pully. no moter with unit - requires a 7.5 HP motor) Packing gland on shaft. Capacity: 0.84 m² (9 ft²). Orientation: Vertical. Diameter: 228.6 mm (9 in). Length: 1,829 mm (72 in). Scraper Design: Inconel blades.
scraped surface heat exchanger. Rated 400 psig @ 350 degrees F in the tube, 150 psig @ 350 degrees F in the jacket. Rotor is driven by a 2 HP 3/60/230/460 volt reliance motor with a Reeves vari-drive. Clock-wise rotor rotation. Threaded fittings for the jacket connections. Pump and drive are base mounted. Capacity: 0.07 m² (0.75 ft²). Orientation: Horizontal. Diameter: 76.2 mm (3 in). Length: 304.8 mm (12 in). Drive Power: 1.49 kW (2 HP).
scraped surface heat exchanger 6x9 Belt driven by 3/60/230/460 volt Internal rotor is Belt driven 3/60/230/460 volt 1160 rpm TEFC motor packing glands on the shaft. NPT inlets and outs for product and jacket Capacity: 0.84 m² (9 ft²). Orientation: Vertical. Diameter: 228.6 mm (9 in). Length: 1,829 mm (72 in). Drive Power: 3.7 kW (5 HP).
