fluidised opposed jet milling (grinding air pressure 6 barg, nozzle 0 16mm), 1250 dm3 grinding bin volume, 80 mbar permissible operating pressure in grinding bin, max operating pressure in grinding bin, 5- nozzles, nozzle diameters 14mm, 16mm, 18mm, classifier has 3-wheels, each wheel with 60 vanes wide pitch, narrow pitch 120 vanes, max wheel speed 4000 rpm each whees driven by 5.12 - 16 kw,3/50/415 volt, 940/2940 rpm motor, (1) 1100 liter carbon steel feed hopper weld dished top, weld coned bottom, bottom outlet with 150mm diameter carbon steel screw conveyor, 15.1 rpm speed,

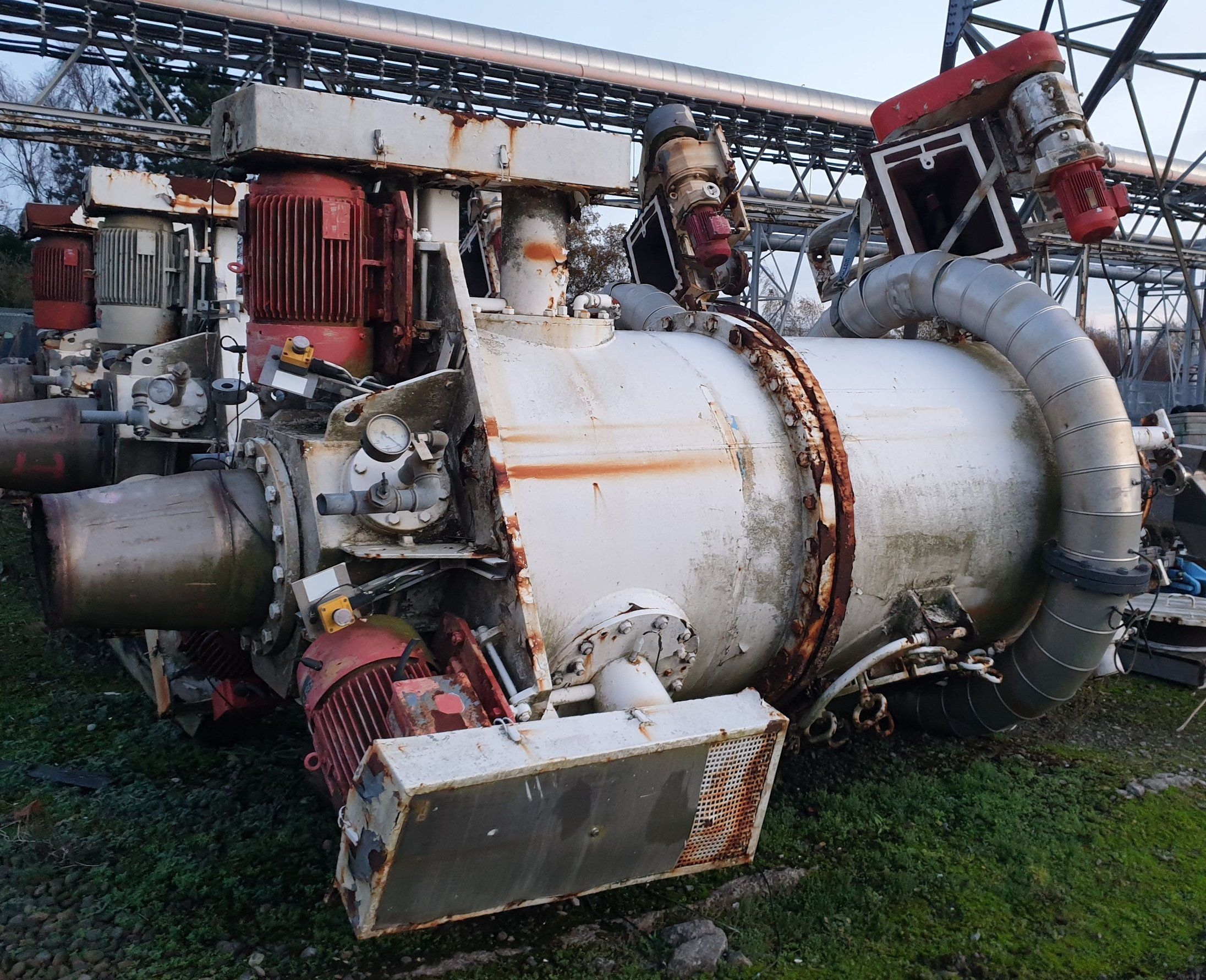

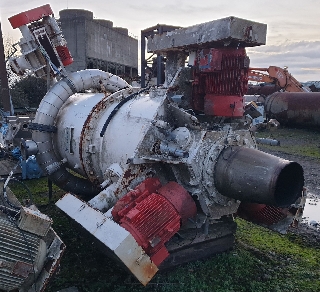

Type: Pulverizer
Subtype: Jet
Manufacturer: Alpine (Hosokawa)
Model: 800 AFG-1
Condition: Used
Material: Carbon Steel
Capacity: 1,250 m3 (44,143 ft3)
Outlet Discharge Diameter: 400 mm (15.7 in)
fluidised opposed jet milling (grinding air pressure 6 barg, nozzle 0 16mm) 1250 dm3 grinding bin volume, 80 mbar permissible operating pressure in grinding bin, max operating pressure in grinding bin, 5- nozzles, nozzle diameters 14mm, 16mm, 18mm, classifier has 3-wheels, each wheel with 60 vanes wide pitch, narrow pitch 120 vanes, max wheel speed 4000 rpm each whees driven by 5.12 - 16 kw, 3/50/415 volt, 940/2940 rpm motor, (1) 1100 liter carbon steel feed hopper weld dished top, weld coned bottom, bottom outlet with 150mm diameter carbon steel screw conveyor, 15.1 rpm speed,
Inlet Diameter: 16 mm (0.63 in). Motor Power (Design): 16 kW (21.5 HP). Orientation: Vertical. Pressure: 0.09 bar (1.31 psi). Temperature: 50 °C (122 °F). Air Flow Rate: 5,200 m3/h (3,061 CFM). Clarifier: Yes.
Type: Pulverizer
Subtype: Jet
Manufacturer: Alpine (Hosokawa)
Model: 800 AFG-1
Condition: Used
Material: Carbon Steel
Capacity: 1,250 m3 (44,143 ft3)
Outlet Discharge Diameter: 400 mm (15.7 in)
fluidised opposed jet milling (grinding air pressure 6 barg, nozzle 0 16mm) 1250 dm3 grinding bin volume, 80 mbar permissible operating pressure in grinding bin, max operating pressure in grinding bin, 5- nozzles, nozzle diameters 14mm, 16mm, 18mm, classifier has 3-wheels, each wheel with 60 vanes wide pitch, narrow pitch 120 vanes, max wheel speed 4000 rpm, each whees driven by 5.12 - 16 kw, 3/50/415 volt, 940/2940 rpm motor, (1) 1100 liter carbon steel feed hopper weld dished top, weld coned bottom, bottom outlet with 150mm diameter carbon steel screw conveyor, 15.1 rpm speed,
Inlet Diameter: 16 mm (0.63 in). Motor Power (Design): 16 kW (21.5 HP). Orientation: Vertical. Pressure: 0.09 bar (1.31 psi). Temperature: 50 °C (122 °F). Air Flow Rate: 5,200 m3/h (3,061 CFM). Clarifier: Yes.
