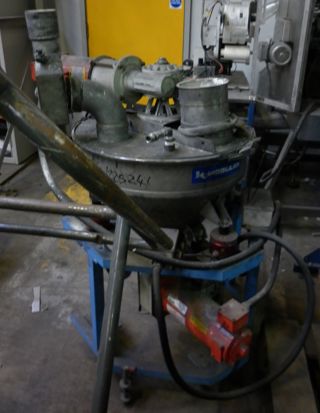

agitated weigh feed hopper clamped flat top, weld coned bottom agitator driven by approx 1 HP, 3/50/230 volt, 1715 rpm motor via SEW-Eurodrive gearbox, right angled design drive, 304 stainless steel gate type agitator, bottom outlet with a screw discharge conveyor, driven by a 1.5 hp, 3/50/180 volt motor which are mounted on a carbon steel frame with wheels
Type: Bin
Manufacturer: K-Tron
Model: K-module
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.4 m3 (14.2 ft3)
Orientation: Vertical
agitated weigh feed hopper, clamped flat top, weld coned bottom, agitator driven by 1 HP, 3/50/230 volt, 1715 rpm motor via 195:1 ratio SEW-Eurodrive gearbox, right angled design drive, 304 stainless steel gate type agitator, which are mounted on a carbon steel frame
Width: 1,000 mm (39.4 in). Cone Length: 500 mm (19.7 in). Length: 350 mm (13.8 in). Support Type: Lugs.
Type: Bin
Manufacturer: K-Tron
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.011 m3 (0.39 ft3)
Width: 1,000 mm (39.4 in)
agitated weigh feed hopper clamped flat top, weld coned bottom agitator driven by approximately a 1 HP, 3/50/230 volt, 1715 rpm motor via 195:1 ratio SEW-Eurodrive gearbox, right angled design drive, 304 stainless steel gate type agitator, bottom outlet with a screw discharge conveyor, driven by a 1.5 hp, 3/50/180 volt motor, which are mounted on a carbon steel frame with wheels
Cone Length: 540 mm (21.3 in). Length: 370 mm (14.6 in). Support Type: Lugs.
Type: Bin
Manufacturer: K-Tron
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.002 m3 (0.08 ft3)
Width: 600 mm (23.6 in)
clamped flat top, weld coned bottom agitator driven by 5 HP, 3/50/230 volt, 1750 rpm motor via SEW-Eurodrive gearbox, right angled design drive, 304 stainless steel gate type agitator, bottom outlet with a screw discharge conveyor, driven by a 0.5 hp, 3/50/180 volt motor, which are mounted on a carbon steel frame with wheels
Cone Length: 580 mm (22.8 in). Length: 120 mm (4.7 in). Support Type: Lugs.
Type: Bin
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Capacity Design: 0.3 m3 (10.6 ft3)
Orientation: Vertical
hopper welded top, feed has s/steel rotary lock valve driven by 2-speed motor, 0.5 kw, 3/50/380-420/220-240 volt, 1400 rpm or 0.5kw, 3/60/440-480/250-280 volt, 1690 rpm, openings top 1-200mm (feed), 1-50mm, side 1-50mm, 1-25mm (sensor), bottom 1-250mm, with insulation and cladding
Width: 680 mm (26.8 in). Cone Length: 1,100 mm (43.3 in). Length: 300 mm (11.8 in). Support Type: Lugs.
