Littleford plow Mixer/Dryer system. National Board Serial number 12025 Rated for the following: Shell, Full Vacuum internal gear reducer Manufactured by Falk, model # 4207509, rated for 9.492:1 ratio Hostile Environment High Efficency AC but no chopper is installed with this blender. With mixer dryer is a vacuum system manufactured by Travani Pumps. Serial # A5934, Type: PLM3315C-A3. Vacuum system includes a water seal vacuum pump, controls, knock out pot and cooler for seal water.

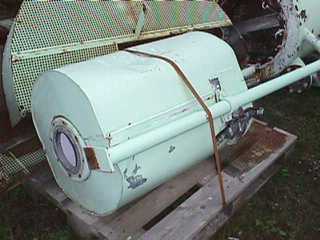

Type: Dryer-Rotary Vacuum
Manufacturer: Littleford Bros, Inc
Model: FKM-600-D
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.62 m3 (22 ft3)
Capacity Working: 0.37 m3 (13 ft3)
Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Main shaft drive 10 Hp with gear reducer for output rpm of 65. Center bottom discharge 15.5" ID. No dust collector with unit.
Diameter: 939.8 mm (37 in). Length: 2,540 mm (100 in). Height: 4,064 mm (160 in). Temperature: 121.1 °C (250 °F). Pressure: 1.03 bar (14.9 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 7.4 m² (80 ft²). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Number of Choppers: 2. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).

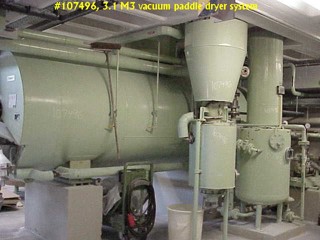

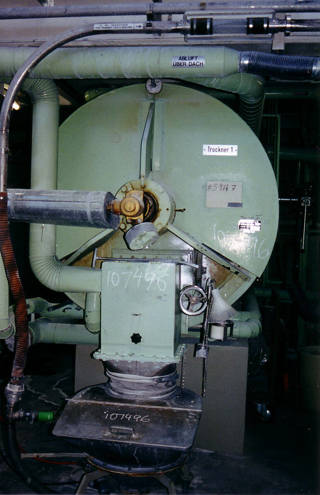

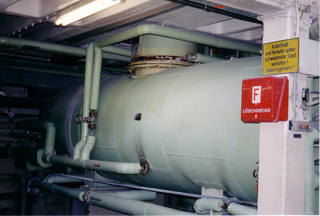

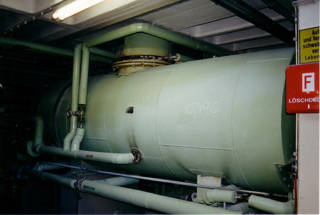

Type: Dryer-Rotary Vacuum
Manufacturer: Haas Vakuum Technik (Germany)
Model: 211204
Condition: Used
Material: Stainless Steel 321
Capacity Design: 4.7 m3 (166 ft3)
Capacity Working: 3.1 m3 (109.5 ft3)
1.4541 (321SS) vacuum paddle jacket dryer system TUV standards Dryer rated full vacuum internal shell 5 bar @ 250 degree C shaft and paddles 5 bar @ 250 degree C heads 5 bar @ 250 degree C, dome 5 bar @ 250 degree C. Shaft 440mm diameter 5.0 KW, 3/50/220/380 volt Cored for heating/cooling with (16) cored paddles @ 1195mm diameter. Dryer has end discharge 400mm x 400mm with discharge valve assembly gear driven
Diameter: 1,250 mm (49.2 in). Length: 4,000 mm (157.5 in). Height: 1,750 mm (68.9 in). Temperature: 250 °C (482 °F). Pressure: 5 bar (72.5 psi). Rated for Vacuum: Yes. Heat Transfer Surface Area: 15.6 m² (168 ft²). Shaft Cored and National Board Stamped: Yes. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 5 bar (72.5 psi). Jacket Temperature: 250 °C (482 °F).
