product contact Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Center bottom discharge 15.5" ID.

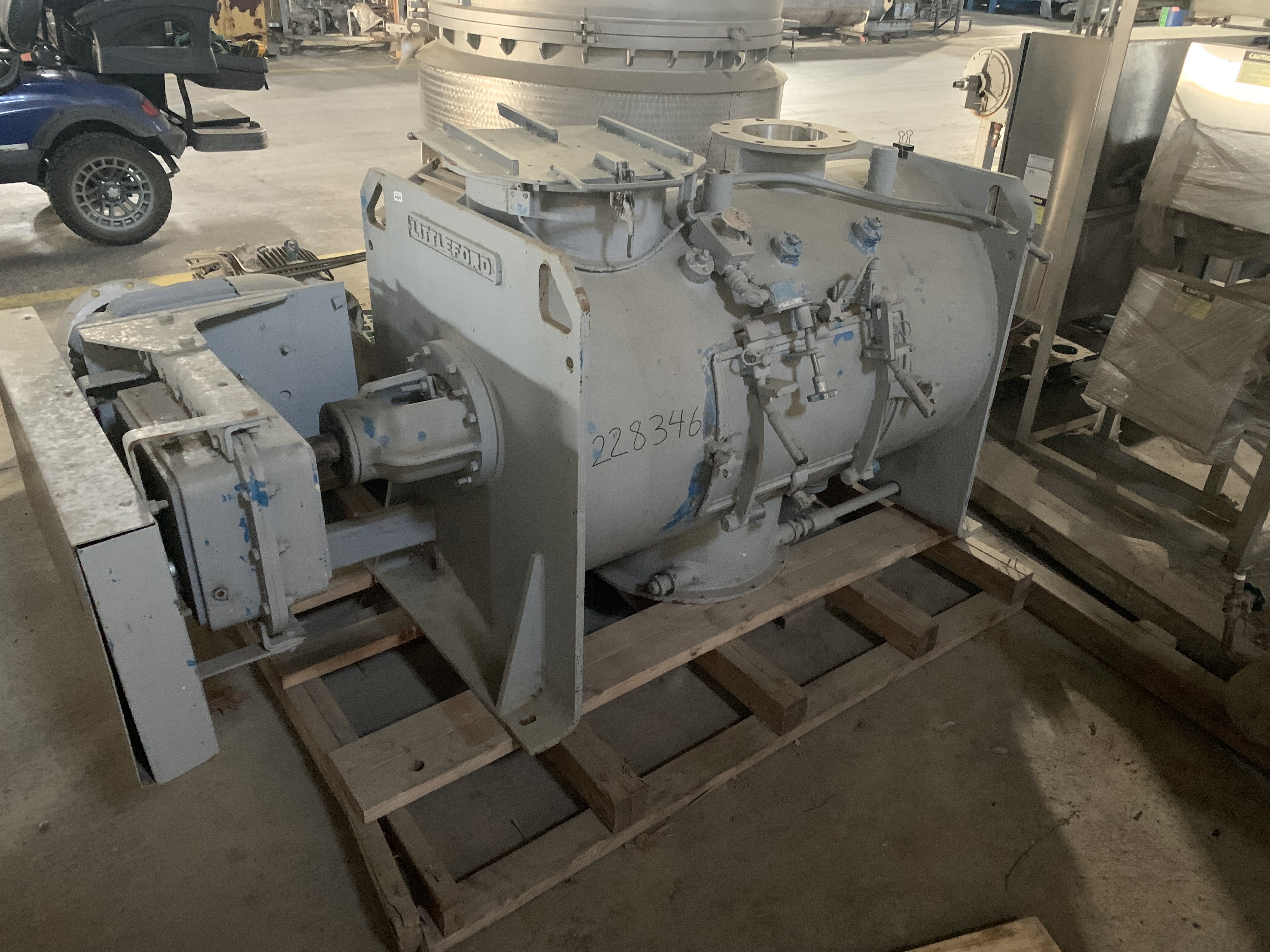

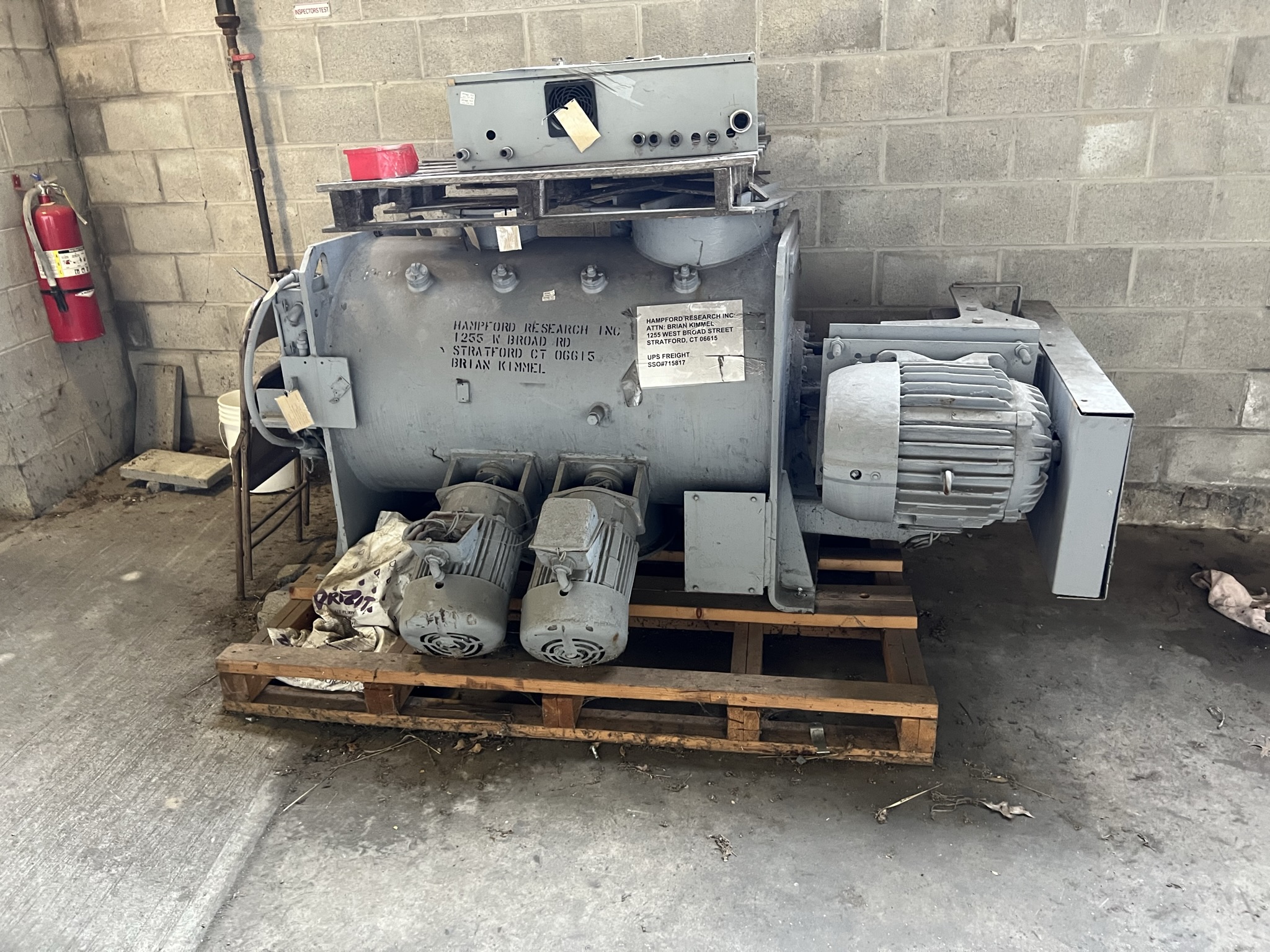

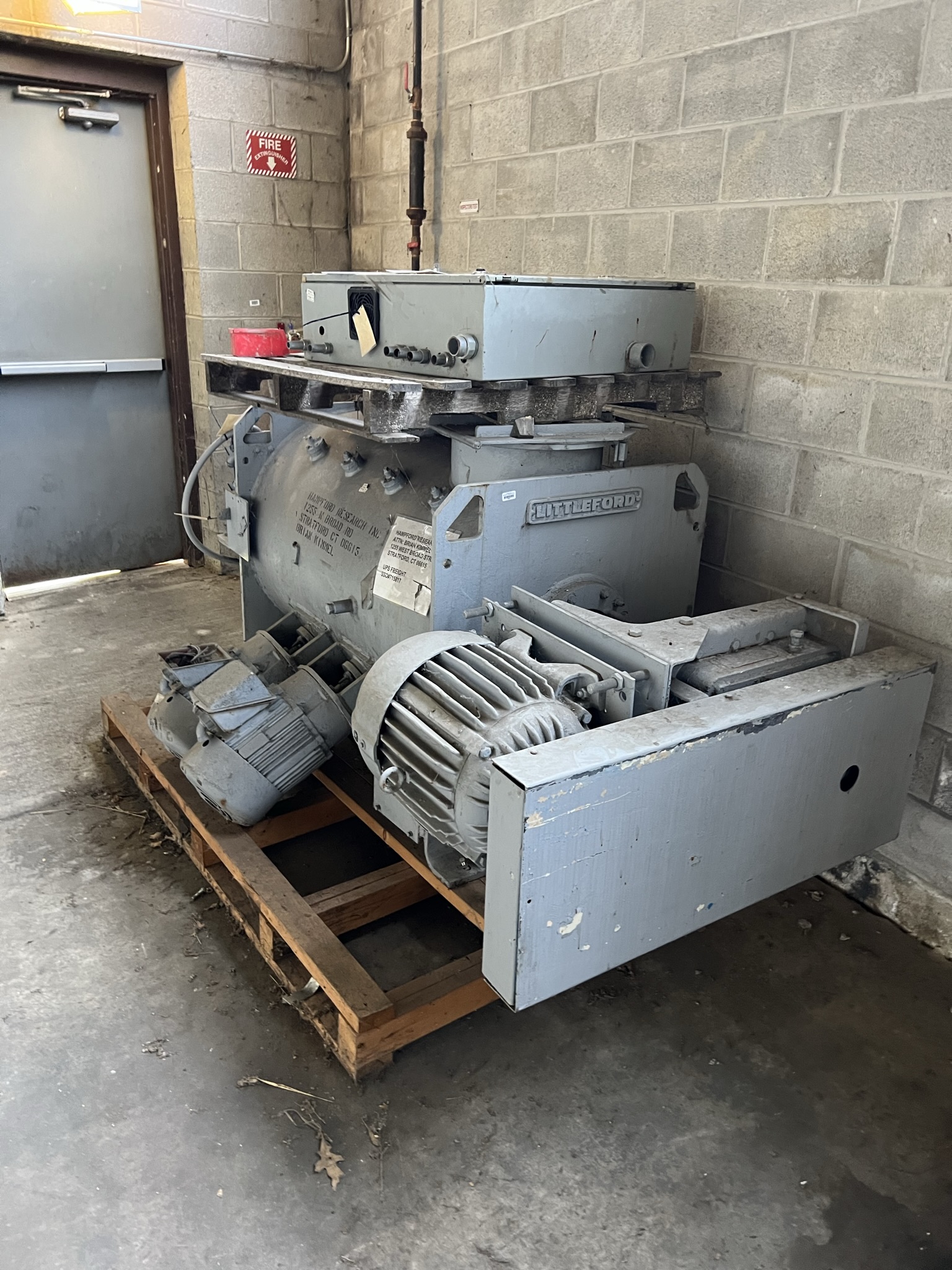

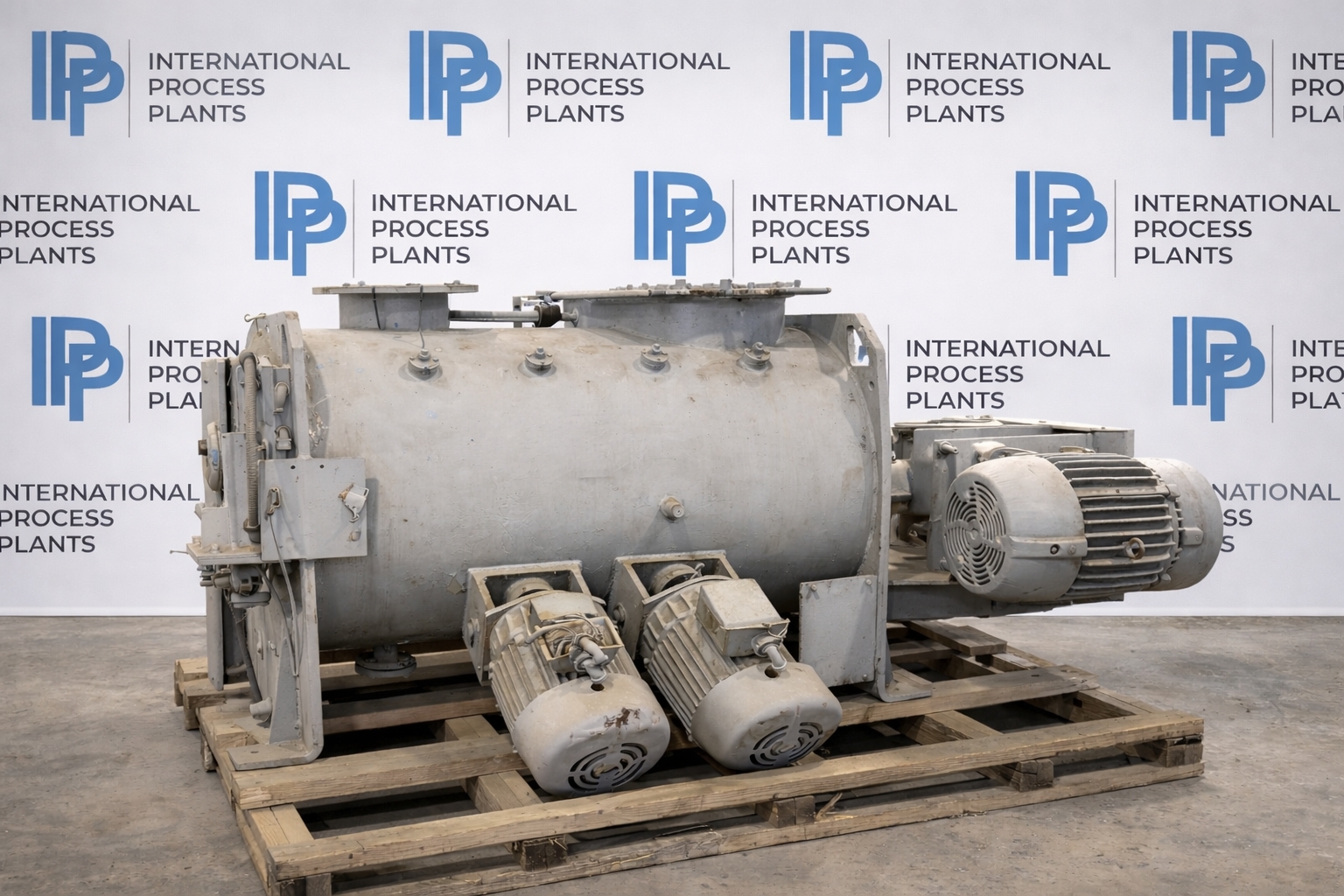

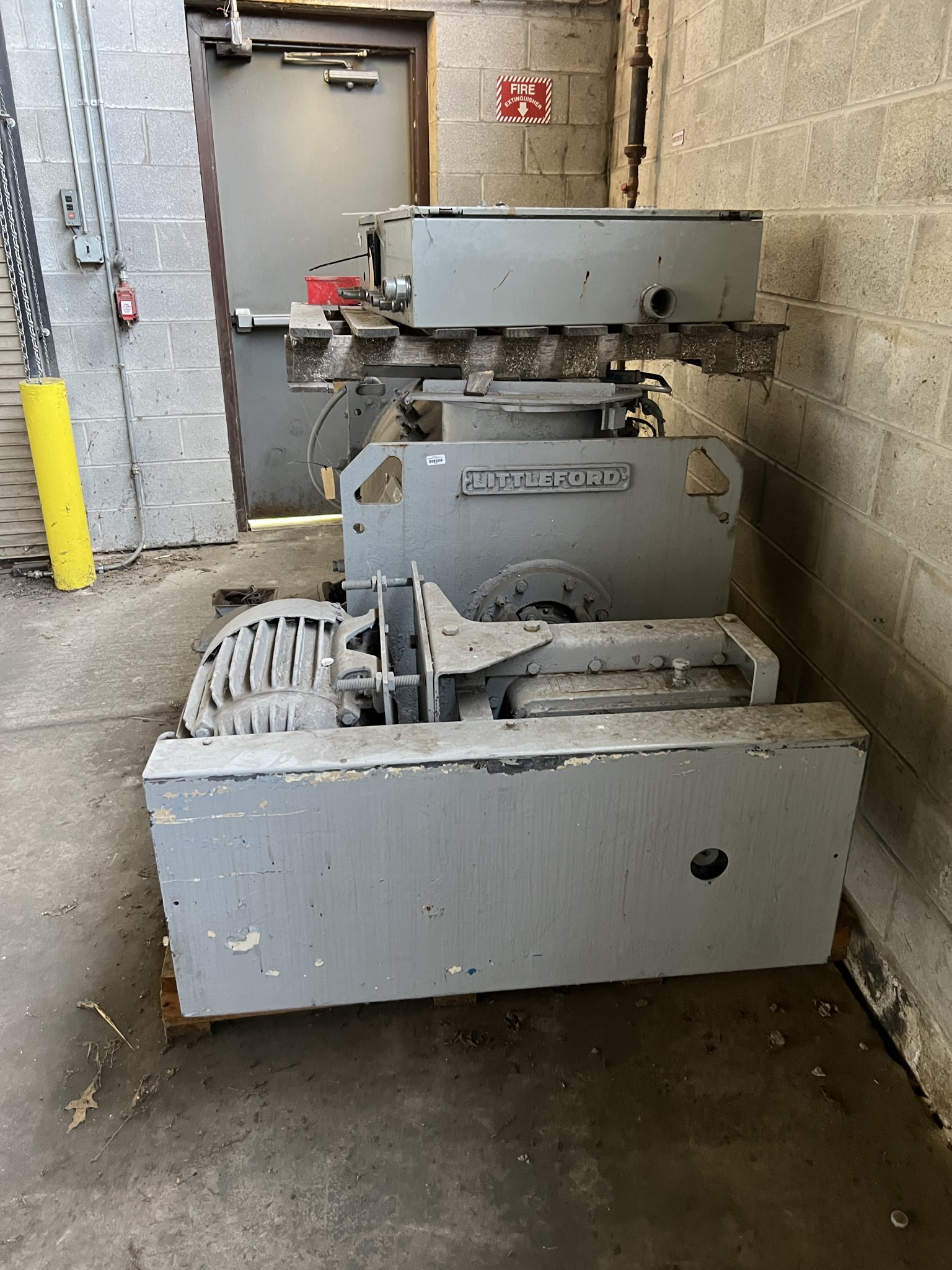

Type: Dryer-Rotary Vacuum
Manufacturer: Littleford
Model: FKM-600-D
Condition: Used
Material: Stainless Steel 304
Capacity Design: 0.62 m3 (22 ft3)
Capacity Working: 0.37 m3 (13 ft3)
Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Main shaft drive 10 Hp with gear reducer for output rpm of 65. Center bottom discharge 15.5" ID. No dust collector with unit.
Diameter: 939.8 mm (37 in). Length: 2,540 mm (100 in). Height: 4,064 mm (160 in). Temperature: 121.1 °C (250 °F). Pressure: 1.03 bar (14.9 psi). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Number of Choppers: 2. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).

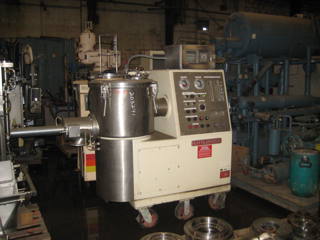

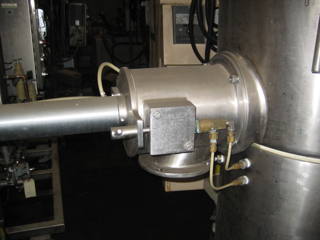

Type: Dryer-Rotary Vacuum
Manufacturer: Littleford Bros, Inc
Model: FM-130-D
Condition: Used
Material: Stainless Steel 321
Capacity Design: 0.17 m3 (6 ft3)
Capacity Working: 0.13 m3 (4.6 ft3)

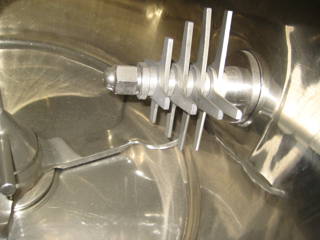

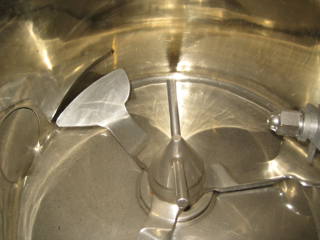

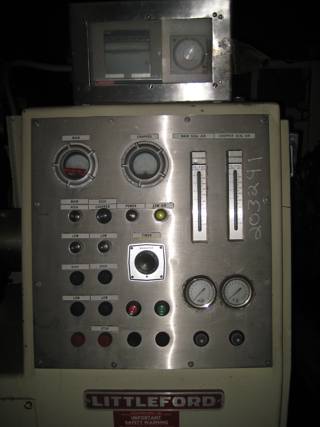

Littleford plow Mixer/Dryer system. National Board Serial number 12025 Rated for the following: Shell, Full Vacuum internal gear reducer Manufactured by Falk, model # 4207509, rated for 9.492:1 ratio Hostile Environment High Efficency AC but no chopper is installed with this blender. With mixer dryer is a vacuum system manufactured by Travani Pumps. Serial # A5934, Type: PLM3315C-A3. Vacuum system includes a water seal vacuum pump, controls, knock out pot and cooler for seal water.
Diameter: 495.3 mm (19.5 in). Length: 660.4 mm (26 in). Height: 2,388 mm (94 in). Orientation: Vertical. Operational Mode: Batch. Number of Choppers: 1. Dust Collection: Yes. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Blaw Knox
Condition: Used
Material: Stainless Steel 304
Capacity Design: 3.5 m3 (125 ft3)
Capacity Working: 2.3 m3 (82 ft3)
4' diameter x 10' long chamber. as 24" cored shaft with paddles and removable scrapers. No drive available. Unit has chain guards for drive. Top openings one 12", one 10 ". Jacket openings are 2" NPT. 12" bottom discharge.
Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Height: 2,134 mm (84 in). Agitation Seal Type: Packing. Jacket Material: Carbon Steel.
Type: Dryer-Rotary Vacuum
Manufacturer: American Process Systems
Model: C060/6660
Condition: Used
Material: Stainless Steel 304
Capacity Design: 2.8 m3 (100 ft3)
Capacity Working: 1.7 m3 (60 ft3)
cylindrical design Vessel designed for 14.9 psi and full vacuum rated at 29.92” Hg. This machine is designed for continues operation but was previously used in a batch process. The jacket is two zone style with 3” half pipe. The manufacturer indicated this machine is designed for sanitary applications. The agitator shaft is not cored for heating, 6” diameter 304 SS, with 12, ¾” thick posts and paddles. Paddles are 12” long x 6.5” wide. Agitator clearance is 1/8” nominal at the lowest point. Rotation of the agitator is counter clockwise at 25 rpm. Agitator is driven by a right angle geardrive manufactured by SEW Eurodrive with a 40 Hp AC motor. Model # KAF157DV200L4. The geardrive has a 70.38:1 ratio rotating the output shaft at 25 rpm. The agitator is sealed by two Woodex, fully spit Meco mechanical seals, and rides on two Dodge expansion type flange bearings. Top connections are one 24” flanged nozzle for vacuum filter, one 24” manway, and one 16” loading flange. Discharge nozzle is 8” flanged. Shell is wrapped with 14 Gauge 304 SS, covering 2” thick Ceramawol insulation designed to limit the dryers exterior temperature to <140 degrees F. The baghouse filter is 304 SS, and is 32” in diameter x 62” high. The bottom of the dust collector bolts directly to the dryer by a flange, and the top has a bolted 28” diameter man way for filter changes.
Diameter: 1,118 mm (44 in). Length: 3,048 mm (120 in). Height: 2,134 mm (84 in). Pressure: 1.03 bar (14.9 psi). Orientation: Horizontal. Operational Mode: Continuous. Agitation: Yes. Agitation Seal Type: Mechanical. Jacket Material: Stainless Steel 304. Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 218.3 °C (425 °F). Jacket Type: Half Pipe/Limpet.
