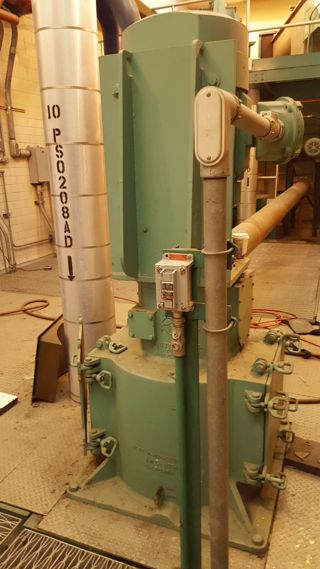

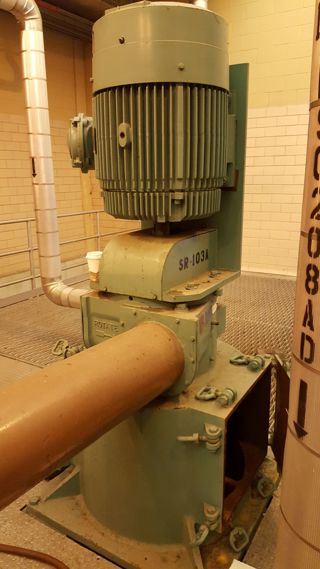

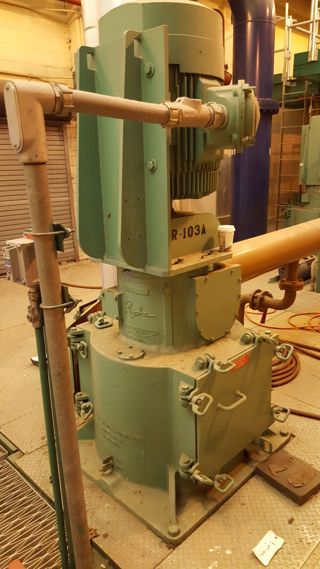

Unused Carbon Steel Rietz RD-18-P32 Granulator/Disintegrator Pulverizer - IPP# 225386

Type: Pulverizer

Subtype: Granulator/Disintegrator

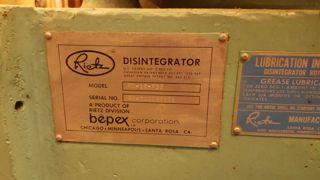

Manufacturer: Rietz

Model: RD-18-P32

Condition: Unused

Material: Carbon Steel

Motor Power (Design): 74.6 kW (100 HP)

Orientation: Vertical

construction with 360 degree SS screen.
Designed for industrial duty, for mixing and depluming of slurries, pastes, liquids, and resins and shredding Unit has vertical shaft with horizontal rotating knives, 360 degrees screen discharge.

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Rietz

Model: R12 (8) K222

Condition: Used

Material: Stainless Steel 304

Capacity: 100 m3 (3,531 ft3)

Outlet Discharge Diameter: 150 mm (5.9 in)

• Inline heavy duty, operating pressure 10.34 bar @ 366 degrees F,
• Design to reduce PVC lumps from 500mm to 3mm
• Operating throughput 100 m3/hr
• 304 stainless steel internal hammers, 304 stainless steel perforated screen with 3mm diameter perforations
• screen is supported by a 304 stainless steel perforated basket with 12.5mm diameter perforations,
• EEX de II CT motor,
• John Crane double mechanical seal

Inlet Diameter: 200 mm (7.9 in). Motor Power (Design): 45 kW (60.3 HP). Speed (RPM): 3,000. Orientation: Vertical. Pressure: 10.3 bar (150 psi). Temperature: 185 °C (365 °F).

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Rietz

Model: R12 (8) K222

Condition: Used

Material: Stainless Steel 304

Capacity: 100 m3 (3,531 ft3)

Outlet Discharge Diameter: 150 mm (5.9 in)

• Inline heavy duty, operating pressure 10.34 bar @ 366 degrees F,
• Design to reduce PVC lumps from 500mm to 3mm
• Operating throughput 100 m3/hr
• 304 stainless steel internal hammers, 304 stainless steel perforated screen with 3mm diameter perforations
• screen is supported by a 304 stainless steel perforated basket with 12.5mm diameter perforations,
• EEX de II CT motor,
• John Crane double mechanical seal

Inlet Diameter: 200 mm (7.9 in). Motor Power (Design): 45 kW (60.3 HP). Speed (RPM): 3,000. Orientation: Vertical. Pressure: 10.3 bar (150 psi). Temperature: 185 °C (365 °F).

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Raymond

Model: 50

Condition: Used

Material: Carbon Steel

Outlet Discharge Diameter: 279.4 mm (11 in)

Inlet Diameter: 406.4 mm (16 in)

bare mill only. (no drive). Air flow and power requirement are 6000 acfm,
Fan power 40 Hp., Mill power minimum 50 HP, maximum 100 HP. The Imp mill is designed for low cost, dependable, grinding for fine to medium grinds.

Motor Power (Design): 74.6 kW (100 HP). Orientation: Horizontal.
