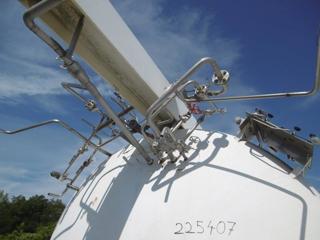

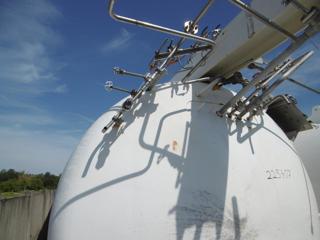

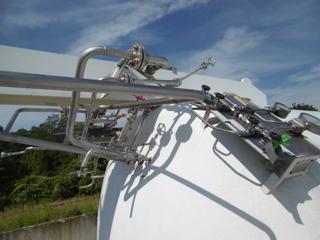

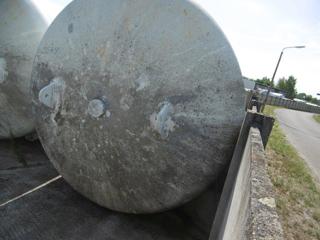

Carbon Steel Messer Grisheim Gmbh Tank - IPP# 225407

Type: Tank

Manufacturer: Messer Grisheim Gmbh

Condition: Used

Capacity (Design): 59,043 L (15,598 gallons)

Orientation: Vertical

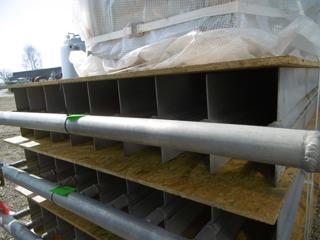

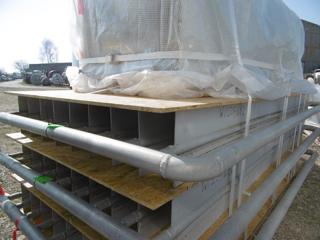

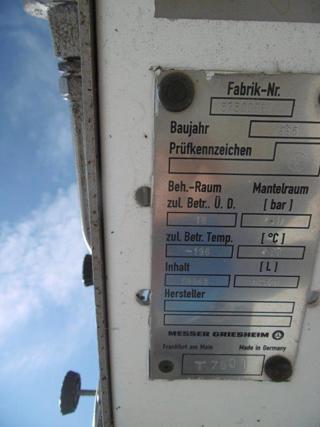

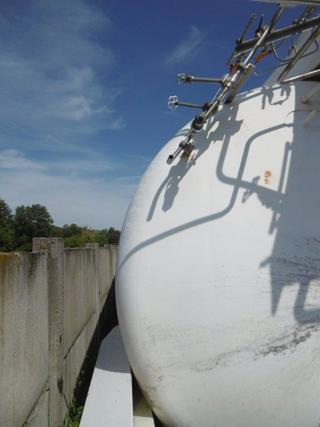

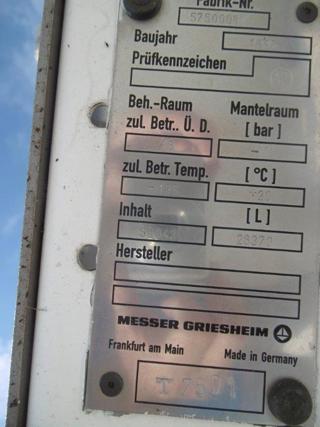

1.5662 (X8Ni9) 9% nickel alloy double walled vertical Cryogenic nitrogen storage tank fabrik #575-0010 inner tank is 59043 liter 1.5662 (X8Ni9) 9% nickel alloy steel (specially designed for cryogenic operations), the space between the inner/outer tank is 26370 liter, outertank is carbon steel 2.9m diameter x 13.7m high, pressure rated for full vacuum 12mm wall thickness, both weld dished top and bottom bottom dish has a thermosyphon, tank has a stainless steel 18.5 liter air heater mounted under the bottom dish, manufactured by Messer Grisheim Gmbh, fabrik #V14168, 9-tubes with blades,

Diameter: 2,500 mm (98.4 in). Straight-side Length: 12,700 mm (500 in). Internal Pressure: 18 bar (261.1 psi). Internal Temperature: -196 °C (-320.8 °F). Jacket Type: Standard. Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 196 °C (384.8 °F). Support: Legs.

Type: Tank

Manufacturer: Messer Grisheim Gmbh

Condition: Used

Capacity (Design): 59,043 L (15,598 gallons)

Orientation: Vertical

1.5662 (X8Ni9) 9% nickel alloy double walled vertical Cryogenic nitrogen storage tank fabrik #575-0009 nickel alloy steel (specially designed for cryogenic operations) the space between the inner/outer tank is 26370 liter outertank is carbon steel 2.9m diameter x 13.7m high, pressure rated for full vacuum, 12mm wall thickness, bottom dish has a thermosyphon manufactured by Messer Grisheim Gmbh, fabrik #V14167, pressure rated 20 bar @ -196 degrees C, 9-tubes with blades,

Diameter: 2,500 mm (98.4 in). Straight-side Length: 12,700 mm (500 in). Internal Pressure: 18 bar (261.1 psi). Internal Temperature: -196 °C (-320.8 °F). Support: Legs.

Type: Tank

Manufacturer: Struthers Wells Inc.

Condition: Used

Material: Carbon Steel

Capacity (Design): 72,434 L (19,135 gallons)

Orientation: Horizontal

• Function: Ammonia converter
• Head thickness: 3.125 inches
• Additional feature: Haldor Topsoe Basket
• Built to ASME code, but not stamped. State Special.

Diameter: 2,134 mm (84 in). Straight-side Length: 22,860 mm (900 in). Internal Pressure: 179.3 bar (2,600 psi). Internal Temperature: 246.1 °C (475 °F). Support: Lugs.

Type: Tank

Manufacturer: Delta Southwestern

Condition: Used

Material: Carbon Steel

Capacity (Design): 34,069 L (9,000 gallons)

Orientation: Vertical

• Built to ASME code , not stamped, State Special

Diameter: 3,962 mm (156 in). Straight-side Length: 1,524 mm (60 in). Internal Pressure: 27.9 bar (405 psi). Internal Temperature: 468.3 °C (875 °F). Support: Lugs.
