Stainless Steel 316 Stokes Dryer-Shelf - IPP# 225495

Type: Dryer-Shelf

Manufacturer: Stokes

Model: 600-540

Condition: Used

Material: Carbon Steel

Orientation: Vertical

Temperature: 190.6 °C (375 °F)

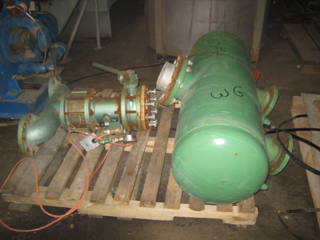

• Hot water generator for a Stokes shelf dryer. Size 2" x 1" x 5" A 5 sq.ft. carbon steel, Bell and Gosset heat exchanger, driven by a 7.5 hp. Baldor electric motor, at 3500 rpm. Serial # 92X80103-10. . NB # 29680. Rated for shell 150 psi at 375 degrees F, tubes 150 psi at 375 degrees F.
• With Taylor chart recorders and explosion proof switches.
• Requires connections for Steam, 40 psi at 1" feed line, Water 2" inlet and outlet lines.

Type: Dryer-Shelf

Manufacturer: Stokes

Model: 338-J-16

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 18.2 m² (195.5 ft²)

Vacuum Rated: Yes

• Vacuum shelf dryer chamber only. Hinged door w/quick opening bolts. 50 psi shelf working pressure, full vacuum internal. (16) shelf capacity (7 shelves removed),set up for drum and shelf drying. Lot #P65883.

Number of Shelves: 16. Shelf Pressure: 3.4 bar (50 psi).

Type: Dryer-Shelf

Manufacturer: Hering

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Vacuum Rated: Yes

Vacuum Shelf Dryer, electrically heated. Shelves with 19 pans, 990mmx490mmx50mm, chamber volumn is 1,400 liters, Vacuum Shelf Dryer by 220V 3/ PE 50Hz, (1) control cabinet.

Number of Shelves: 10. Shelf Length: 1,000 mm (39.4 in). Shelf Width: 1,000 mm (39.4 in). Shelf Pressure: -0.97 bar (-14 psi). Shelf Temperature: 200 °C (392 °F). Temperature: 200 °C (392 °F). Number of Pans: 19. Pan Capacity: 0.46 m3 (16.2 ft3).

Type: Dryer-Shelf

Manufacturer: Leybold

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 9.8 m² (105 ft²)

Number of Shelves: 9

vacuum shelf dryer. shelves cored for steam heating, Distance between shelves 3". Hinged front door with swing bolt closure. Also 2-3" sight glasses. Unit full insulation. Openings: vac 1-4", 2-2"; steam 4-3/4".

Shelf Length: 1,000 mm (40 in). Shelf Width: 1,050 mm (42 in). Orientation: Vertical. Number of Pans: 0.
