For precise batch drying of powders, granules, and solid materials, shelf dryers offer a flexible, efficient solution. With more than 47 years of experience, IPP provides one of the world’s largest inventories of ready-to-ship process equipment. Our inventory spans 20 complete plant sites and includes over 15,000 pieces of equipment, ensuring that manufacturers can find the right used shelf dryer to meet their production needs while controlling costs.
Shelf dryers consist of multiple heated shelves within a sealed chamber, where product trays are placed directly on each shelf. Heat transfers from the shelves into the product, gently evaporating moisture. These dryers can operate under atmospheric or vacuum conditions, making them suitable for both routine drying and low-temperature drying of heat-sensitive materials. Shelf dryers are widely used in pharmaceutical manufacturing, fine chemicals processing, and specialty food production.
Shelf dryers are available in a variety of materials to meet specific process and regulatory requirements:
Learn more about batch drying technology in this detailed guide from Process Heating.
Search the IMS inventory or contact IPP’s equipment team to secure a shelf dryer for your process. With immediate availability, IPP helps manufacturers avoid costly lead times while maintaining process flexibility and product quality.
Read more: The market for second-hand process plant and equipment is thriving
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Lined
Heat Transfer Surface Area: 47.3 m² (509 ft²)
Vacuum Rated: Yes

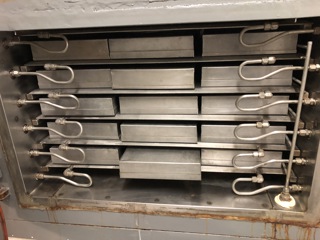

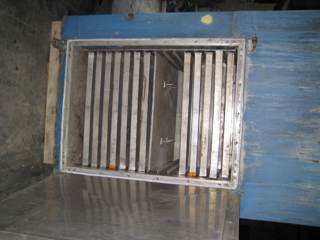

Devine vinyl coated shelf dryer Shelf temperature estimated ~212° F Unit has (16) coated cored shelves, 58" wide x 79" long on 3" spacing. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Number of Shelves: 16. Shelf Length: 2,007 mm (79 in). Shelf Width: 1,473 mm (58 in). Shelf Pressure: 2.1 bar (30 psi). Temperature: 100 °C (212 °F).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Lined
Heat Transfer Surface Area: 47.3 m² (509 ft²)
Vacuum Rated: Yes
Devine vinyl coated shelf dryer
Shelf temperature estimated ~212° F
58" wide x 79" long on 3" spacing.

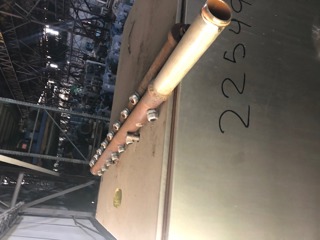

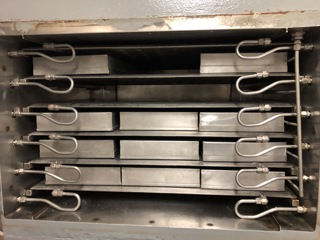

each shelf designed for liquid heat though a common manifold. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, chamber bolts together in center.

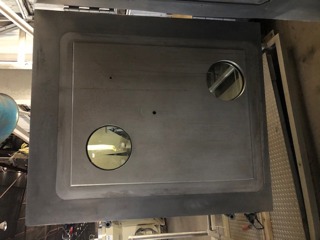

Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Number of Shelves: 16. Shelf Length: 2,007 mm (79 in). Shelf Width: 1,473 mm (58 in). Shelf Pressure: 2.1 bar (30 psi). Temperature: 100 °C (212 °F).
Type: Dryer-Shelf
Manufacturer: Italvacuum
Model: E0.5
Condition: Used
Material: Hastelloy - C22
Heat Transfer Surface Area: 4 m² (43.1 ft²)
Vacuum Rated: Yes
approx 4 square meter useful surface area,
approx 600 liter volume,
built into wall design,
hinged front door,
Number of Shelves: 8. Shelf Length: 1,000 mm (39.4 in). Shelf Width: 600 mm (23.6 in). Chamber Height: 820 mm (32.3 in). Chamber Width: 650 mm (25.6 in). Chamber Length: 1,025 mm (40.4 in).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Lined
Heat Transfer Surface Area: 47.3 m² (509 ft²)
Vacuum Rated: Yes
vinyl coated shelf dryer. Shelf temperature estimated ~212° F 58" wide x 79" long on 3" spacing. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, Chamber bolts together in center. Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Number of Shelves: 16. Shelf Length: 2,007 mm (79 in). Shelf Width: 1,473 mm (58 in). Shelf Pressure: 2.1 bar (30 psi). Temperature: 100 °C (212 °F).
