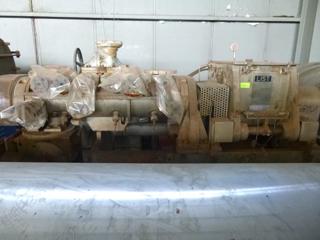

Dryer-Rotary Vacuum List (Switzerland) 10'453 Titanium - IPP# 229015

vacuum paddle dryer with dust filter and heated shaft Order number: 14.-235/24158/00000/2-2871/53 Internal pressure rating -1/+0,5 bar @ 151 degrees C operating temperature (total volume 11.000 liter) straight side jacket pressure rated 6 bar @ 151 degrees C (volume 340 liter) Serpentine (2) 1/2 pipe coil jackets each coil rated 6 bar @ 151 degrees C (volume 50 liter); heated shaft rated 6 bar @ 151 degrees C ( volume 1120 liter) (1) bolted for shaft removal; with 3 zone jacket on straight side and 1/2 pipe coil jacket on each head Agitator shaft is 600 mm diameter and has has paddle agitators with flat blades, mechanical seals, and a rotary joint on one end for heating the shaft. Driven through a shaft mounted gear reducer Bag filter mounted on top of dryer housing. Openings include: Top - (1) 1000 mm diameter opening for bag filter, (1) 600 mm feed opening, (1) 500 mm manway with cover; center bottom outlet, 340 mm ID / 420 mm OD With Titanium Grade 2 vertical jacketed dust filter, 10 m3 (353 cubic foot) and 18 cages for filters/ socks. 1000 mm diameter x 2400 mm high, with assist top cover for sock replacement
