New Stainless Steel 316L Gale Process Solutions Batch-Type Agitated Reactor - IPP# 230382

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 15,142 L (4,000 gallons)

Internal Pressure: 10 bar (145 psi)

UNUSED

Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish. ASME NB rated, and "U" stamped.

welded dish heads (2:1) 12 mm thick

Coil: 114 mm OD x 4 mm thick,

Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm). Coil heating surface area.

With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug.

20" Manhole with Cover and davit arm assist, one 6" sight glass,

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Internal 240 grit buff polished finish, external buff matte polish finish.
• Limpet coil 114mm outer diameter x 4mm thick.
• With Insulation rings and upper drip ring.
• Two top lifting lugs and one tailing lug.
• Mountable on lugs & on adjustable legs.

UNUSED ASME NB rated and "U" stamped.welded dish heads (2:1) 10mm thick.Coil: 114 mm OD x 4 mm thick,Limpet covers bottom dish and 2028 mm of straight-side (pitch 150mm),Span 1000mm. Coil heating surface area. 18" Manhole with Cover and davit arm assist, One 6" sight glass

Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,400 mm (94.5 in). Support Type: Lugs.

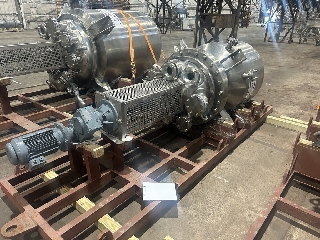

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 378.5 L (100 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 316 L SS sheathing completely sealed to 0.4 bar
• With dip tube with thermowell
• Internal Finish: Buff Polish to 240 grit
• External finish: Buff polish to 180 Grit

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304L. Orientation: Vertical. Agitation: Yes. Diameter: 700 mm (27.6 in). Straight Side Length: 1,205 mm (47.4 in). Support Type: Lugs.

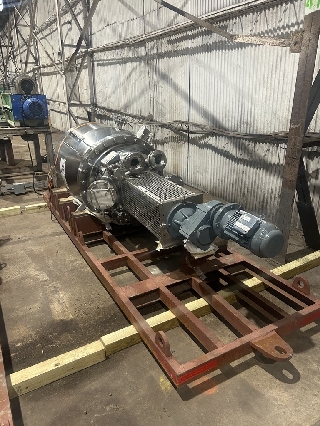

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Stainless Steel 316L

Capacity (Design): 378.5 L (100 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 316 L SS sheathing completely sealed to 0.4 bar
• With dip tube with thermowell
• Internal Finish: Buff Polish to 240 grit
• External finish: Buff polish to 180 Grit

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304L. Orientation: Vertical. Agitation: Yes. Diameter: 700 mm (27.6 in). Straight Side Length: 1,205 mm (47.4 in). Support Type: Lugs.
