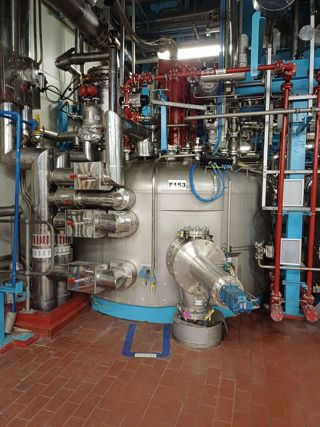

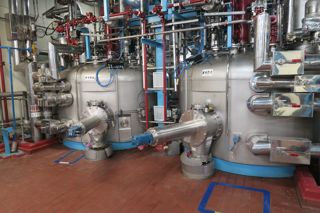

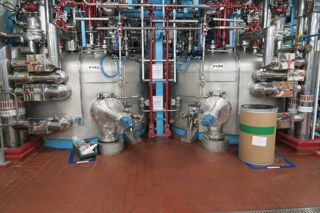

Hastelloy - C22 Rosenmund and Cogiem Filter - IPP# 230453

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

• Codap85

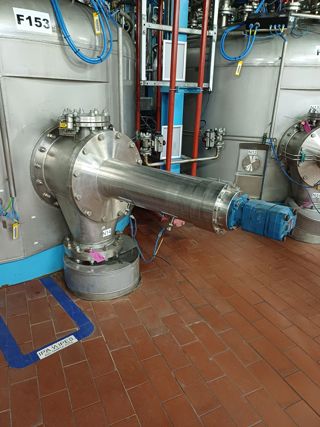

• Center bottom discharge
• Design includes hydraulic controls and vacuum pump skid. 316L stainless steel half pipe coil jacket on straight side cover with a shroud. Jacket volume is 75 liters. jacket -1/5 bar Non-cored shaft. Rated: internal pressure -1/3 bar.
• Designed for cake thickness 500mm.
• Vessel is 13200liter volume, Includes hydraulic controls and vacuum pump skid

Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Overall Length: 1,200 mm (46.9 in). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

• CODAP 85.
• Center bottom discharge design.
• Non-cored shaft. Internal pressure -1/3 bar @ -15/165 deg C;, jacket -1/5 bar @ -15/165 deg C. With 316L (1.4435) stainless steel half pipe coil jacket on straight side cover with a shroud. Designed for cake thickness 500 mm.
• Vessel is 13,200 liter volume and Includes hydraulic controls and vacuum pump skid.

Pressure: 0.21 bar (3 psi). Temperature: 73.9 °C (165 °F). Overall Length: 1,200 mm (46.9 in). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,250 mm (128.3 in)

• Center bottom discharge
• Design internal pressure -1/3 bar @ -15/165 deg C; jacket -1/5 bar @ -15/165 deg C. Non-cored shaft
• Designed for cake thickness 500 mm Vessel is 13200 liter volume jacket volume is 75 liters.

Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Overall Length: 1,200 mm (46.9 in). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket Temperature: 165 °C (329 °F).

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: B88-RF-1513

Condition: Used

Material: Stainless Steel 316

Filtration Area: 0.6 m² (6.5 ft²)

Diameter: 886 mm (34.9 in)

• Internal working pressure 90 psi and full vacuum @ -20/+450 degree F, jacket 150 psi @ -20/+450 degree F.
• Filter plate 150 psi @ -20/+450 degrees. F,
• Total volume 150 gallon, max solids volume 47.5 gallon, stroke pressure shovels 12", 316L stainless steel filter plate 304L stainless steel jacket.
• Paddle speed approximately 5-35 rpm, packed gland on shaft. Agitator raise and lower mechanism driven by same powerpack.
• Center bottom discharge with hydraulic valve.
• Heated filter perforated plate with hydraulic lowering ram. Max capacity vessel 17 cubic feet, jacket 1.9 cubic feet, filter plate 0.3 cubic feet.
• Built on control panel with agitator speed control, raise/lower speed control, counter pressure control, discharge tube open/close switch, base open/close switch, pressure gauge, and emergency stop button. Fabricate under license from Rosenmund by Gaston County. Gaston County serial # F80019-588-1.
• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Pressure: 6.2 bar (90 psi). Temperature: 232.2 °C (450 °F). Jacket: Yes. Jacket Pressure: 10.3 bar (150 psi). Jacket MOC: Stainless Steel 304. Jacket Temperature: 232.2 °C (450 °F).
