Filtration Area: 0.9 m² (9.7 ft²). Pressure: 6.9 bar (100.1 psi). Temperature: 177 °C (350.6 °F). Vacuum: Yes. Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.4 bar (150.1 psi). Jacket Temperature: 177 °C (350.6 °F).
Agitated Pressure Filter The 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree C The 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C. With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaningSide bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controls Filter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable. Filtration Area: 0.3 m² (3.2 ft²). Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F). Jacket: Yes.
Filter interior is polished to a mirror polish (220 grit) With cored and heated shaft shaft rated for 87 psi at 208 degrees F. Hydraulic driven agitator rotation 1:14 from 6-58 rpm. With stuffing box agitator seal with gas purge. Hydraulic power pack operates the following. Agitator up/down, Bottom opening tilting and the hatch Power pack is driven by a Reliance 10 hp 460volt, 3 ph motor Side solids discharge lamped bottom for heads removal Tilting type filter With 316 SS base and cabinet exterior parts polished to an 80 grit finish All gaskets are PTFE. Filter has washing nozzles, and Explosion proof lighting for filter interior Also included is a Rosenmund Apovac Vacuum system including vacuum pump and ring -Liquid vessel and cooler Apovac model 1.5/660 PMSH 156 D2 Serial # 51 050 with Vacuum pump by Gepruft With PLC control system has operators controls mounted on hydraulic station Filtration Area: 0.3 m² (3.2 ft²). Pressure: 6 bar (87 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F).
rated 50/FV PSIG @ -20 to 370 degrees F internal; 150 PSIG @ -20 to 370 degrees F in the 316SS 1/2 Vessel capacity rated 2000 gallon Unit includes a 22" diameter Rotary Gate Valve, Model-SS24, 22.5 diameter opening Bottom discharge. Filtration Area: 6 m² (64.6 ft²). Diameter: 2,743 mm (108 in). Pressure: 3.4 bar (50 psi). Temperature: 187.8 °C (370 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 187.8 °C (370 °F).
Shell rated 88.5/FV psi @392 Deg F. Jacket 316SS, rated 152.5/FV @392 Deg F Vertical Filter Dryer Dust collector Jacket rated FV 152 @392degrees F. Internal finish is a sanitary polish. 304SS sheathing Mechanical seals. Cored shaft with . Side discharge with side discharge valve. ntergal Stock # 241129- Hastelloy C22 pulse jet Dust collector. Dryer Dimensions: 90" diameter x 76" length 132 gallon Hastelloy C 22 side discharge valve. rated FV/88 @392 degrees F Filtration Area: 4.2 m² (44.7 ft²). Diameter: 2,300 mm (90.6 in). Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.5 bar (152.5 psi). Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
designed by GL Filtration Ltd, manufactured by RMF Engineering Ltd, design pressure internal 6 bar + full vacuum @ -25/165 degrees C, jacket 6 bar + full vacuum @ -25/165 degrees C, all wetted parts are Hastelloy C22 with cosmetical polish to 0.6um Ra, hazard area classification Zone 1 IIB T4, 500 liter slurry capacity, 180 liter cake capacity, 875mm diameter x 855mm straight side, agitator driven by 4kW, 3/50/400/690 volt, 1444 rpm CE ATEX EExd IIB TA IP55 motor, hydraulic agitator raise/lower mechanism driven by an hydraulic powerpack, bellows on shaft, flat bottom filter plate with Hastelloy C22 'POROSTAR' 20 micron (5 layers) filter media and can be rotated for cleaning, bottom filter bed with no jacket, 150mm side discharge which is fully contained in a glovebox, built on controls, dust filter, mounted on 3 x stainless steel legs, design code: ASME VIII DIV 1 2010 + 'U' stamp, Challenger 18i control pedestal, Filtration Area: 0.6 m² (6.5 ft²). Diameter: 875 mm (34.4 in). Pressure: 6 bar (87 psi). Temperature: 165 °C (329 °F). Vacuum: Yes. Jacket: Yes. Jacket Type: Standard. Jacket MOC: Stainless Steel 304L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F). Agitator Cored for Heating/Cooling: Yes.
mobile filter/dryer with tilting mechanism, designed by GL Filtration Ltd, manufactured by RMF Engineering Ltd, design pressure internal 6 bar + full vacuum @ -25/160 degrees C, jacket 6 bar + full vacuum @ -25/160 degrees C, all wetted parts are Hastelloy C22 with 0.6um polish, Hazard area classification Zone 1 IIB T4, 50 liter slurry capacity, 20 liter cake capacity, 350mm diameter x 665mm straight side, agitator driven by 1.1kW, 3/50/230/400 volt, 1400 rpm CE ATEX Ex II2G motor, hydraulic driven agitator raise/lower mechanism with power pack, alloy 22 bellows on shaft, flat bottom filter plate with Hastelloy C22 'PORSTAR' 22 micron filter media and can be rotated for cleaning, manual vessel tilt mechanism, strip sight glass on side for measuring cake depth, 150mm side discharge which is fully contained in a glovebox, all mounted on stainless steel frame with wheels for full mobility, design code: ASME VIII DIV 1 2007 + 'U' stamp, Filtration Area: 0.1 m² (1.08 ft²). Diameter: 350 mm (13.8 in). Pressure: 6 bar (87 psi). Temperature: 160 °C (320 °F). Vacuum: Yes. Jacket: Yes. Jacket Type: Standard. Jacket MOC: Stainless Steel 316L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 160 °C (320 °F). Agitator Cored for Heating/Cooling: Yes.
mobile laboratory filter/dryer with tilting mechanism, design pressure internal 6 bar + full vacuum @ -25/160 degrees C, jacket: 6 bar + full vacuum @ -25/160 degrees C, all wetted parts are Hastelloy C22, 50 liter slurry capacity, 20 liter cake capacity, 350mm diameter x 600mm straight side, agitator driven by 1.5kW, 3/50/230/400 volt, 1420 rpm CE ATEX EExd IIB T4 IP55 motor, hydraulic driven agitator raise/lower mechanism with powerpack, alloy 22 bellows on shaft, flat bottom filter plate with mesh filter and can be rotated for cleaning, manual vessel tilt mechanism, strip sight glass on side for measuring cake depth, approx 100mm side discharge which is fully contained in a glovebox, all mounted on stainless steel frame with wheels for full mobility, Filtration Area: 0.1 m² (1.08 ft²). Diameter: 350 mm (13.8 in). Pressure: 6 bar (87 psi). Temperature: 160 °C (320 °F). Vacuum: Yes. Jacket: Yes. Jacket Type: Standard. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 160 °C (320 °F). Agitator Cored for Heating/Cooling: Yes.
Internal working pressure 90 psi and full vacuum @ -20/+450 degree F, jacket 150 psi @ -20/+450 degree F. Filter plate 150 psi @ -20/+450 degrees. F, total volume 150 gallon, max solids volume 47.5 gallon, stroke pressure shovels 12", 316L stainless steel filterplate 304L stainless steel jacket. Paddle speed approx 5-35 rpm, packed gland on shaft Agitator raise and lower mechanism driven by same powerpak. Center bottom discharge with hydraulic valve. Heated filter perforated plate with hydraulic lowering ram Max capacity vessel 17 cubic feet, jacket 1.9 cubic feet, filter plate 0.3 cubic feet, built on control panel with agitator speed control, raise/lower speed control, counter pressure control, discharge tube open/close switch, base open/close switch, pressure gauge, and emergency stop button. Fabricate under license from Rosenmund by Gaston County. Gaston County serial # F80019-588-1. Filtration Area: 0.6 m² (6.5 ft²). Diameter: 885.7 mm (34.9 in). Pressure: 6.2 bar (90 psi). Temperature: 232.2 °C (450 °F). Jacket: Yes. Jacket MOC: Stainless Steel 304. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F).
Manually operated rake 2 to 5 KG of cake volume 30.44 liters coil volume is 2.57 liters Maximum capacity 3 gallons (11 liter) Gaskets are Teflon Filtration Area: 0.03 m² (0.32 ft²). Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Pressure: 10.1 bar (147 psi). Jacket Temperature: 200 °C (392 °F).
pressure nutsche filter Cake thickness 400 mm Filter plate is mounted on casters. SEW Usocome gear reducer type FHF 100P. Packing gland on shaft. Hydraulic lift of agitator driven by 0.75 kW 3/50/220/440 V, 1350 RPM motor Filtration Area: 0.94 m² (10.1 ft²). Diameter: 1,100 mm (43.3 in). Jacket: Yes. Jacket Type: Half Pipe/Limpet.
agitated jacketed pressure filter/dryer Design pressure internal 4 bar + full vacuum @ -30/180 degrees C (4100 liter), jackets 6 bar + full vacuum @ -30/180 degrees C (side wall jacket 100 liter, base jacket 100 liter) Design code BS.5500 Cat.2, 2000mm nominal diameter, slurry capacity 3400 liter (max), cake capacity 1200 liter (max) cake capacity 1200 liter (max), Agitator stoke 400mm, Agitator speed 8.3 rpm CE IEC34, IP55 EExd IIB T4 motor via a Nord 175.05:1 ratio reduction gearbox, John Crane Type 7700 dry running mechanical seal, 316 stainless steel half pipe coil jacket on straight side Filtration Area: 3 m² (32.3 ft²). Diameter: 2,000 mm (78.7 in). Pressure: 4 bar (58 psi). Temperature: 180 °C (356 °F). Jacket: Yes. Jacket Type: Internal Pipe Coil. Jacket MOC: Stainless Steel 316. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 180 °C (356 °F).
Alloy C22 Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel 18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F. Dryer Dimensions: 90" diameter x 76" length hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass. Filtration Area: 4.2 m² (44.7 ft²). Diameter: 2,300 mm (90.6 in). Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.5 bar (152 psi). Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
Agitated jacketed Rosenmund filter dryer Batch size 20 to 25kg internal design pressure 0.39 MPa (3.9 bar) + vacuum @ -20/170 degrees C (120 liter) coil jackets 0.6 MPa (6 bar) @ -20/170 degrees C (10 liter) internal working pressure 0.15 MPa (1.5 bar) @ 100 degrees C jacket 0.6 MPa (6 bar) @ 100 degrees C 550mm diameter x 828mm from agitator opening to filter plate, chamber insulated and with 316L stainless steel cladding, side discharge with 316L stainless steel glove box Ex motor, filter plate has a raise/lower and a hydraulic lock mechanism driven by the same power pack, CE certified, unit also includes (1) stainless steel condenser, (1) stainless steel tank, (1) heating controller Filtration Area: 0.25 m² (2.7 ft²). Diameter: 550 mm (21.7 in). Pressure: 3.9 bar (56.6 psi). Temperature: 170 °C (338 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 170 °C (338 °F).
agitated jacketed pressure filter/dryer 400mm agitator stroke, 400mm product discharge lateral, 15 rpm agitator speed, Zone 2 IIB T3 classification internal wash ring (pipe), clamped flat filter bed with hydraulic raise/lower mechanism and castors for removing, valve and filter bed raise/lower mechanism driven by a power pack, power pack with a 3kw, 3/50/415 volt, 1440 rpm CE IP55 Ex NII T3 motor, Filtration Area: 5 m² (53.8 ft²). Diameter: 2,525 mm (99.4 in). Pressure: 4 bar (58 psi). Temperature: 150 °C (302 °F). Jacket: Yes. Jacket MOC: Carbon Steel. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 150 °C (302 °F).
internals and shaft are highly polished 316 stainless steel Registration number: 1884 ATEX, II2G EEx de IIC T4 motor via a reduction gearbox, internal bellows on shaft shaft with rotary union joint agitator drive with hydraulic raise and lower mechanism, EagleBurgmann mechanical seal type SECCOMIXR5L-D40/94-E1, Ex II2GebT3 & ExII2DcbT195-C side discharge with hydraulic driven valve
316 stainless steel jacket on straight side and bottom filter bed internal spray bar insulated and 304 stainless steel clad mounting ring, power pack for raise/lower mechanisms/valve is unavailable Filtration Area: 0.6 m² (6.5 ft²). Diameter: 900 mm (35.4 in). Jacket: Yes.
Side cake discharge Carbon steel straight jacket on side only The agitator raise/lower mechanism driven by 2.2/2.5 kw, 3/50/60 Hz, 220-240/380-415/440-480 volt, 1435/1735 rpm 2-speed motor Carbon steel straight jacket on side only The filter bed has a hydraulic raise/lower with a powerpac driven by 5.5 kw Side cake discharge has a hydraulic flush valve Filtration Area: 5 m² (53.8 ft²). Diameter: 2,535 mm (99.8 in). Temperature: 150 °C (302 °F). Jacket: Yes. Jacket MOC: Carbon Steel. Jacket Pressure: 4 bar (58 psi). Jacket Temperature: 150 °C (302 °F).
Codap85
center bottom discharge design

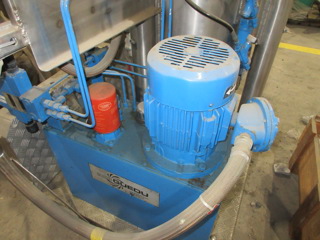

Includes hydraulic controls and vacuum pump skid.

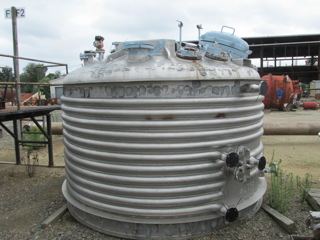

316L stainless steel half pipe coil jacket on straight side cover with a shroud
jacket volume is 75 liters.
jacket -1/5 bar
Non-cored shaft.
Rated: internal pressure -1/3 bar
Designed for cake thickness 500mm.
Vessel is 13200liter volume
Includes hydraulic controls and vacuum pump skid Filtration Area: 8 m² (86.1 ft²). Diameter: 3,260 mm (128.3 in). Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 5 bar (72.5 psi). Jacket Temperature: 165 °C (329 °F).
CODAP 85, center bottom discharge design Non-cored shaft internal pressure -1/3 bar @ -15/165 deg C;, jacket -1/5 bar @ -15/165 deg C With 316L (1.4435) stainless steel half pipe coil jacket on straight side cover with a shroud Designed for cake thickness 500 mm Vessel is 13200 liter volume Includes hydraulic controls and vacuum pump skid. Filtration Area: 8 m² (86.1 ft²). Diameter: 3,260 mm (128.3 in). Pressure: 0.21 bar (3 psi). Temperature: 73.9 °C (165 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket Pressure: 5 bar (72.5 psi). Jacket Temperature: 165 °C (329 °F).
center bottom discharge design internal pressure -1/3 bar @ -15/165 deg C; jacket -1/5 bar @ -15/165 deg C. Non-cored shaft Designed for cake thickness 500 mm Vessel is 13200 liter volume jacket volume is 75 liters Filtration Area: 8 m² (86.1 ft²). Diameter: 3,260 mm (128.3 in). Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket Pressure: 5 bar (72.5 psi). Jacket Temperature: 165 °C (329 °F).
Rosenmund type filter/dryer system design pressure internal 4 bar + full vacuum @ -30/180 degrees C (2800 liter), straight side jacket 6 bar + full vacuum @ -30 Filtration Area: 2 m² (21.5 ft²). Pressure: 4 bar (58 psi). Temperature: 180 °C (356 °F). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 180 °C (356 °F).
316 stainless agitated jacketed pressure Nutsche filter Filter volume 7200 liters Hydraulic racker lift driven by 0.75 KW, 3/50/500 volt motor. Packing gland on shaft Filtration Area: 6 m² (64.6 ft²). Diameter: 2,750 mm (108.3 in). Pressure: 2 bar (29 psi). Jacket Pressure: 6 bar (87 psi).
agitated vacuum nutsche filter internal pressure -1/4 bar @ -10/100 degrees C, 9000 liter internal washing/spray bar clamped flat filter base mounted on castors for removal side discharge with valve driven by a hydraulic power pack driven by 22kW/3~/50Hz/500V/1.480rpm EEx motor via a Flender reduction gearbox Filtration Area: 5 m² (53.8 ft²). Pressure: 4 bar (58 psi). Temperature: 100 °C (212 °F).
316 stainless steel agitated jacketed pressure Nutsche filter Filter volume 7200 liters Drive manufactured by Von Roll, Type CRG5 Hydraulic racker lift driven by 0.75 HP, 3/50/500 volt, 1450 rpm motor. Packing gland on shaft Filtration Area: 5.9 m² (64 ft²). Diameter: 2,741 mm (107.9 in). Pressure: 2 bar (29 psi). Jacket: Yes. Jacket Type: Internal Pipe Coil. Jacket Pressure: 6 bar (87 psi).
Schenk Filter Dryer Vessel Serial number 1635GW 45 liter capacity Jacket volume is 15 liter Clamp filter plate is 400mm diameter type M16B-R5 CK 35 (8) segments, 280 mesh diameter Agitator lift is driven by a .75KW 3/50/380 volt motor agitator rotational dirve is a 1.5 KW 3/50/380 volt Side cake discharge. Filtration Area: 0.12 m² (1.29 ft²). Diameter: 400 mm (15.7 in). Pressure: 6 bar (87 psi). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F).
jacketed agitated Nustch filter/dryer 2800 liter, s/steel half pipe coil jacket 69 liter total volume clamp bottom type HYS 2327, Serial number 221316, 500 Y-Exi,, 24V-Ex, FD072, 0, 577624/691. Packing gland on shaft Filtration Area: 2.5 m² (26.9 ft²). Diameter: 2,400 mm (94.5 in). Pressure: 3.6 bar (52.2 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel Other.
Filter volume 7200 liters Hydraulic agitator lift driven by 0.75 KW, 3/50/500 volt motor. Hydraulic agitator lift driven by 0.75 KW, 3/50/500 volt motor. Packing gland on shaft Filtration Area: 6 m² (64.6 ft²). Diameter: 2,741 mm (107.9 in). Pressure: 2 bar (29 psi). Jacket: Yes. Jacket Pressure: 6 bar (87 psi).
Vessel is 108" (2741mm) diameter x 39" (990mm) straight side, Filter volume 7200 liters Hydraulic agitator lift driven by 0.75 KW, 3/50/500 volt motor. Packing gland on shaft Unit designed for brick type filter stone (none with unit) Filtration Area: 6 m² (64.6 ft²). Diameter: 2,741 mm (107.9 in). Pressure: 2 bar (29 psi). Jacket: Yes. Jacket MOC: Stainless Steel 316. Jacket Pressure: 6 bar (87 psi).
REBUILT Internal volume 3890 liters, jacket volume 267 liters. The filter has the ability to tilt for discharge and ease of cleaning or screen change. With jacketed perforated filter plate, mounted on wheels and clamped to filter vessel, vessel mounted in A-frame stands Raker lifted and shell tumbled with oil hydraulic system with Kracht powerpak, approx 3 HP motor. With new manual ATEX XP controls. Filtration Area: 1.9 m² (20.5 ft²). Diameter: 1,594 mm (62.8 in). Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F).
Pressure Nutsche Filter Racker lift driven by 0.37 kW 3/50/380 V motor. Cake thickness 600 mm. Equipped with CIP spray ring on top of filter body. Filtration Area: 6 m² (64.6 ft²). Diameter: 2,800 mm (110.2 in).
Process Filtration involves the separation of solids from fluids (liquids or gases) or the removal of contaminants within a fluid. This technology is crucial in industries like chemical, pharmaceutical, and oil and gas, ensuring product purity, compliance with environmental regulations, and protection of downstream processing equipment. International Process Plants (IPP) offers a variety of different types of used and new surplus process filters. Here's a detailed explanation of how each type of filter works along with some major original equipment manufacturers:
Air Filters:
Basket Filters:
Cartridge and Candle Filters:
Horizontal Belt Filters:
Nutsche Filters and Nutsche Filter Dryers:
Pan Filters:
Plate and Frame Filters:
Pressure Leaf Filters:
RO and Ultra RO Filtration Systems:
Rosenmund and Cogiem Filters:
Rotary Vacuum Filters:
Tower Filters:
These manufacturers are recognized for their robust technologies and are widely used across various industries due to their reliability and innovative designs.
Let IPP know what you're looking to accomplish and we will be happy to help you determine which filter is right for your application.
Used Filters Filtration is the separation of a fluid-solids solution involving the passing of this mixture through a porous barrier which retains most of the solid particulates contained in the mixture. The various terms used in filtration processes include: Media – the filtration cloth or barrier to collect the solids, Liquor – the solution containing the liquid and solids, Filtrate – the liquid that has been filtered clear, Cake – the solids filtered out of the liquid, Polishing – the removal of the last bit of solids for a finished liquid product, Washing – pumping water or a wash liquid over the cake, Pre-coat – coating the filter cloth with a material like diatomaceous earth to aid in the filtering. The liquor is either pushed through the filter under pressure or pulled through the filter under vacuum. The types and configurations of filters vary widely; each has its own method of filtering, its own method of discharging the filtrate and discharging the cake. Depending on the product, sometimes the filtrate is the desired product and other time the cake is the desired product. Filters are measured by the square foot surface area available for filtering, and the cubic foot cake capacity. Type of Filters: • Plate and Frame Filter Press – this is an assembly of plates covered with a filter cloth and frames designed to collect the cake, held together in a press with that has a head plate and tail plate – the press is closed by a hydraulic pump, or manually in small presses. The plates and frame can be made of many types of materials, polypropylene is popular. Many times the press has “recessed plates” where two plates form a cavity for collecting cake eliminating the frame. Filter presses must be opened and the plates separated to remove the cake. • Pressure Filters – These are batch filters that push the liquor through the filter under pressure. Once the cake capacity is reached the cake must be removed before you continue the process. All pressure filters consist of a vessel with internal filter plates or cloths. o Basket, Candle, & Cartridge filters - This type of filter has a tank with an internal basket with a cloth bag, or filter cartridges, mounted inside the tank. o Vertical Tank with Horizontal plate filters - Once the plates are full of cake the cake must be removed. In smaller filters like a Sparkler filter, the plate bundle is remove manually, in larger filters like a Shenk or Funda filter the plate bundle is rotated at a high rpm to use centrifugal force to throw the cake off the plates and remove cake from the bottom of the tank. o Horizontal Tank Vertical plate filters – the cake can be removed by shaking the plates, spraying the plates with high pressure water, or scraping the cake off as the plate bundle rotates. • Vacuum filters – These include rotary drum filters and horizontal belt filters. Both are continuous operations. o Rotary Drum filters – these are horizontal drums with perforated exteriors covered with a filter cloth and internal vacuum pipes that are designed to be partially submerged in a trough of liquor. The internal vacuum pipes create suction on the outside of the drum. As the drum rotates the liquor is pulled through the filtrate cloth and the cake is form on the outside of the drum. Before the cake dips back into the trough it is removed from the drum by a scraper or belt discharge. o Horizontal Belt filters – The liquor is spread onto one end of a horizontal perforated belt covered with a filter cloth. A vacuum is pulled under the belt creating suction on top. As the product is conveyed along the moving belt the filtrate is pulled through the belt perforations, leaving the cake on top. When the cake reached the end of the belt it basically drop off or is scrapped off the filter cloth. o Pan filters – Like a belt filter with a moving filter cloth and suction underneath, this filter replaces the belt with a series of vacuum pans that extract the filtrate while the cake is conveyed along the filter cloth. • Rosenmund Type – The major manufacturers of this type of filter are Cogiem and Rosenmund. Also known as Filter/Dryers and Nutche filters. This type of filter is typically pressure and vacuum rated internally, heated with a jacket, and has an agitation system that double as a cake discharge screw, and for added drying, the shaft of the agitator can be cored for heating and cooling. Depending on the process this type of filter can take the place of a reactor, a filter, and a dryer, all in one machine. The basic design is a large diameter tank, with a screen in the bottom head, top mounted agitator drive that can raise and lower the internal blades during different cycles. When the process is finished the agitator is lowered to scrape along the filter screen, a cake discharge valve is opened, the agitator scrapes the cake out of the filter/dryer. The newer machines have a removable bottom head so the filter screens can be removed and the bottom head cleaned without any type of tank entry. Filter/dryers are measured by the Square Meter of filter screen area. • Tower Filters – Similar to a filter press in filtration techniques. The tower press has horizontal plates with a continuous cloth woven in and out of the plates. During filtration the plate stack is closed and during discharge the plate stack is opened and the cake is conveyed out of the pres by the filter cloth. Eliminates the manual labor use to clean filter presses. IPP carries an extensive inventory of used, unused and reconditioned filters in stock including filters manufactured by: 3-L, 3V COGEIM, Acme, ACME INDUSTRIAL, Alar, Alar Auto, Alar Engineering, Allegheny Bradford, Alsop, AMERICAN FILTER, AMETEK, AMF, Amicon, Andritz, Apache, APV, Ashbrook, Aurora, AURORA FILTERS, Avery, BAEUERLE & MORRIS, BAEUERLE & MORRIS INC, Baeurle & Morris, BALSTON FILTER, BIRD, BIRD YOUNG, Cambridge, CARLSON, Carter Day, Chemap AG Funda, Chemap Ltd, CHICAGO BOILER, Chicago Boiler Co., Choquenet, Clow, Cogeim, COGEIM SPA, Comber, COMER, Commercial, Commercial Filter Corporation, COMMERCIAL FILTERS, COMMERCIAL FILTERS CORPORATION, CP 1200 F, CULTER, CUNO, CUNO/MARTIN PETERSON, CUTLER METAL PRODUCT, DELAVAL, Dorr Oliver, Durco, DURCO ENZINGER, Durco/Enzinger, Durion, Duriron, Edward & Jones, Eimco, ENVIRONMENTAL TECH, Enviroquip, Ertel, ERTEL/ALSOP, EUROFILTEC, Extract Technology, Filler Specialties, Filter Specialists, Filterdyne, Filterite, FILTRATEC, Filtration & Separat, Filtration & Separation, Filtration Eng., Filtration Engineers, Filtration Systems, Filtroba AG, Filtrox-Werk, Flexline, Flow Trend, FRANTZ FERRO, FSI, Fulflo, GAF, GELMAN SCIENCES, GENERAL FILTRATION, Guedu, Harmsco, Haward, Hercules, HERCULES FILTER, Hoechst, HOESCHT, Hovex-Holland, Ideal Welders Ltd, Idrex, IMECA, Industrial, Industrial Filter, International, Jaygo, JWI, Ketema, KETEMA NIAGARA, KLAMPRESS 8/90, Klein, Komline Sanderson, Lanco, Larox, Larox-Pannevis, Lee Ind, LEE INDUSTRIES, LS10-BO-6, MECHANICAL FILTRATION, MEMTEC, Met-Chem, Millipore, Netzsch, Niagara, NIAGRA, Nivoba, Northland, NORTHLAND STAINLESS, NUTSCHE, Oberlin, OPF 4, OPF-12, OPF-4, Padovan, Padovan Taylo, Pall Corp, PALL TRINITY, Pannevis, Parker, PARKER HANNIFIN, PARKER/FULFLO FILTER, Parkson, Passavant, Perrin, Powder Systems, POWDER SYSTEMS LTD, Pressofiltro, Quantum Technologies, Romicon, Ronningen, RONNINGEN PETTER, RONNINGEN-PETTER, RONNING-PETTER, Rosedale, ROSEDALE PRODUCTS, ROSENMUND, RP Products, RT 0575, RUSSELL FINES, Russell Finex, Saltec, Sartorius, SARTORIUS STEDIM, Schenk, Seitz, SEITZ ENZINGER, Seitz Orion, Seitz Wega, Sernagiotto, Shriver, Sietz, Sietz Enzinger Noll, SLF Inc, SPARKLER, Sparkler Filter, SPARKLER FILTERS, Sperry, Standard, Star, Star Systems, Steri Technologies, Stossier, STRAINRITE, Strainrite Inc, STRAINRITE INC., Strassburger, Sweco, T. SHRIVER & CO. INC, Technical Fabricator, Thompson, Trent, TRI-CLOVER, Triton, US Filter, USF Filtration, Valex, Velo, Vernay, Vevey, Von, Von Roll, Waterlink Lanco, Westech, WESTECH ENGINEERING, William Sprinkman, WWE, Yabuta, Zurn, ZURN INDUSTRIES, Zwag .
