Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: 3V Cogeim
Model: Filtodry FPP XD 400 FM
Condition: Used
Material: Hastelloy - C22
Filtration Area: 4.2 m² (44.7 ft²)
Diameter: 2,300 mm (90.6 in)
Alloy C22
Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel
18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.
Dryer Dimensions: 90" diameter x 76" length
hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.
Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.5 bar (152 psi). Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: 3V Cogeim
Model: FiltoDry FEPXD 400
Condition: Used
Material: Hastelloy - C22
Filtration Area: 4.2 m² (44.7 ft²)
Diameter: 2,300 mm (90.6 in)
Shell rated 88.5/FV psi @392 Deg F. Jacket 316SS, rated 152.5/FV @392 Deg F Vertical Filter Dryer Dust collector Jacket rated FV 152 @392degrees F. Internal finish is a sanitary polish. 304SS sheathing Mechanical seals. Cored shaft with . Side discharge with side discharge valve. ntergal Stock # 241129- Hastelloy C22 pulse jet Dust collector. Dryer Dimensions: 90" diameter x 76" length 132 gallon Hastelloy C 22 side discharge valve. rated FV/88 @392 degrees F
Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Jacket: Yes. Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Pressure: 10.5 bar (152.5 psi). Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
Type: Filter
Subtype: Rosenmund and Cogiem
Manufacturer: Cogiem
Model: FFP-030-DFM
Condition: Used
Material: Hastelloy - C276
Filtration Area: 0.3 m² (3.2 ft²)
Pressure: 6 bar (87 psi)

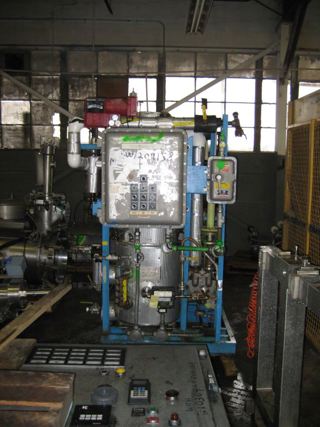

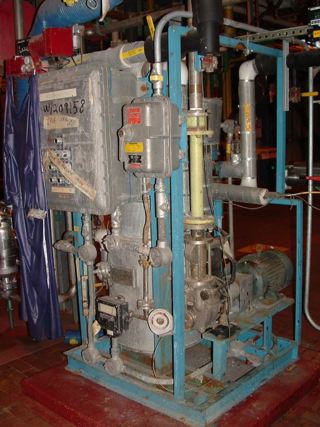

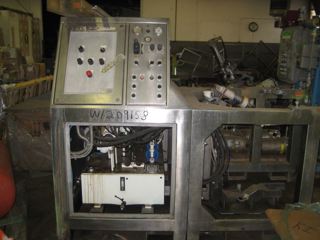

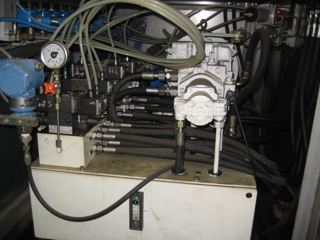

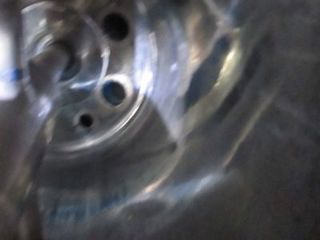

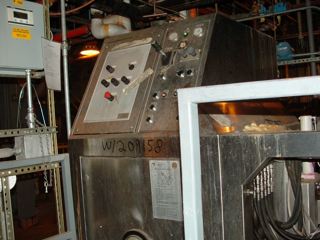

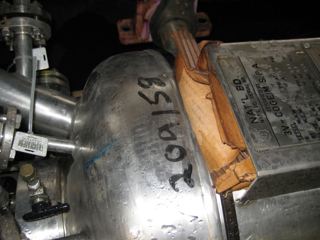

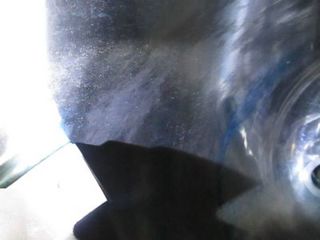

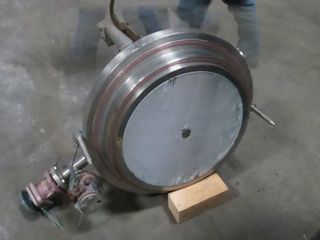

Filter interior is polished to a mirror polish (220 grit) With cored and heated shaft shaft rated for 87 psi at 208 degrees F. Hydraulic driven agitator rotation 1:14 from 6-58 rpm. With stuffing box agitator seal with gas purge. Hydraulic power pack operates the following. Agitator up/down, Bottom opening tilting and the hatch Power pack is driven by a Reliance 10 hp 460volt, 3 ph motor Side solids discharge lamped bottom for heads removal Tilting type filter With 316 SS base and cabinet exterior parts polished to an 80 grit finish All gaskets are PTFE. Filter has washing nozzles, and Explosion proof lighting for filter interior Also included is a Rosenmund Apovac Vacuum system including vacuum pump and ring -Liquid vessel and cooler Apovac model 1.5/660 PMSH 156 D2 Serial # 51 050 with Vacuum pump by Gepruft With PLC control system has operators controls mounted on hydraulic station
Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 165 °C (329 °F).
