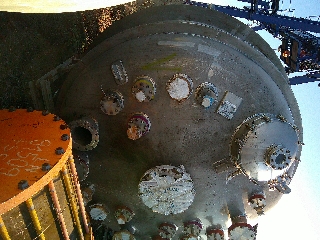

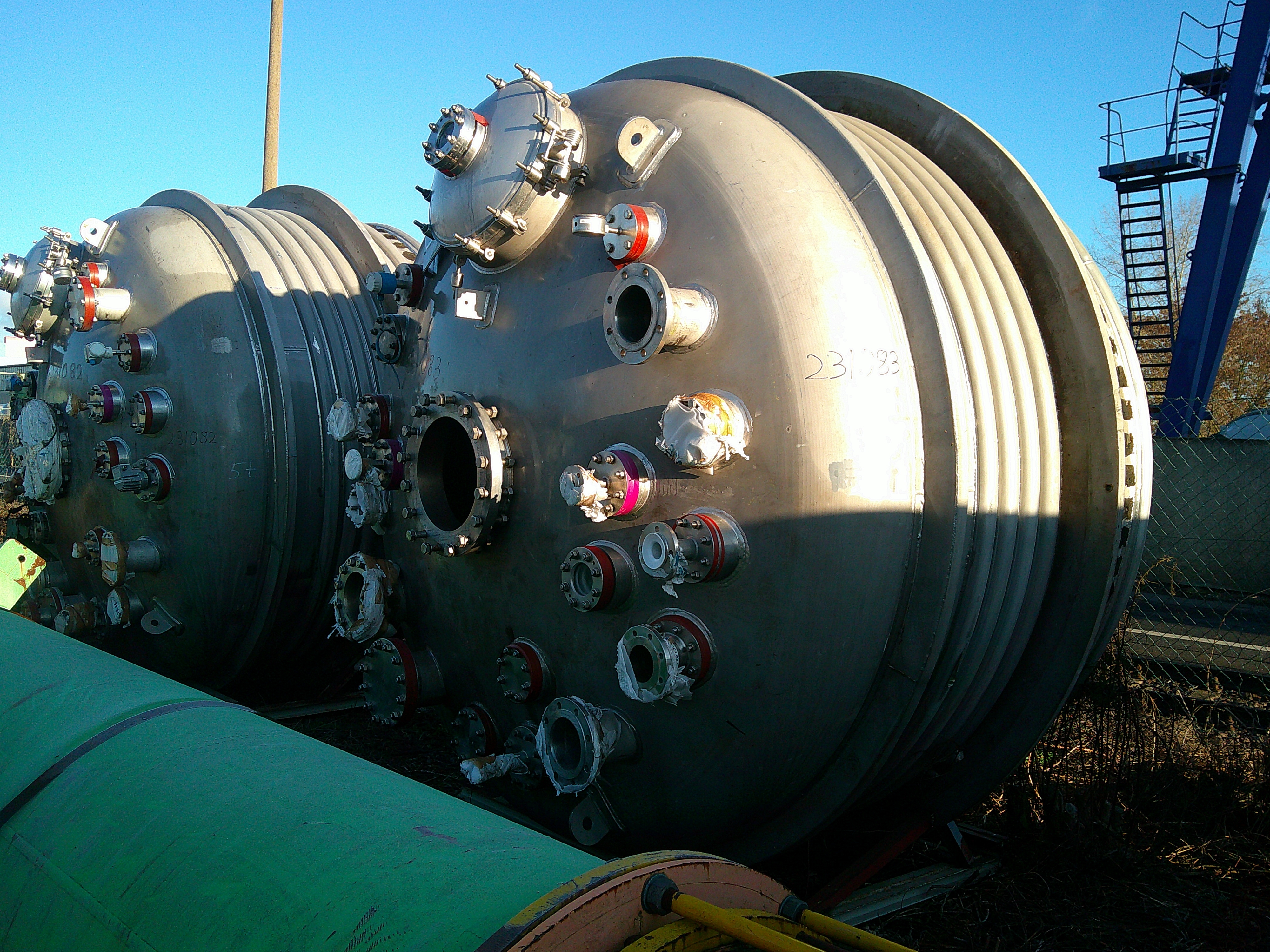

1325mm high bottom cone section internal pressure -1/6 bar @ -30/150 degrees C (13500 liter), jacket -1/10 bar @ -30/150 degrees C (270 liter), cone side: 9-80mm (1 for jacket), 1-50mm, 1-25mm openings TUV certified Valves, filters, pipework, etc. may be available.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Crimmitischau
Condition: Used
Material: Stainless Steel Austenitic
Capacity (Design): 13,500 L (3,566 gallons)
Internal Pressure: 6 bar (87 psi)
straight side and coned bottom , internal pressure -1/6 bar @ -30/150 degrees C (13500 liter), jacket -1/10 bar @ -30/150 degrees C (270 liter), TUV certified Powder transfer unit: Capacity: 19 liters Material: 316Ti (1.4571) stainless steel Manufacturer: Enco Serial number: T5350 Internal pressure: -1/6 bar @ -30/200 degrees C (19 liters) Dimensions: 206mm diameter x 600mm straight side Bolt dished top Bolts directly onto a tank/reactor flange.
Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel Austenitic. Agitation: Yes. Diameter: 2,800 mm (110.2 in). Straight Side Length: 1,355 mm (53.3 in).
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: K. Ley, Germany
Condition: Used
Material: Stainless Steel Austenitic
Capacity (Design): 630 L (166.4 gallons)
Internal Pressure: 6 bar (87 psi)

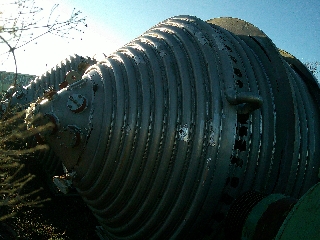

Internal pressure -1/6 bar @ -60/+200 degrees C; half pipe coil jacket -1/20 bar @ -60/+200 degrees C,
Jacket capacity: 20 liter
with a 3kW agitator drive, manufactured by MUT type N3GF8-3,0, serial number 02537, maximum speed 285 rpm,
Motor type 132S-4, 3~/50Hz/230-400V/1.445 rpm, counter flow agitator,
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Dynamite Nobel
Condition: Used
Material: Stainless Steel Austenitic
Capacity (Design): 3,100 L (818.9 gallons)
Internal Pressure: 6 bar (87 psi)
Ekato type EM100, 23/113 rpm agitator drive, mechanical seal with lubricator, TUV certified
Internal Temperature: 300 °C (572 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 300 °C (572 °F). Jacket Material of Construction: Stainless Steel 316. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 970 mm (38.2 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Dynamite Nobel
Condition: Used
Material: Stainless Steel Austenitic
Capacity (Design): 3,100 L (818.9 gallons)
Internal Pressure: 8 bar (116 psi)
mechanical seal with lubricator, top and bottom dish 16mm thick, straight side 14mm thick, jacket straight side 16mm thick, bottom dish 12mm thick, TUV certified
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 250 °C (482 °F). Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 930 mm (36.6 in). Support Type: Lugs.
