Carbon Steel Dryer-Holoflite & Screw - IPP# 232605

  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605 Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605 Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605 Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605 Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
  • Carbon Steel Dryer-Holoflite & Screw - IPP# 232605
Overview
Dryer-Holoflite & Screw
Svedala
Q2424-6
Used
Carbon Steel
Other Specifications
2,496 mm (98.3 in)
7,315 mm (288 in)
4
2.1 bar (30 psi)
343.3 °C (650 °F)
2.1 bar (30 psi)
343.3 °C (650 °F)
Horizontal
141.1 m² (1,519 ft²)
5,443 kg/h (12,000 lb/h)
1,760 mm (69.3 in)

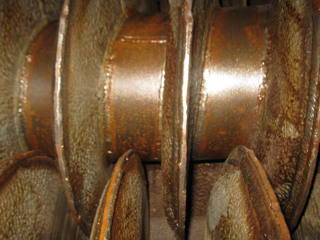

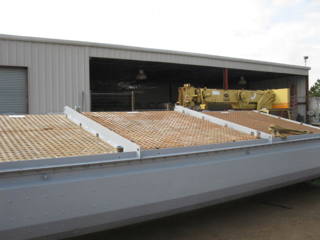

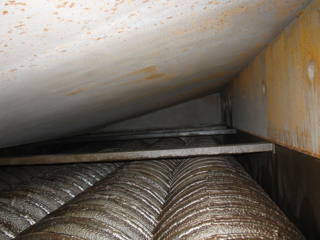

Quad screw holo-flight processor. Total estimated heating surface area is 1519 sq. ft., Estimated heat transfer surface of material exposed to the trough is 292 Sq. Ft., for the screws is 1227 Sq. Ft. (306.75 sq. ft. each). The heating medium is hot oil. The processor is fitted with a vapor hood. The trough is 24' long x 98.25" wide x 35" high,(with out hood) 69.3" high (with the hood). Trough volume is 159 cubic foot. Quad screw design with timing gears driven through a SYM Cyclo reducer at a ratio of 231:1. Final screw output is 7.6 to 76 rpm.
