Carbon Steel Trane RTHD UC1E HX0U AE1A 3RAL FIAZ LALA VCQA EXAA BXA2 09DK UA6X Compressor Chiller - IPP# 233261

Type: Chiller

Subtype: Compressor

Manufacturer: Trane

Model: RTHD UC1E HX0U AE1A 3RAL FIAZ LALA VCQA EXAA BXA2 09DK UA6X.

Condition: Used

Material: Carbon Steel

Capacity Design: 604,800 kcal/h (200 Ref. Ton)

Refrigerant Type: R-134a

rotary chiller Optimus helical rotary, Hermetically sealed motor, Water cooled.

Type: Chiller

Subtype: Compressor

Manufacturer: Trane

Model: CV6C95H4

Condition: Used

Capacity Design: 1,905,100 kcal/h (630 Ref. Ton)

Type: Chiller

Subtype: Compressor

Manufacturer: York International

Model: RWBII-100E

Condition: Used

Material: Carbon Steel

Capacity Design: 907,200 kcal/h (300 Ref. Ton)

Pressure: 24.1 bar (350 psi)

300psig low side. Rated for 289 BHP.

Refrigerant Type: R-22.

Type: Chiller

Subtype: Compressor

Manufacturer: York International Industrial refrigeration

Condition: Used

Material: Carbon Steel

Capacity Design: 498,700 kcal/h (164.9 Ref. Ton)

Pressure: 20.7 bar (300.2 psi)

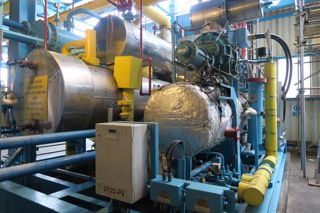

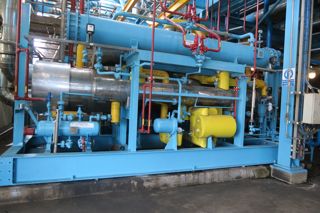

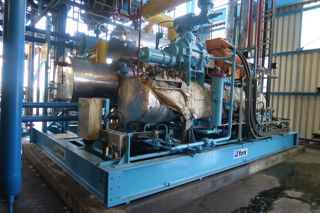

• 580 kw York chiller packaged skid,
• maximum working pressure high side 20.7 barg, low side 20.7 barg,
• HTM flow rate through each evaporator 175m3/hr,
• HTM outlet temperature from evaporators -25 degrees C,
• HTM temperature supply to evaporators -17.23 degrees C,
• refrigerant NH3 (R717),
• 650kg refrigerant charge,
• 2960 rpm compressor speed,

system includes,

(1) compressor, manufactured by Frick, type RWBII, size IV222,

(1) 158.8 square meter carbon steel tube, head and shell horizontal evaporator, design pressure tube side 10 barg @ -28.9/93 degrees C, shell side 20.6 barg @ -28.9/93 degrees C, (298) 31.75mm diameter x 5486mm long carbon steel tubes,

(1) 53 square meter carbon steel tube, head and shell horizontal condenser, design pressure tube side 10.3 barg @ -28/90 degrees C, shell 20.7 barg @ -28/90 degrees C, (120) 31.75mm diameter x 4572mm long carbon steel tubes,

(1) oil system with oil circulation pump, oil separator, oil cooler, oil storage tank,

(1) purge drum,

(1) suction separator,

(1) economiser,

all mounted on a carbon steel skid

Product Flow Rate: 175 m3/h (761 GPM). Refrigerant Type: NH3 (Ammonia). Temperature: -25 °C (-13 °F).
