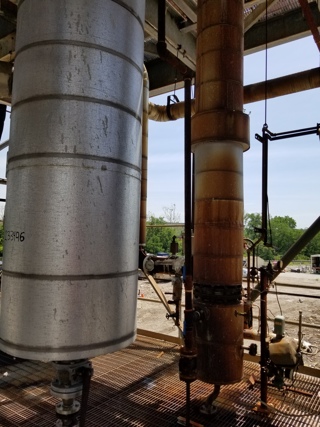

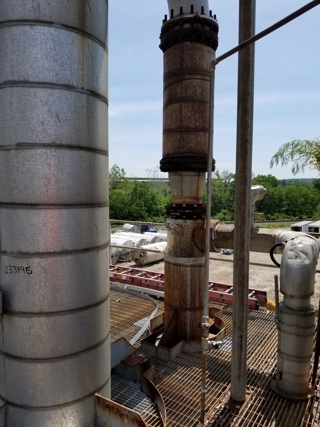

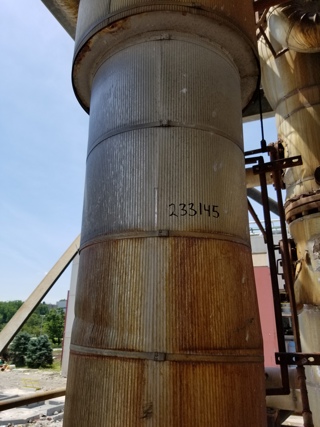

Type: Heat Exchanger
Subtype: Shell and Tube

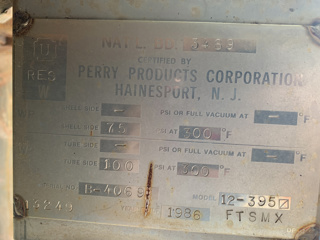

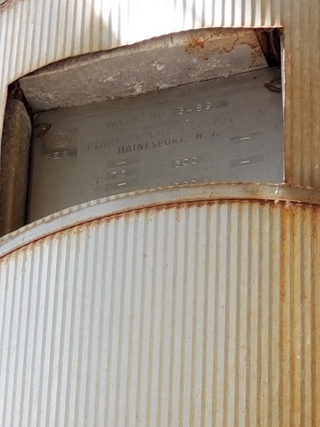

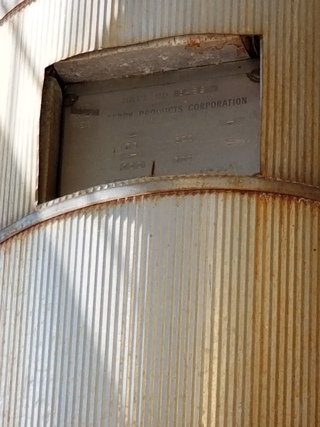

Manufacturer: Perry Products.
Model: 12-395, FTSMX
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 36.7 m² (395 ft²)
Orientation: Vertical
Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 148.9 °C (300 °F). Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 5,969 mm (235 in). Tube Type: Straight Tube. Tube Number: 126. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: One 16" nozzle, two 6" nozzles, one 2" nozzle, and two 1" nozzles..
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Astro Cosmos Metallurgical
Model: BEM 20-1-58
Condition: Used
Material: Hastelloy - Other
Clad: Yes
Heat Transfer Surface Area: 27.6 m² (297 ft²)
Orientation: Vertical
304 SS with Hastelloy C clad tube sheet Hastelloy lined CS shell 20" diameter x 58" face to face, overall length is 89" long
Shell Pressure: 6.2 bar (90 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.2 bar (90 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - Other. Length: 1,473 mm (58 in). Tube Type: Straight Tube. Tube Number: 325. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,473 mm (58 in). Tube Thickness: 0.76 mm (0.03 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Southern Heat Exchanger
Condition: Used
Material: Hastelloy - Other
Heat Transfer Surface Area: 21.4 m² (230 ft²)
Orientation: Vertical
Hastelloy B2 (SB-626) tubes, 16" diameter x 6' 1.5" long tube sheet to tube sheet.
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 226.7 °C (440 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Hastelloy - C276. Head Material: Hastelloy - C276. Tube Type: Straight Tube. Tube Number: 196. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,867 mm (73.5 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: One 6" nozzle, four 3" nozzles, three 2.5" nozzles..
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Albach Cembell
Condition: Used
Material: Hastelloy - Other
Clad: Yes
Heat Transfer Surface Area: 107.7 m² (1,159 ft²)
Orientation: Vertical
w/ haastelloy C22 clad "U" stamped baffle spacing 2'0", four baffles
Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.38 bar (20 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - Other. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 762 mm (30 in). Head Material: Carbon Steel. Tube Number: 426. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,251 mm (128 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: shell nozzles 1.5",6.
