Hastelloy - C276 Batch-Type Agitated Reactor - IPP# 235703

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Baeuerle and Morris Inc.

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757.1 L (200 gallons)

Internal Pressure: 1.01 bar (14.7 psi)

• Jacket details: conventional carbon steel jacket covering sidewalls and bottom head, minimum gauge of 3/16"

Internal Full Vacuum: Yes. Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Diameter: 1,118 mm (44 in). Straight Side Length: 952.5 mm (37.5 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Baskerville and Lindsay Ltd

Condition: Used

Material: Hastelloy - C276

Clad: Yes

Capacity (Design): 2 L (0.53 gallons)

Internal Pressure: 358.7 bar (5,202 psi)

direct coupled Body with electrical heated jacket and full insulation with stainless steel clad jacket motor : 3/210 volt

Internal Temperature: 300 °C (572 °F). Jacket Material of Construction: Stainless Steel Other. Agitation: Yes. Diameter: 88.9 mm (3.5 in). Straight Side Length: 304.8 mm (12 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Brighton Manufacturing

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 12,113 L (3,200 gallons)

Internal Pressure: 4.2 bar (61 psi)

Internal Temperature: 93.3 °C (200 °F). Jacket Pressure: 13 bar (188 psi). Jacket Temperature: 93.3 °C (200 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,261 mm (89 in). Straight Side Length: 2,667 mm (105 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Perry Products Corp

Condition: Used

Material: Hastelloy - C276

Capacity (Design): 946.4 L (250 gallons)

Internal Pressure: 10.3 bar (150 psi)

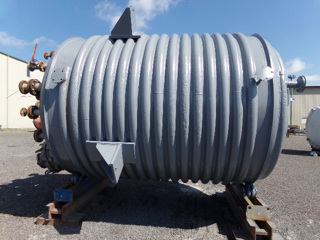

Three turns schedule 10 half pipe on bottom head, Eight turns schedule 10 half pipe on side walls. Mixing by Eastern model FRG-C2M with double mechanical seal Duel sets of four blade pitch turbine mixers

Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Diameter: 1,016 mm (40 in). Straight Side Length: 1,143 mm (45 in). Support Type: Legs.
