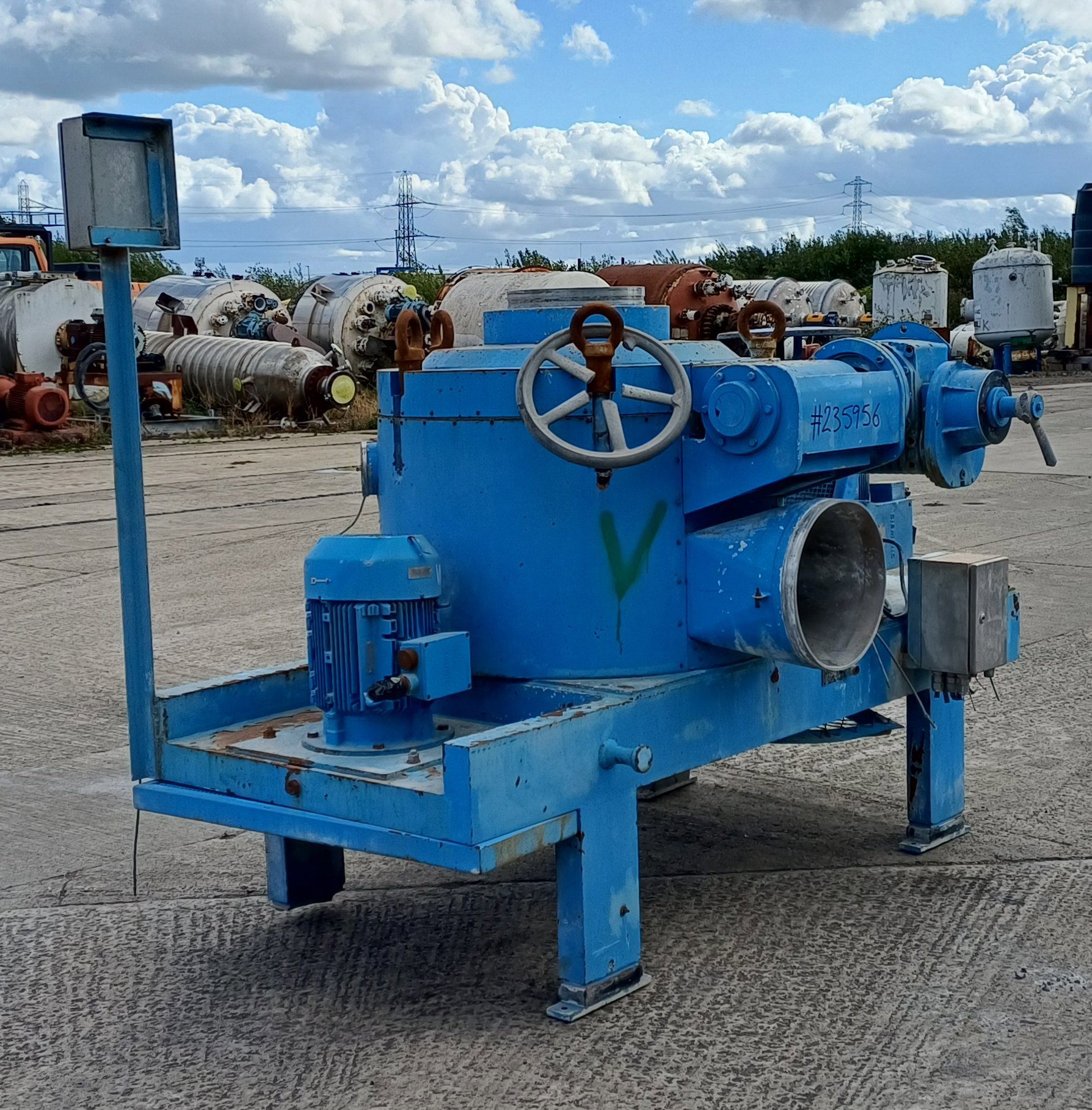

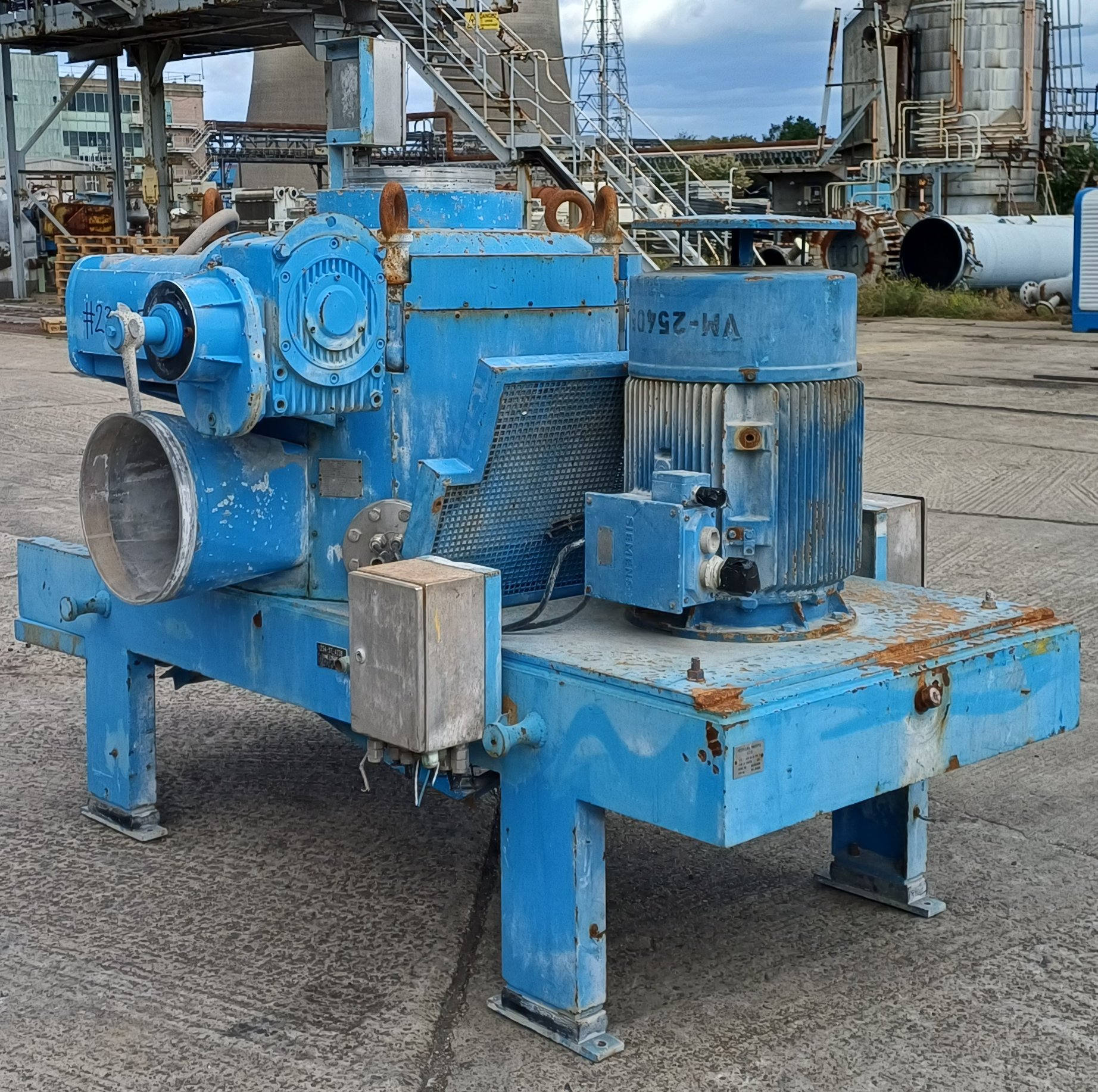

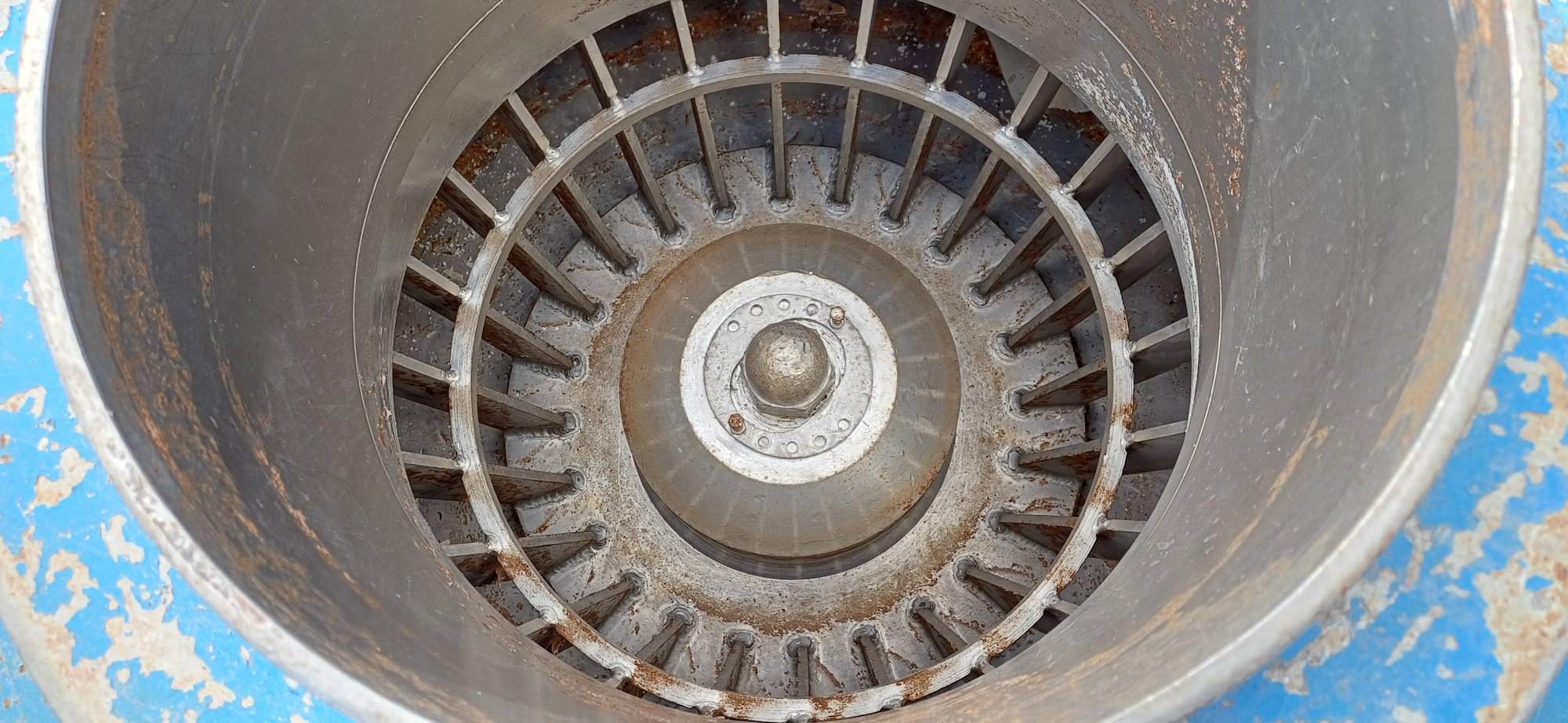

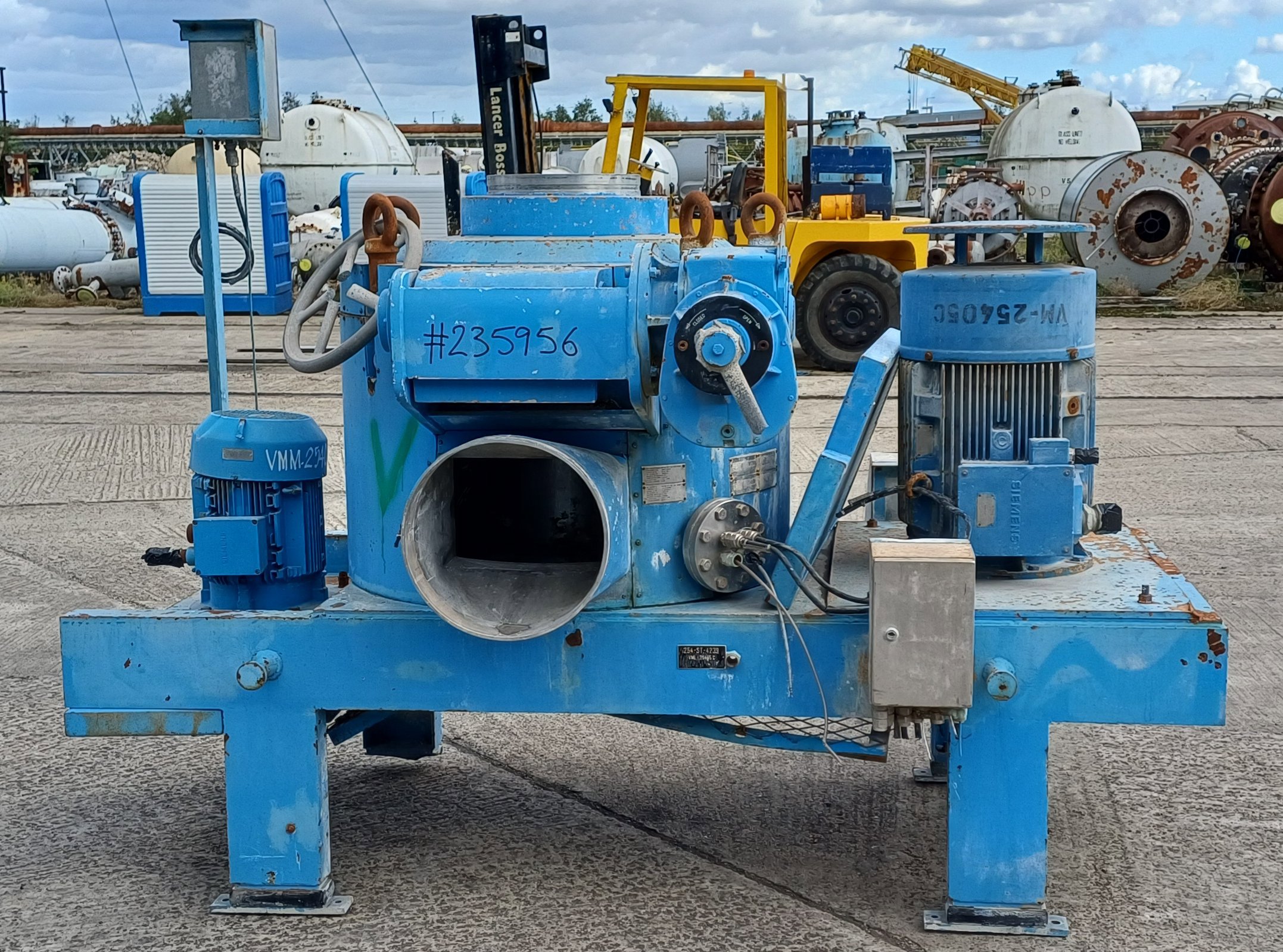

Milling package including Mikro ACM 60-IS PSR-11 milling machines Rated for 1500 kg./Hr., rated for 11 bar at 70 degrees C., with a 36 pin disk and a 24 blade classifier. Classifier is rated max. 3100 rpm
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: Mikro ACM 60-IS PSR-11
Condition: Used
Material: Stainless Steel 304
Motor Power (Design): 37.3 kW (50 HP)
Speed (RPM): 3,100
Milling package including Mikro ACM 60-IS PSR-11 milling machines Rated for 1500 kg./Hr., rated for 11 bar at 70 degrees C., with a 36 pin disk and a 24 blade classifier. Classifier is rated max. 3100 rpm. speed 720 to 1775 rpm. 2450 mm long x 1395 mm wide x 1545 mm high.
Pressure: 11 bar (159.5 psi). Temperature: 70 °C (158 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: Mikro ACM 60-IS PSR-11
Condition: Used
Material: Stainless Steel 304
Motor Power (Design): 37.3 kW (50 HP)
Speed (RPM): 3,100
Milling package Mikro ACM 60-IS PSR-11 milling machines. Rated for 1500 kg./Hr., rated for 11 bar at 70 degrees C. with a 36 pin disk and a 24 blade classifier. Classifier is rated max. 3100 rpm
Pressure: 11 bar (159.5 psi). Temperature: 70 °C (158 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: Mikro ACM 60-IS PSR-11
Condition: Used
Material: Stainless Steel 304
Motor Power (Design): 37.3 kW (50 HP)
Speed (RPM): 3,100
Milling package including Mikro ACM 60-IS PSR-11 milling machines. Rated for 1500 kg./Hr., rated for 11 bar at 70 degrees C., with a 36 pin disk and a 24 blade classifier. Classifier is rated max. 3100 rpm,speed 720 to 1775 rpm
Pressure: 11 bar (159.5 psi). Temperature: 70 °C (158 °F).
Type: Pulverizer
Subtype: Granulator/Disintegrator
Manufacturer: Alpine (Hosokawa)
Model: Multiplex 315 UPZ
Condition: Used
Material: Stainless Steel 304
Capacity: 11 m3 (388.5 ft3)
Outlet Discharge Diameter: 156.5 mm (6.2 in)
rated: 11 DCuM, 0.05 bar, 60°C., 10 bar overpressure stud disc diameter: 315 mm, plate beater: 298 mm, swing beater: 298mm, air inlet: DN 100 mm
Inlet Diameter: 150 mm (5.9 in). Motor Power (Design): 22 kW (29.5 HP). Orientation: Horizontal. Pressure: 0.05 bar (0.73 psi). Temperature: 60 °C (140 °F).
