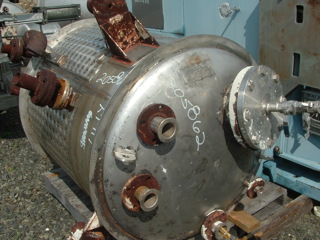

Stainless Steel 316L Northland Stainless Tank - IPP# 240693

Type: Tank

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 3,050 L (800 gallons)

Orientation: Horizontal

• With sanitary insulation jacket.
• Head thickness is 0.25"

Diameter: 1,350 mm (54 in). Straight-side Length: 2,150 mm (84 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 148.9 °C (300 °F). Jacket Type: Standard. Jacket Material: Stainless Steel 321. Jacket Pressure: 0.34 bar (5 psi). Jacket Temperature: -16.1 °C (3 °F). Vacuum: Yes. Sanitary Contruction: Yes. Support: Lugs.

Type: Tank

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 3,050 L (800 gallons)

Orientation: Vertical

• Full Mirror Polish, sanitary construction with insulation shroud.
• Half pipe coil jacket.
• 10 wraps half pipe coil jacket counted as stiffening rings.

Diameter: 1,500 mm (60 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 148.9 °C (300 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316L. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Vacuum: Yes. CIP: Yes. Sanitary Contruction: Yes. Support: Feet.

Type: Tank

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 3,400 L (900 gallons)

Orientation: Vertical

• Full Mirror Polish, sanitary construction with insulation shroud.
• Half pipe coil jacket rated FV

Diameter: 1,500 mm (60 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 148.9 °C (300 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316L. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Vacuum: Yes. Sanitary Contruction: Yes.

Type: Tank

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,500 L (400 gallons)

Orientation: Horizontal

• Vessel has an internal overflow weir at one third of the tank.
• With stainless steel temperature insulating jacket.

Diameter: 1,200 mm (48 in). Straight-side Length: 1,200 mm (48 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes.
