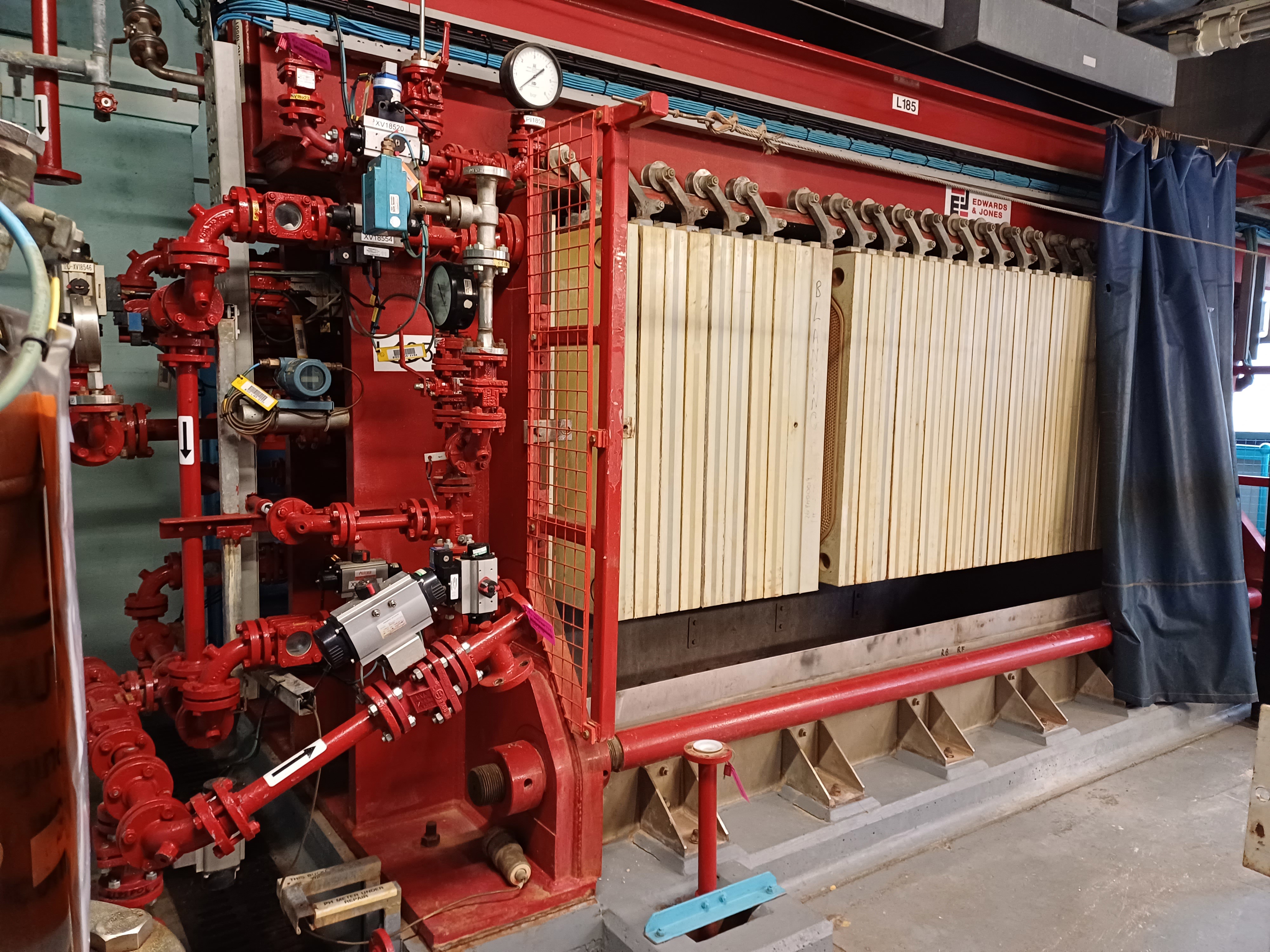

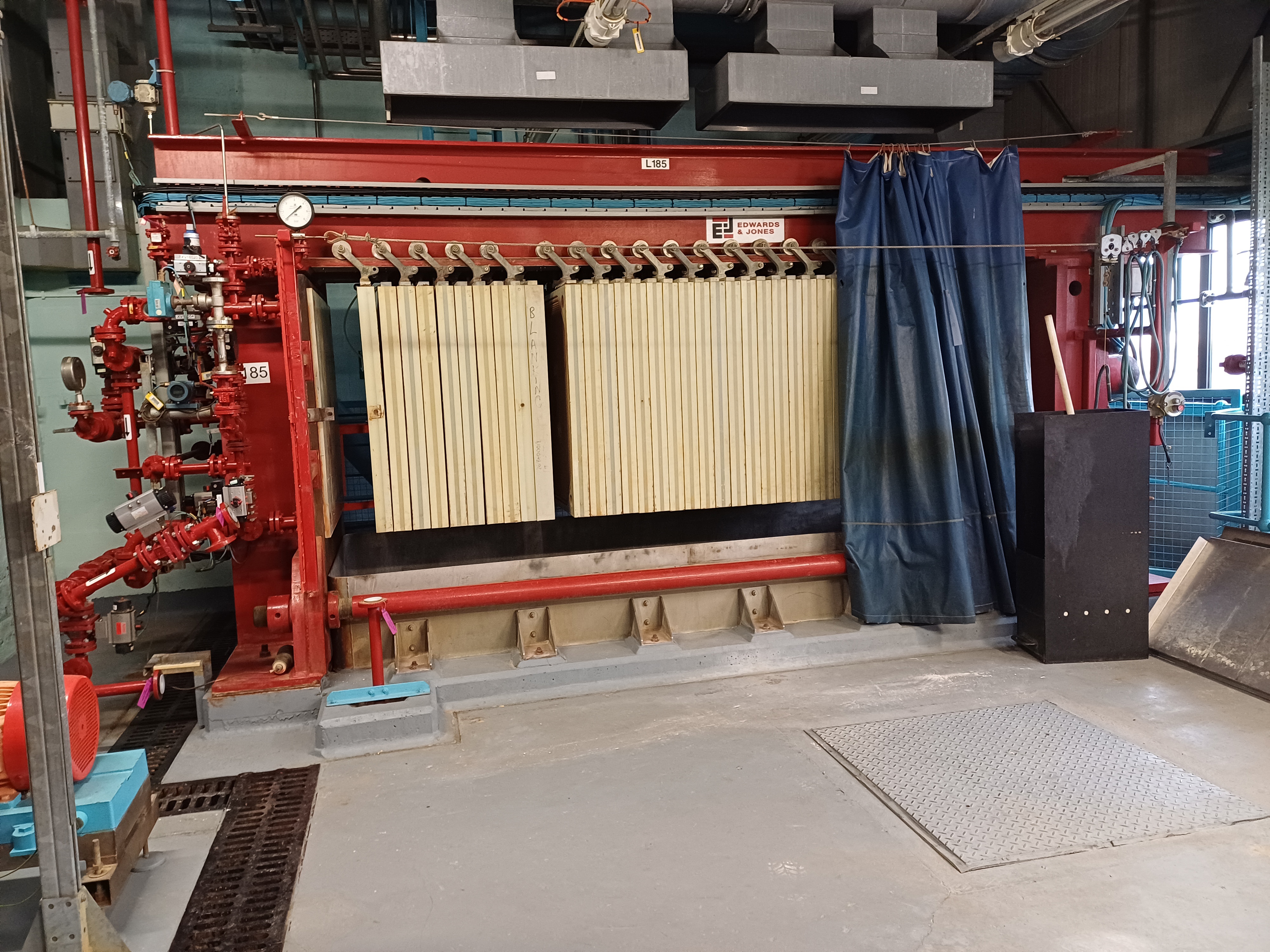

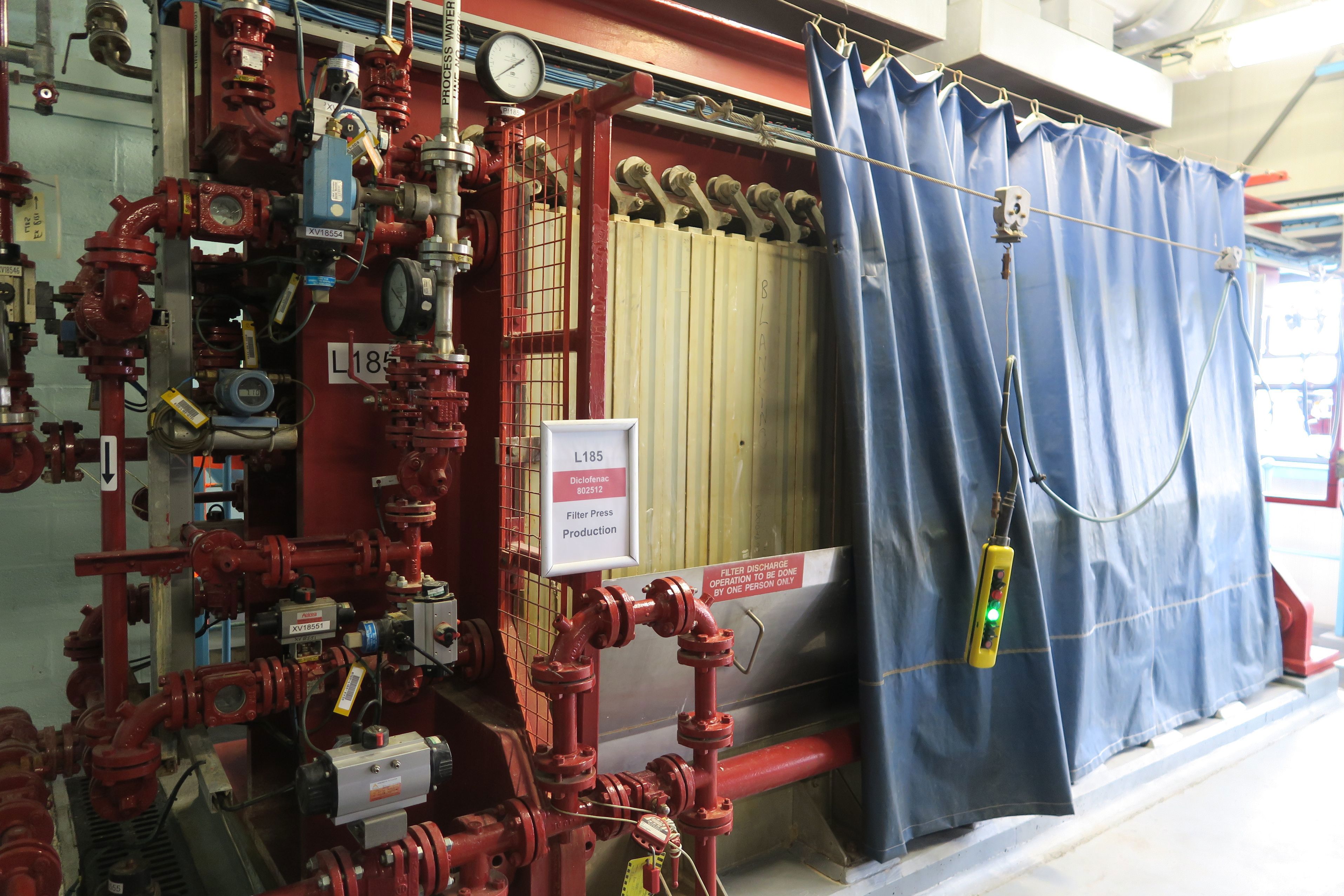

1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548

  • 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548
  • 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548
  • 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548
  • 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548
  • 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548
  • 1200mm x 1200mm Polypropylene Membrane Plate Beam Filter Press,, Manufactured by Edwards and Jones - IPP# 242548
Overview
Filter
Press
Edwards and Jones
A.O.H.C.1212
Used
Polypropylene
Capacity
98 m² (1,050 ft²)
2.1 m3 (72.6 ft3)
Other Specifications
3 bar (43.5 psi)
Yes
Center feed
Yes
membrane squeeze pressure 7 bar, (34) 1200 x 1200mm membrane plates
Skid
Dimensions
6,050 mm (238.5 in)
1,900 mm (74.8 in)
2,700 mm (105.4 in)
Plates
Membrane Plates
34
Polypropylene
1,200 mm (47.2 in)
1,200 mm (47.2 in)
Yes
Yes
Yes
Yes
Automatic
Hydraulics
Yes
7 bar (101.5 psi)
MOC
carbon steel
  • approx 98 square meter filtration area
  • fully automatic operation,
  • plates supported on an overhead beam,
  • 33 Lenser membrane plates and 2-end plates
  • caulked and gasketed clothe
  • cake thickness 50mm,
  • drainage via internal 4-corner port,
  • plate shifter hydraulic driven by a powerpack with a 1.1kw motor,
  • powerpack for pressure mechanism with a 4kw 3/50/415 volt, 1430 rpm EEx d IIB T4 motor
  • electrics are hazardous zone 1 Exd II A & B Temperature class 4
