Stainless Steel 316L DEC ISOTUBE glovebox drum discharge unit with drum tipper - Pharma - IPP# 242553

Type: Pharma

Manufacturer: DEC

Model: ISOTUBE

Condition: Used

Material: Stainless Steel 316L

• glovebox & drum discharge unit,
• manufactured by DEC (Dietrich Engineering Consultants sa),
• 800 liter volume,
• pressure -500/+500 Pa,
• temperature 0/+60 degrees C,
• all rated CE Ex II 3G c IIB T4, II 3D c IIIB T 120 degrees C,

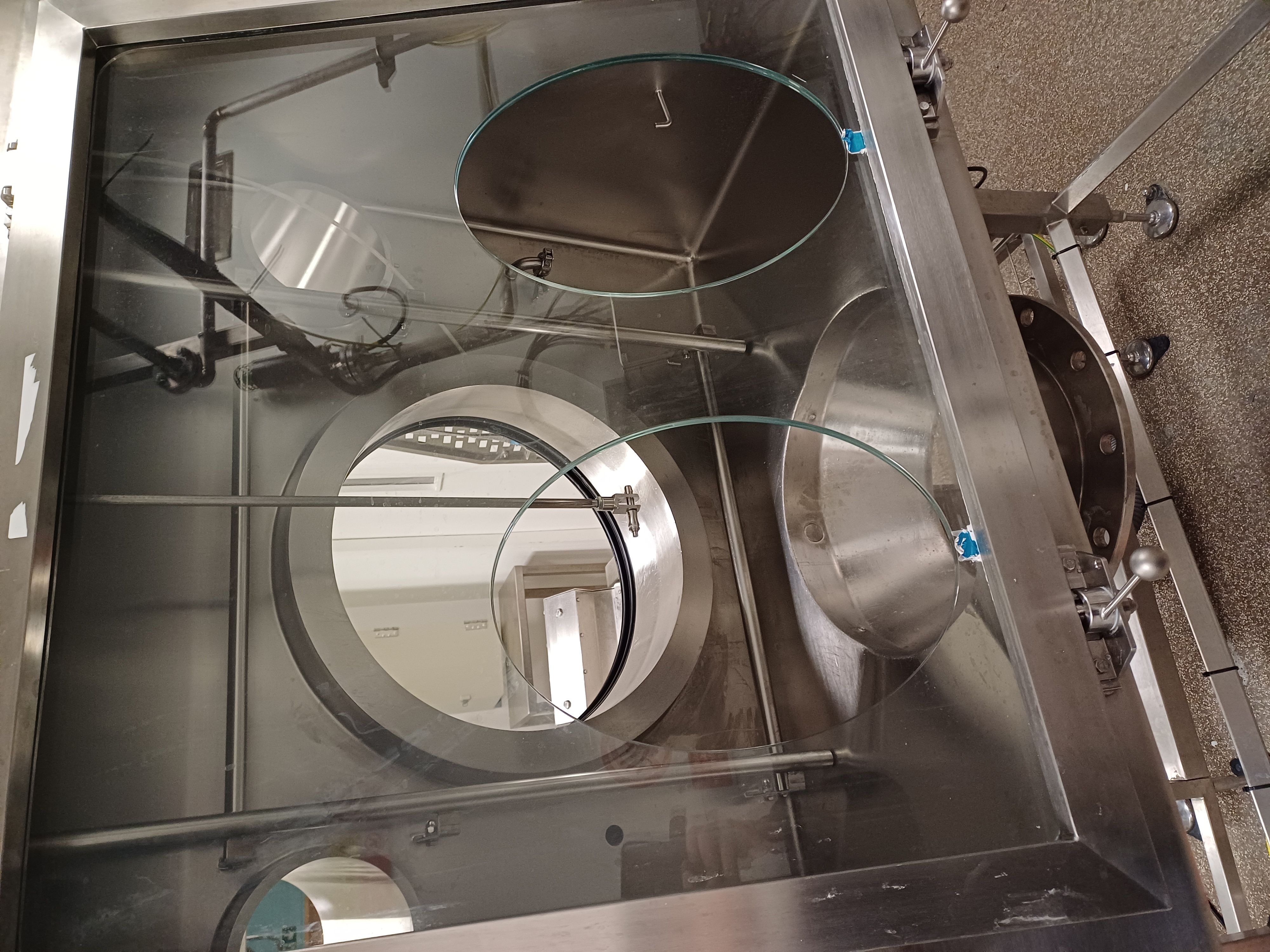

• hinged glass front with 2-handholes,

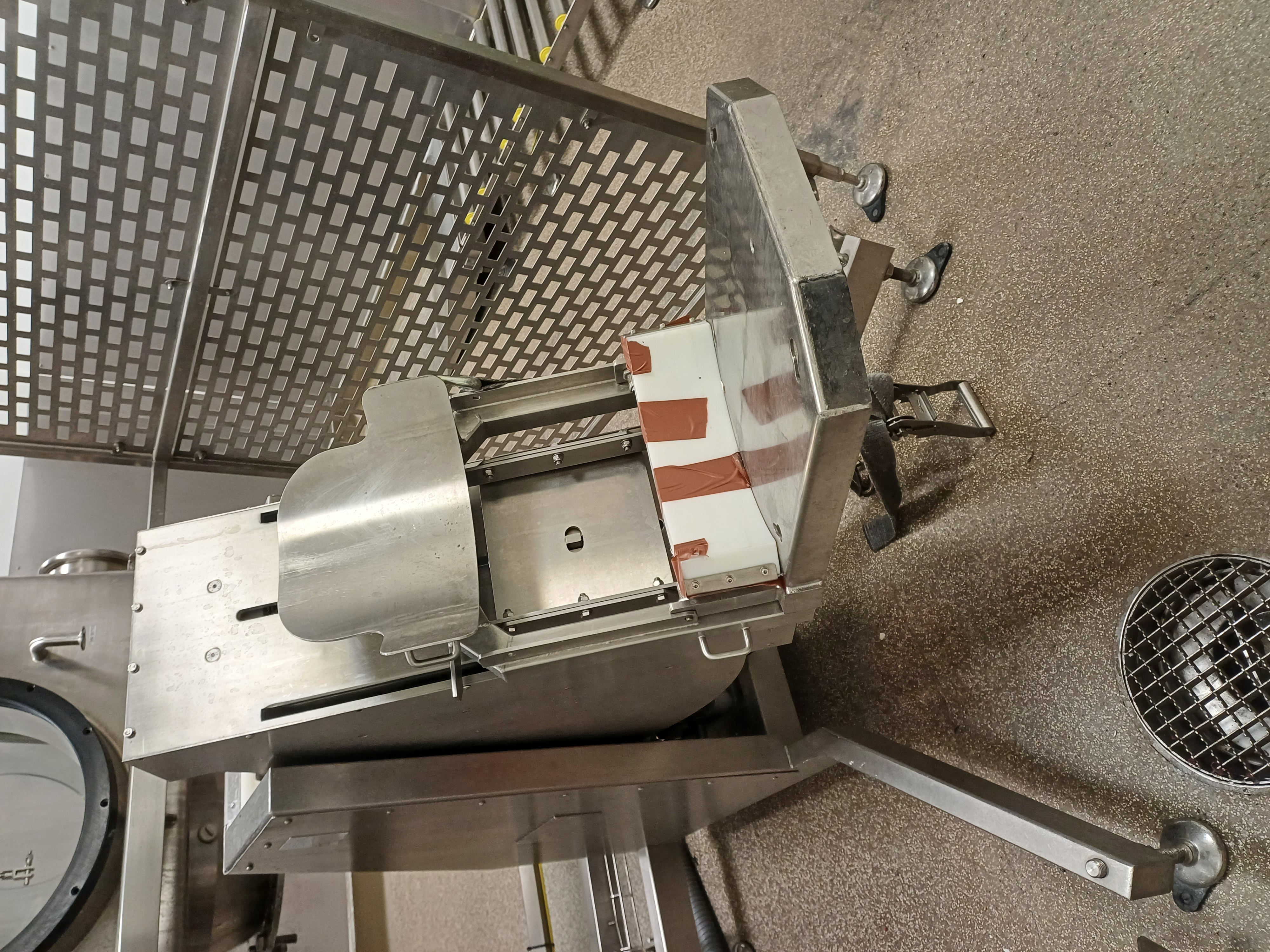

• rear mounted 316L stainless steel drum tipper, serial #LDV-403, 220kg dead weight, 80kg payload max,
• built on control panel,
• mounted on stainless steel legs,

(1) 300m3/hr oil lubricated rotary vane vacuum pump, manufactured by Busch, type RA 0305 D 5EB, serial #C1620000019, 0.1 hPa (mbar), direct driven by 7.5kW, 3/50/690/400/415 volt, 1463/1467 rpm Ex de IIB TA4 ATEX motor

Type: Pharma

Manufacturer: DEC

Model: PTS 200/2-N

Condition: Used

Material: Stainless Steel 316L

Pressure Rating: 3.5 bar (50.8 psi)

Temperature Rating: 160 °C (320 °F)

• Twin PTS
• pressure max -1/3.5 bar @ 160 degrees C,
• volume 2 x 19 liter
• internal finish Grit 320, Ra<0.5 micron
• external finish Electropolished
• bolt dished top
• bolt coned bottom
• mounted on a carbon steel frame
• design code: PED Group 1, Cat I, Module A

Volume: 38 L (10 gallons).

Type: Pharma

Manufacturer: DEC

Model: ISOCHARGE

Condition: Used

Material: Stainless Steel 316L

• 316L stainless steel (wetted parts) glovebox isolator drum discharge unit,
• manufactured by Dietrich Engineering Consultants SA (DEC),
• Ex II 3G IIB T3 IP55 external, Ex II 2GD IIB T4 135 degrees C IP65 internal,
• 1900 liter volume,
• max pressure -500/+500 Pa,
• max temperature +10/+60 degrees C,
• CE,
• with bin lift,

Type: Pharma

Subtype: Biotech Chromatography

Manufacturer: Millipore

Model: Quickscale

Condition: Used

Material: Stainless Steel 316L

Flow Rate: 0.001 m3/h (0.004 GPM)

Is it an Individual Column ?: Yes

• Mounted on legs with casters.

Diameter: 250 mm (9.8 in). Straight Side: 550 mm (21.7 in). Pressure Rating: 5 bar (72.5 psi). Volume: 25.8 L (6.8 gallons).
