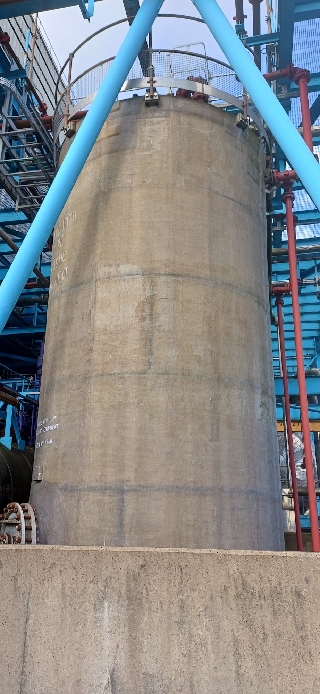

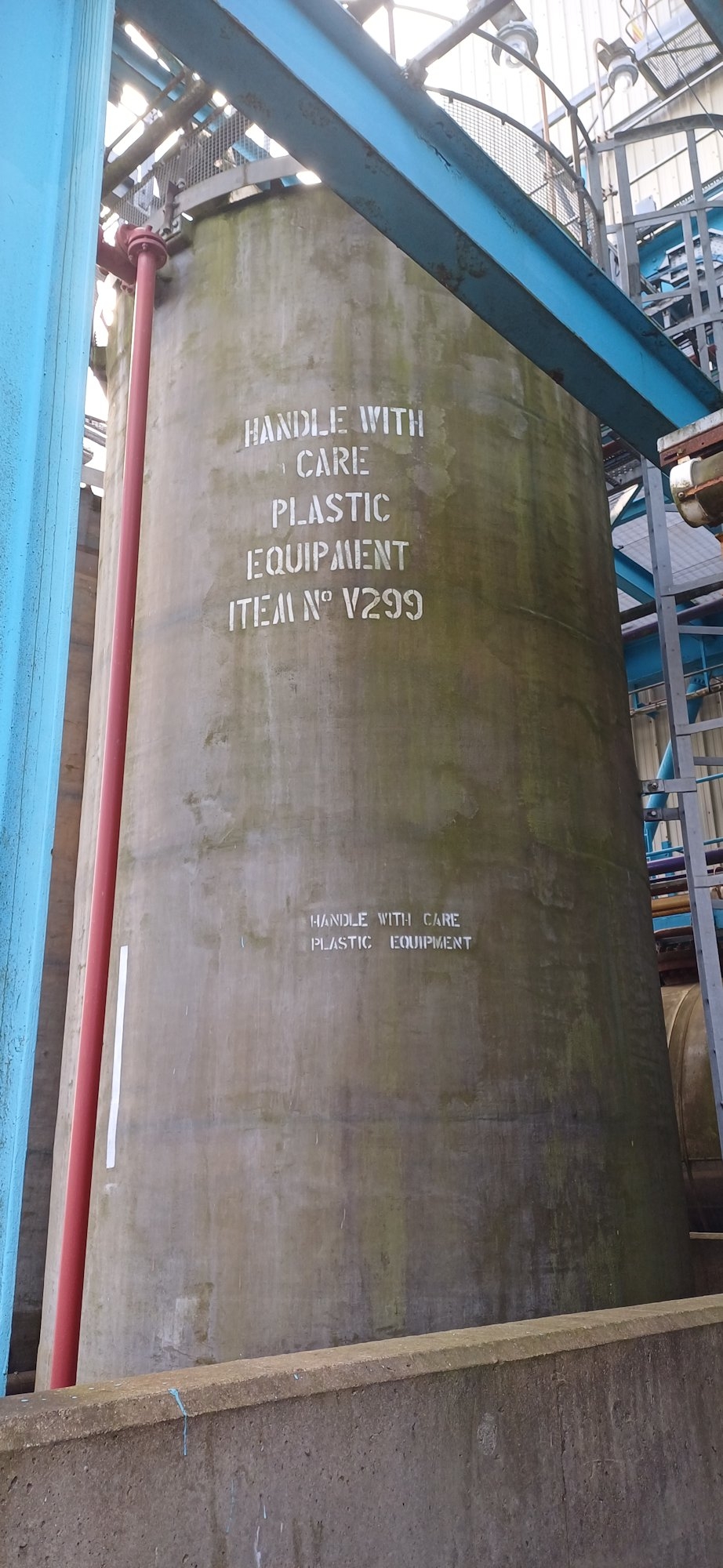

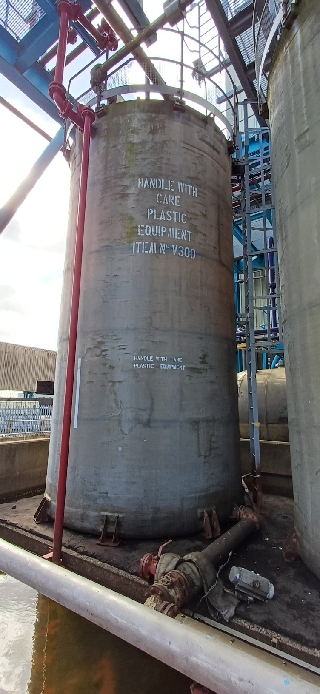

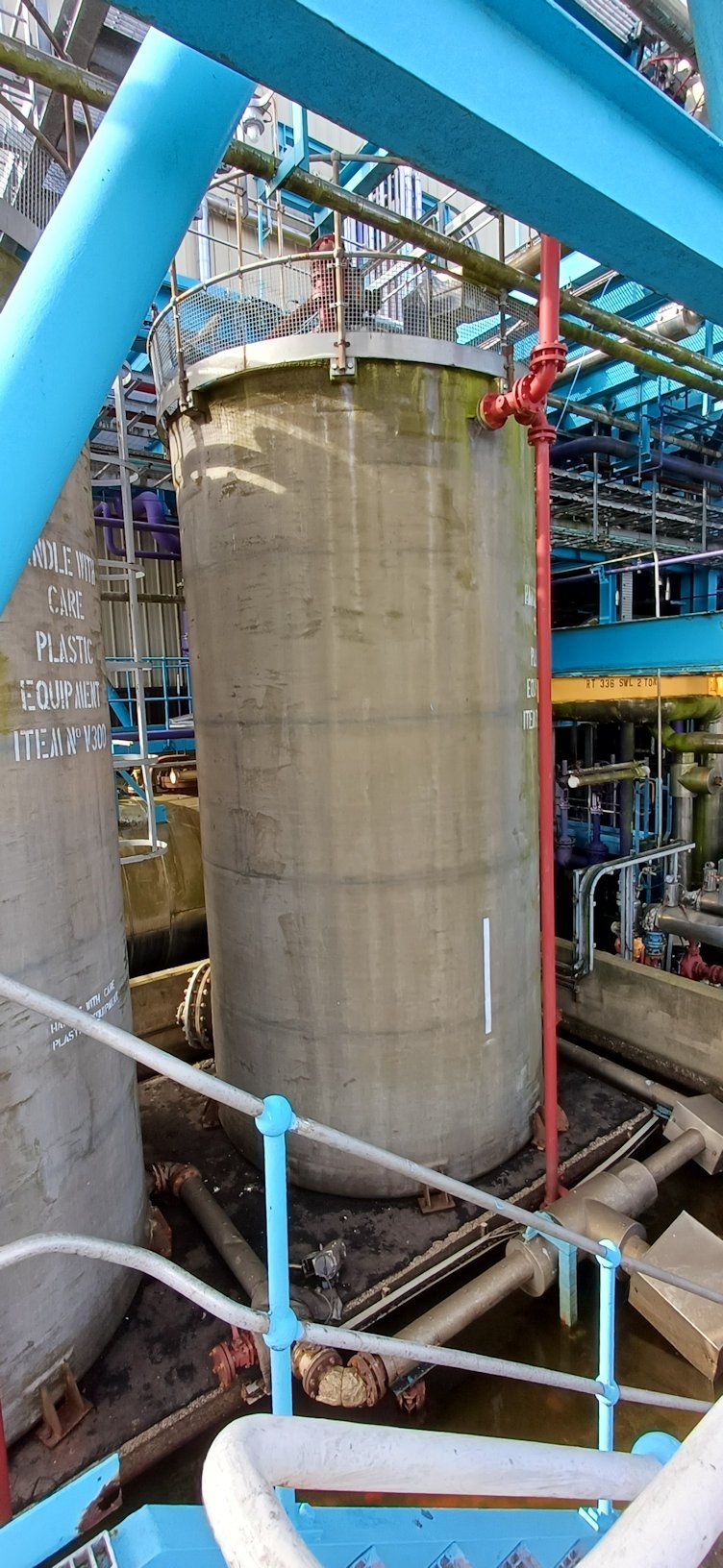

Fiberglass Plastic Construction Tank - IPP# 242838

Type: Tank

Manufacturer: Plastic Construction

Condition: Used

Material: Fiberglass

Capacity (Design): 36,000 L (9,500 gallons)

Orientation: Vertical

• design pressure 0.1 barg @ -15/100 degrees C
• design code B.S 4994-1987 CAT 1

Internal Pressure: 0.1 bar (1.45 psi). Internal Temperature: 100 °C (212 °F). Support: Base Mounted.

Type: Tank

Manufacturer: Funken

Condition: Used

Material: Plastic

Capacity (Design): 1,600 L (422.7 gallons)

Orientation: Vertical

• Level tube on side

Diameter: 1,200 mm (47.2 in). Straight-side Length: 1,500 mm (59.1 in). Support: Pads.

Type: Tank

Manufacturer: Formoplast Kunststofftechnik GmbH

Model: PE-HD

Condition: Used

Material: Plastic

Capacity (Design): 30,000 L (7,950 gallons)

Orientation: Vertical

• Hydrostatic pressure @ 30 degrees C
• flow rate 72m³/h

Diameter: 3,000 mm (118.1 in). Straight-side Length: 4,200 mm (165.4 in). Internal Temperature: 30 °C (86 °F).

Type: Tank

Condition: Used

Material: Plastic

Capacity (Design): 1,200 L (317 gallons)

Orientation: Vertical

• Tank with bunding level tube on side.

Diameter: 1,100 mm (43.3 in). Straight-side Length: 1,400 mm (55.1 in). Internal Temperature: . Support: Base Mounted.
