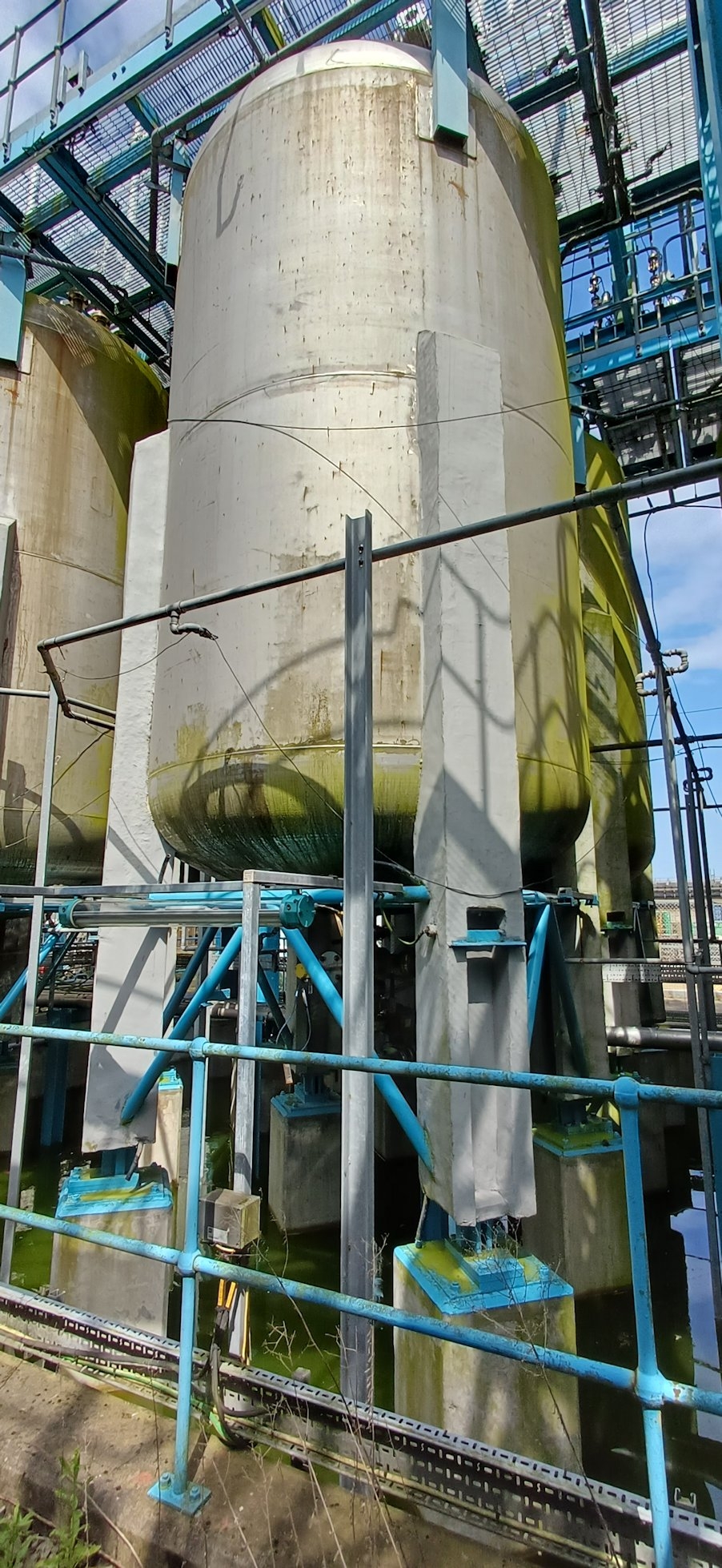

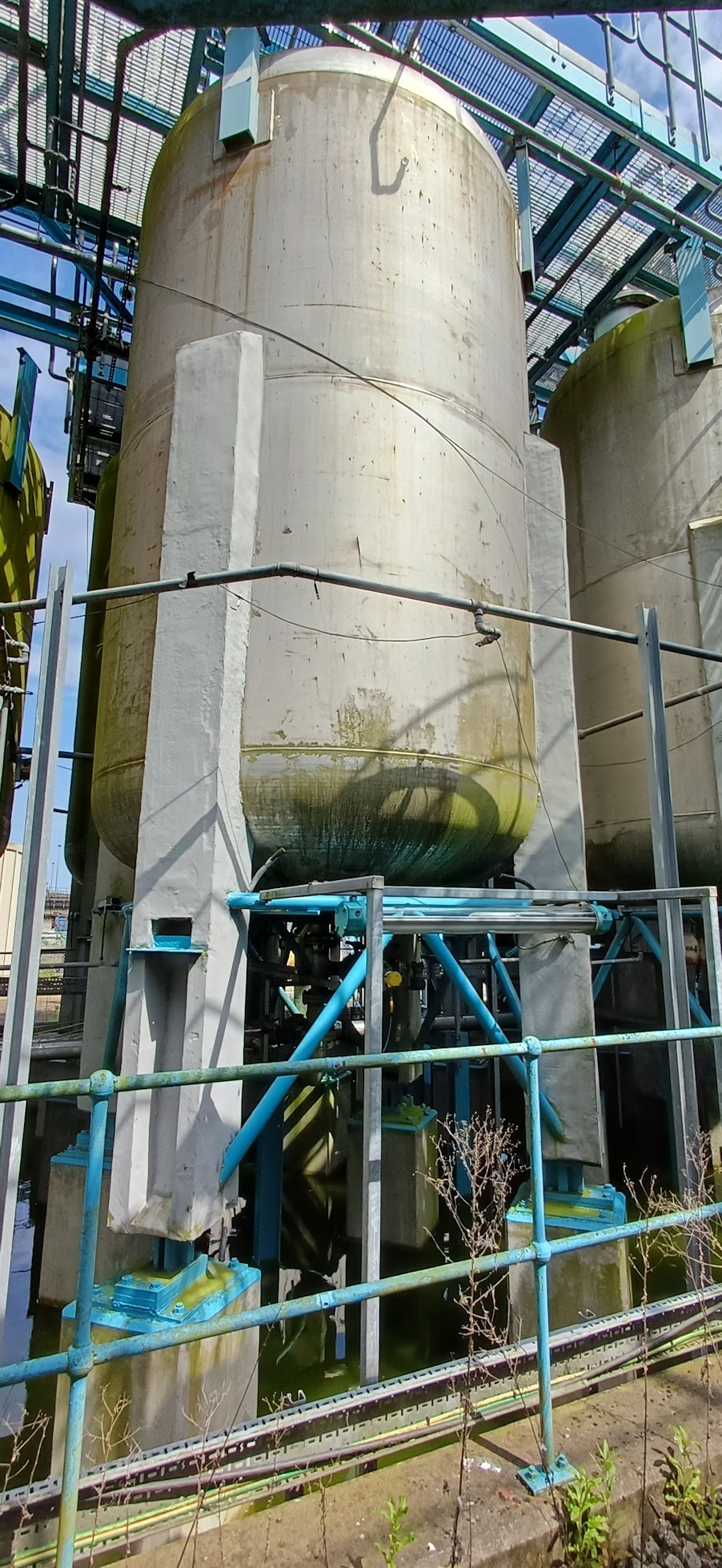

Stainless Steel 316L Cookson & Zinn Ltd Tank - IPP# 242875

Type: Tank

Manufacturer: Cookson & Zinn Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 34,000 L (9,000 gallons)

Orientation: Vertical

• design pressure 0.17/3.5 bar @ -15/100 degrees C,

(1) 10 m3/hr @ 35m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen Ag, serial #06-00784/51640, type MKP 40-25-160, pressure 16 bar @ -30/200 degrees C, differential pressure 5.5 bar, NPSH 1.2m, driven by 5.5kw 3/50/400 volt 2911 rpm IP65 Eex de IIBT4 ATEX motor, magnetic drive, openings suction 32mm, discharge 25mm, mounted on a baseplate

Diameter: 3,000 mm (118.1 in). Straight-side Length: 4,350 mm (171.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 100 °C (212 °F). Support: Legs.

Type: Tank

Manufacturer: Cookson & Zinn Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 34,000 L (9,000 gallons)

Orientation: Vertical

• With stainless steel centrifugal pump.

Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 100 °C (212 °F). Support: Legs.

Type: Tank

Manufacturer: Cookson & Zinn Ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 34,000 L (9,000 gallons)

Orientation: Vertical

• design pressure 0.17/3.5 bar @ -15/100 degrees C,

(1) 10 m3/hr @ 35m head 316 stainless steel centrifugal pump, manufactured by CP Pumpen Ag, serial #06-00784/51642, type MKP 40-25-160, pressure 16 bar @ -30/200 degrees C, differential pressure 5.5 bar, NPSH 1.2m, driven by 5.5kw 3/50/400 volt 2911 rpm IP65 Eex de IIBT4 ATEX motor, magnetic drive, openings suction 32mm, discharge 25mm, mounted on a baseplate

Diameter: 3,000 mm (118.1 in). Straight-side Length: 4,350 mm (171.7 in). Internal Pressure: 3.5 bar (50.8 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Industrial Process Equipment Corp.

Model: Knock Out

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 283.9 L (75 gallons)

Orientation: Vertical

• Type: knock out pot
• Customer: Nash Kinema Vessel designed for non-lethal and non-corrosive service.

Diameter: 482.6 mm (19 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 10.3 bar (150 psi). Internal Temperature: 204.4 °C (400 °F). Support: Base Mounted.
