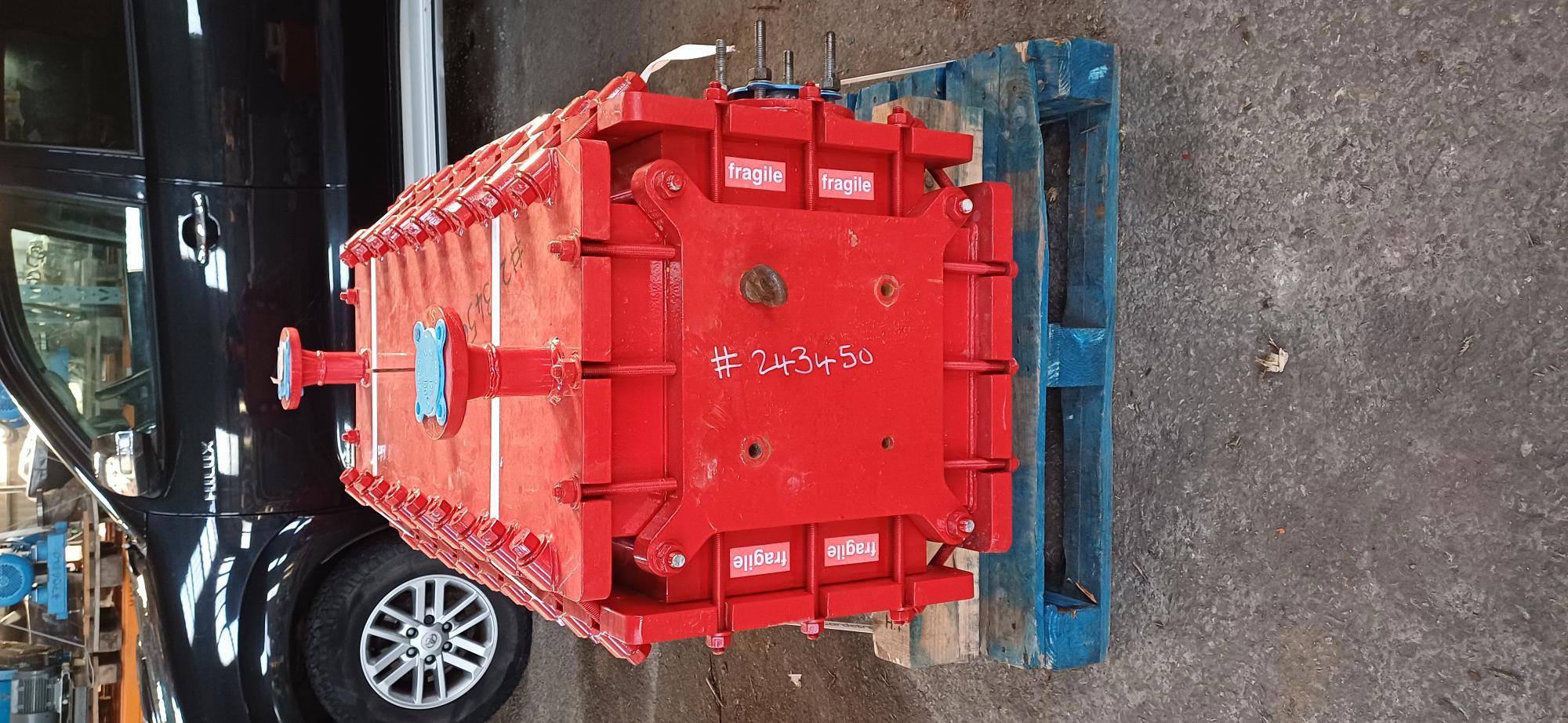

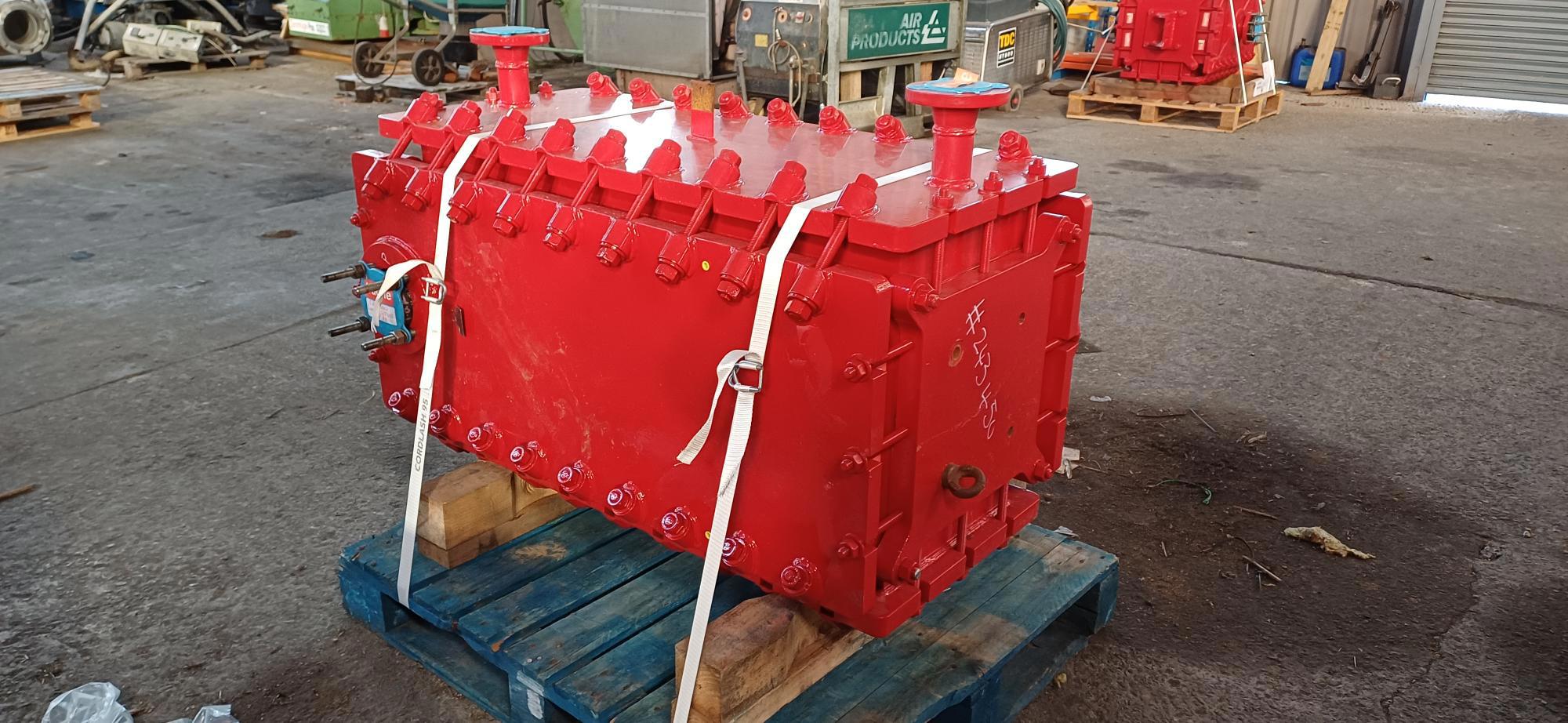

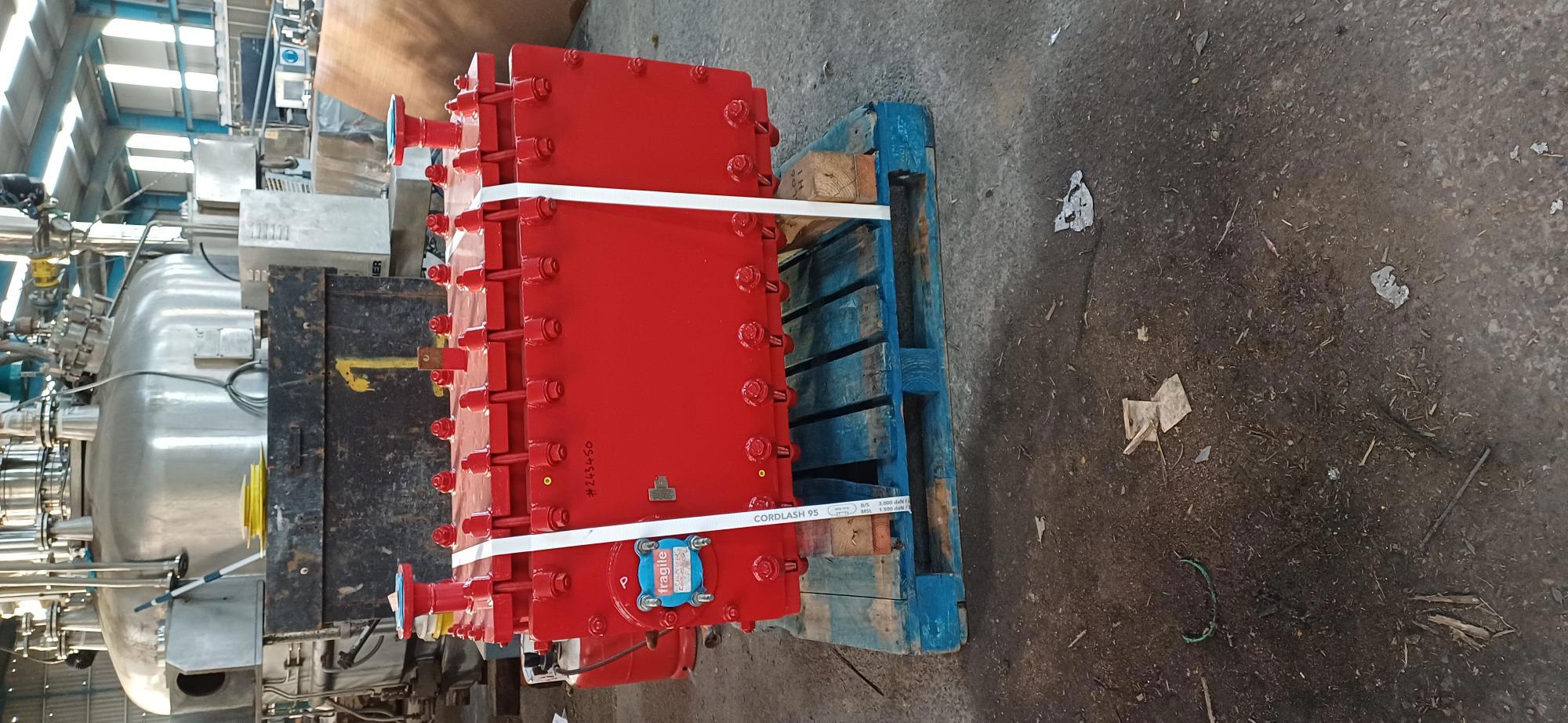

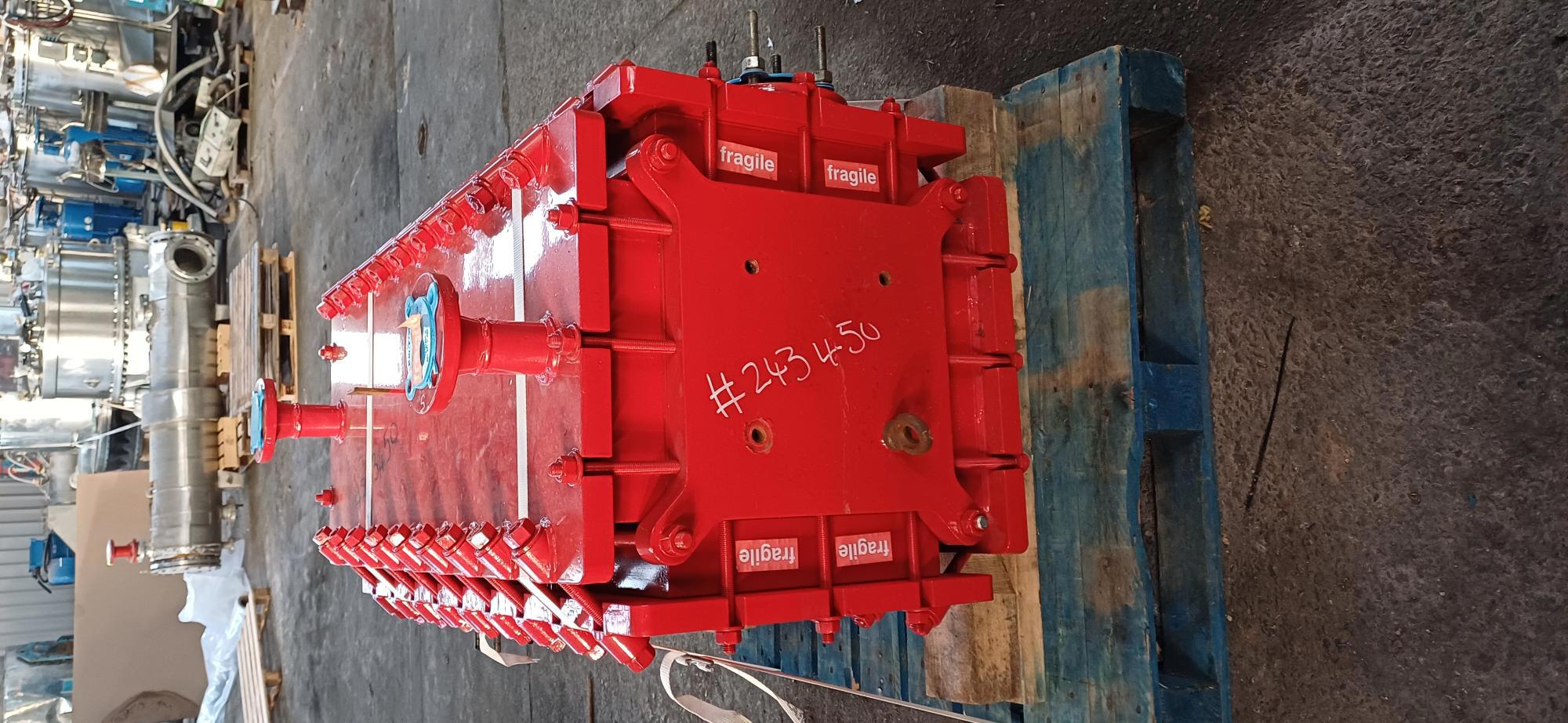

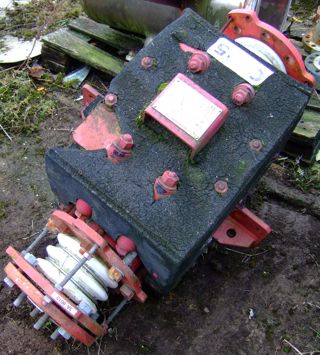

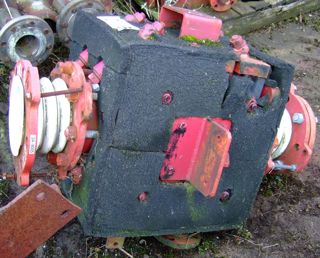

Name: Graphite Block Heat Exchanger

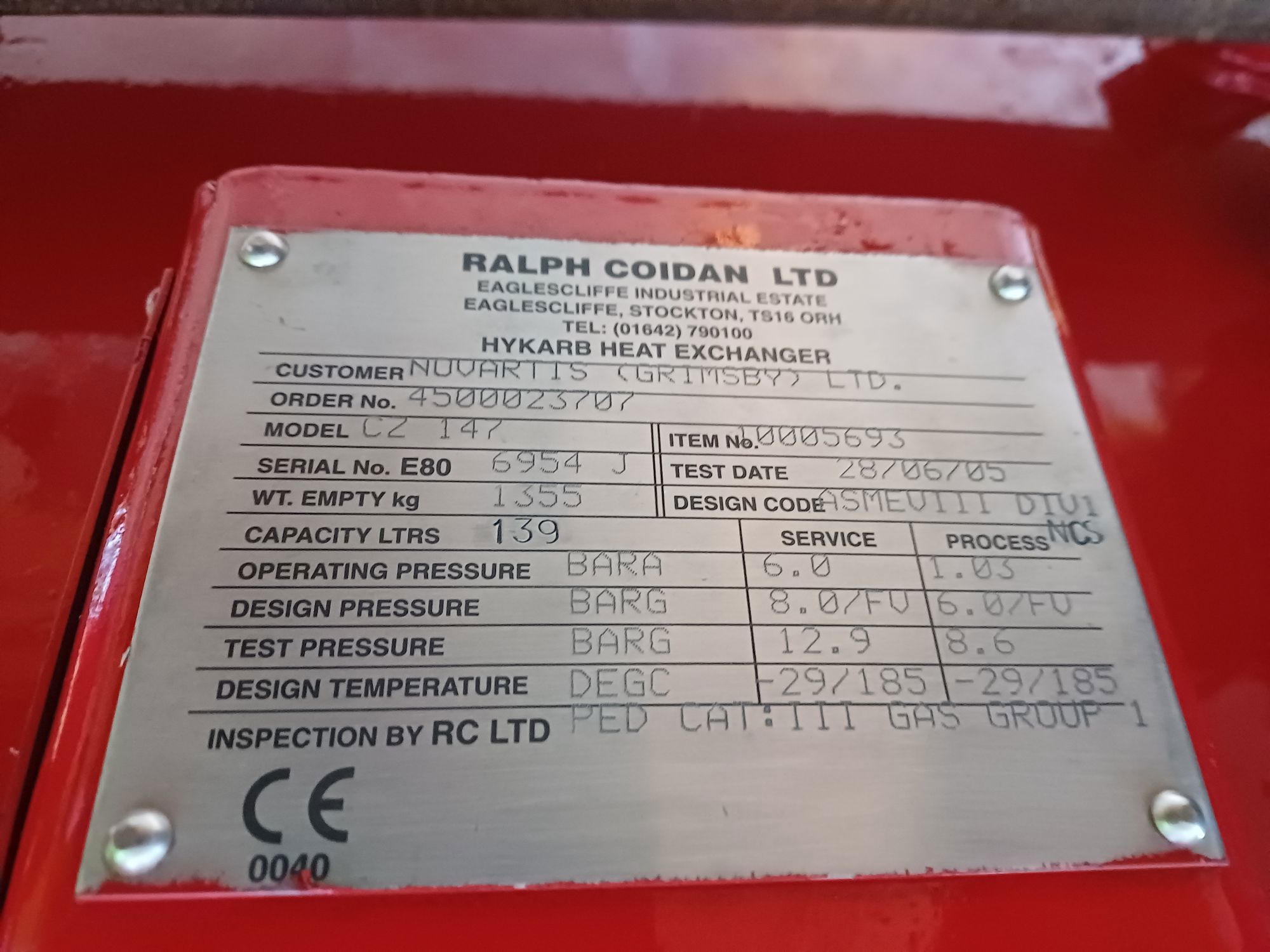

Brand: Ralph Coidan
SKU: 243450

Type:

Heat Exchanger

Subtype:

Block

Manufacturer:

Ralph Coidan

Model:

CZ 147

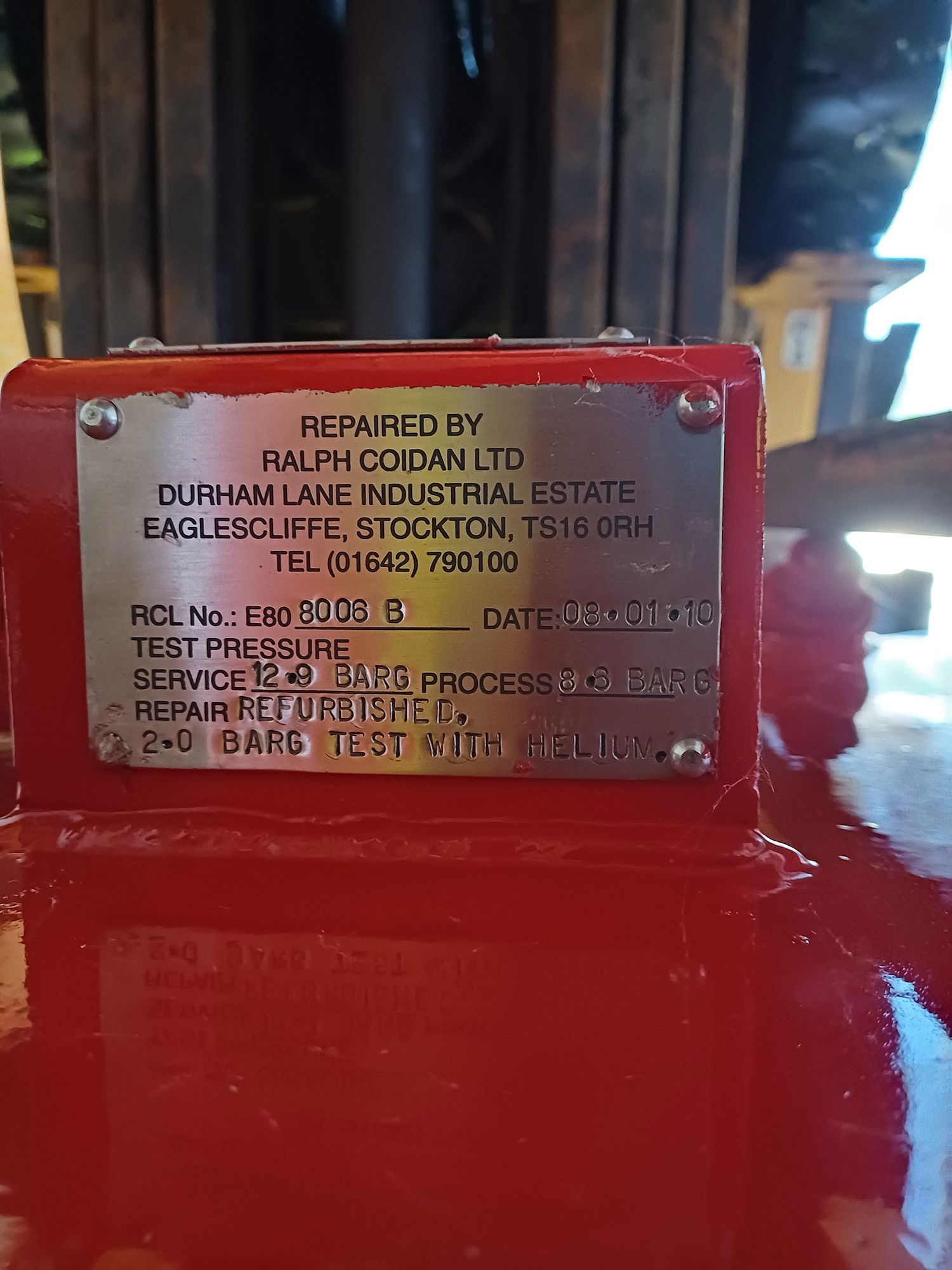

Condition:

Refurbished/Rebuilt

Material:

Graphite

Heat Transfer Surface Area:

13.6 m² (146.4 ft²)

Orientation:

Vertical

Shell Pressure:

8 bar (116 psi)

Shell Temperature:

185 °C (365 °F)

Shell Material:

Carbon Steel

Vacuum:

Yes

Shell Diameter:

Head Material:

Graphite

Length:

650 mm (25.6 in)

Nozzle Schedule:

Four nozzles 76 mm

Block Type:

Karbate

Process Pressure:

6 bar (87 psi)

Pack Material:

Graphite

Process Temperature:

185 °C (365 °F)

Service Side Passes:

Process Side Passes:

Service Side Capacity:

96 L (25.4 gallons)

Process Side Capacity:

43 L (11.4 gallons)

Additional Info:

Graphite Block Heat Exchanger - IPP# 243450
