cubic block heat exchanger process side is 2-pass with (2160) slots, 9.5mm x 3mm, service side is multi-stage with (756) 9.5mm diameter tubes can be used vertical or horizontal. Heat Transfer Surface Area: 9 m² (96.9 ft²). Orientation: Horizontal. Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 165 °C (329 °F). Vacuum: Yes. Length: 765 mm (30.1 in). Nozzle Schedule: openings 1-240mm, 2-150mm, 2-100mm. Process Pressure: 7 bar (101.5 psi). Process Temperature: 165 °C (329 °F).
Sigri cylindrical graphite block heat exchanger. Heat Transfer Surface Area: 7 m² (75 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Shell Diameter: 457.2 mm (18 in). Length: 1,219 mm (48 in). Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).
cylindrical block tubes rated 100 psi & FV @ -20/+400 degrees F. 1 pass axial, 6 pass radial Heat Transfer Surface Area: 5.8 m² (62.5 ft²). Orientation: Vertical. Shell Pressure: 12.8 bar (185 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 381 mm (15 in). Length: 2,286 mm (90 in). Nozzle Schedule: Openings: Tube side 1-3", 1-2". Shell side 2-1 1/2", 1-2".. Process Pressure: 6.9 bar (100 psi). Process Temperature: 204.4 °C (400 °F).

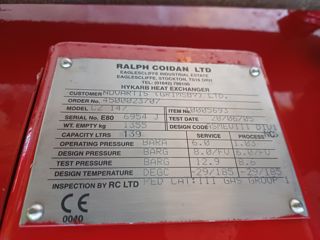

asset #10005693 design code: ASME VIII DIV I, PED CAT III gas group 1, CE0040 Heat Transfer Surface Area: 13.6 m² (146.4 ft²). Orientation: Horizontal. Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 185 °C (365 °F).
design pressure service side 6 bar @ -29/165 degrees C design code ASME VIII DIV 1, PED CAT 111 GAS GROUP 1 Heat Transfer Surface Area: 19.5 m² (209.9 ft²). Orientation: Horizontal. Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 165 °C (329 °F).
design code ASME V111 1988, Heat Transfer Surface Area: 20 m² (215.3 ft²). Orientation: Horizontal. Shell Pressure: 6 bar (87 psi). Shell Temperature: 180 °C (356 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 180 °C (356 °F).
asset #10005697 design code: ASME VIII DIV 1 PED CAT III gas group 1 Heat Transfer Surface Area: 17 m² (183 ft²). Orientation: Horizontal. Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 185 °C (365 °F).
Hykarb graphite block heat exchanger design pressure service side: 8 barg @ -29/185 degrees C, service side: 6 barg + full vacuum @ -29/185 degrees C design code: ASME VIII DIV 1, PED CAT 111 gas group 1, CE0040, Heat Transfer Surface Area: 19.5 m² (209.9 ft²). Orientation: Horizontal. Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 185 °C (365 °F).
Re rated by KC Mechanical at 75 psi at 340 degrees F KC Mechanical serial # 1220.(2-2017), Orientation: Horizontal. Shell Material: Carbon Steel. Process Pressure: 6.9 bar (100 psi). Process Temperature: 182.2 °C (360 °F).
design code: ASME VIII DIV 1 PED CAT II, gas group 1, Heat Transfer Surface Area: 11.6 m² (125.3 ft²). Orientation: Horizontal. Shell Pressure: 6 bar (87 psi). Shell Temperature: 170 °C (338 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 170 °C (338 °F).

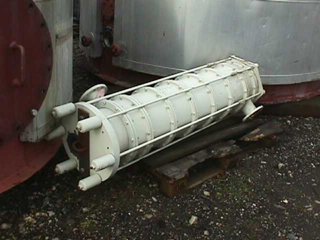

cyclindrical graphite type: BS Liquid capacity 151.6 liter 12 blocks, passes passes service side 3, process 1 Heat Transfer Surface Area: 10 m² (107.6 ft²). Orientation: Vertical. Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Length: 6,150 mm (242.1 in). Nozzle Schedule: openings: (1)=50mm inside diameter, (2)=80mm inside diameter, (2)=60mm inside diameter.. Process Pressure: 9 bar (130.5 psi). Process Temperature: 165 °C (329 °F).

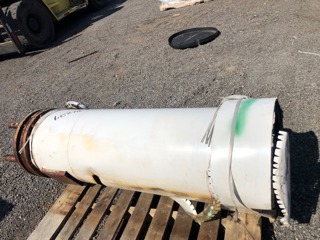

cylindrical (1) block (2) vert mounting brackets. Heat Transfer Surface Area: 8 m² (86.1 ft²). Orientation: Vertical. Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Diameter: 457.2 mm (18 in). Length: 1,219 mm (48 in). Nozzle Schedule: Openings: 2-8", 2-4". Process Pressure: 6 bar (87 psi). Process Temperature: 165 °C (329 °F).
(1) block, single pass. Heat Transfer Surface Area: 0.8 m² (8.6 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 165 °C (329 °F). Length: 508 mm (20 in). Nozzle Schedule: Openings: 2-25mm. Process Pressure: 1.72 bar (24.9 psi). Process Temperature: 165 °C (329 °F).
cylindrical block Tube quantity: 59 Tube dimensions: 18mm x 1410mm long Heat Transfer Surface Area: 5 m² (53.8 ft²). Orientation: Vertical. Shell Pressure: 2.5 bar (36.3 psi). Length: 1,410 mm (55.5 in). Process Pressure: 2.5 bar (36.3 psi).

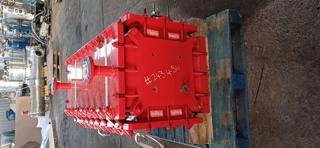

cubic block (1) block Heat Transfer Surface Area: 2 m² (21.5 ft²). Orientation: Horizontal. Length: 558.8 mm (22 in). Nozzle Schedule: Openings: 2-5", 2-3".
monobloc Single pass process side, 3 pass fluid side. (4) monobloc element design. 2075mm high x 455mm x 395mm (square) Volume process side 22.4 liter; fluid side 38.4 liter. Can be used vertical or horizontal Heat Transfer Surface Area: 5.8 m² (62 ft²). Orientation: Horizontal. Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 120 °C (248 °F). Vacuum: Yes. Length: 455 mm (17.9 in). Nozzle Schedule: Openings: process side 2-100mm; fluid side 2-80mm. Process Pressure: 5 bar (72.5 psi). Process Temperature: 170 °C (338 °F).
monobloc Single pass process side, 3 pass fluid side. (4) monobloc element design. 2075mm high x 455mm x 395mm (square) Volume process side 22.4 liter, fluid side 38.4 liter. Can be used vertical or horizontal. Heat Transfer Surface Area: 5.8 m² (62.4 ft²). Orientation: Horizontal. Shell Pressure: 4 bar (58 psi). Shell Temperature: 120 °C (248 °F). Length: 455 mm (17.9 in). Nozzle Schedule: Openings: process side 2-100mm; fluid side 2-80mm. Process Pressure: 4 bar (58 psi). Process Temperature: 170 °C (338 °F).
Heat Transfer Surface Area: 5.2 m² (56 ft²). Orientation: Horizontal. Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 165 °C (329 °F).
Carbon block heat exchanger Block dimensions 620mm long x 340mm wide x 340mm high. Heat exchanger was refurbished by Ralph Coidan, ref # 31114D, test pressure service side 7.8 bar, process 7.8 bar Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 180 °C (356 °F). Vacuum: Yes. Length: 620 mm (24.4 in). Nozzle Schedule: openings 4-50mm, 1-125mm. Process Pressure: 5.2 bar (75 psi). Process Temperature: 180 °C (356 °F).
Heat Transfer Surface Area: 1.86 m² (20 ft²). Shell Pressure: 5.2 bar (75.4 psi). Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 200 °C (392 °F).
Nozzle Schedule: openings 2-150mm, 2-100mm.
Hykarb carbon cubic block cross flow heat Exchanger design pressure process side 7.8 barg @ 0/160 degrees C service side 15 barg @ 0/160 degrees C operating pressure process side 5.2 barg + full vacuum @ -0.185 degrees C service side 10 barg @ 2.417 degrees C 24 pass on process side, 10 pass on service side, unit made from (4) carbon HP2/20 block elements, 536mm block length Heat Transfer Surface Area: 10 m² (107.6 ft²). Orientation: Horizontal. Shell Pressure: 10 bar (145 psi). Shell Temperature: 160 °C (320 °F). Nozzle Schedule: openings: process side 2- 50mm, service side 2-50mm. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 160 °C (320 °F).
Hykarb cylindrical block 8-module, 3-pass design design pressure process side 5 barg @ 100 degrees C, service side 5.2 barg @ 100 degrees C Heat Transfer Surface Area: 21 m² (226 ft²). Orientation: Vertical. Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 36 °C (96.8 °F). Shell Material: Carbon Steel. Shell Diameter: 609 mm (24 in). Head Material: Carbon Steel. Length: 4,588 mm (180.6 in). Nozzle Schedule: openings process side; 2-150mm, service side 2-100mm. Process Pressure: 4 bar (58 psi). Process Temperature: 61 °C (141.8 °F).
cylindrical design pressure process side 2.1 bar @ 15 to 120 deg C service 5.3 bar @ 155 deg C 7-pass on process side, 6-pass service side (2- pass per block, 3-blocks) Heat Transfer Surface Area: 8 m² (86.1 ft²). Orientation: Vertical. Shell Pressure: 4.6 bar (66.7 psi). Shell Temperature: 155 °C (311 °F). Shell Material: Carbon Steel. Shell Diameter: 470 mm (18.5 in). Length: 2,496 mm (98.3 in). Nozzle Schedule: openings: process 2-50mm, 2-25mm, service 2-100mm. Process Pressure: 2.1 bar (30.5 psi). Process Temperature: 120 °C (248 °F).
polybloc graphilor heat exchanger Pressure rated 100FV/150FV psig @ -20 to 350 F. test pressure rated 100FV/150F. Orientation: Vertical. Vacuum: Yes. Process Pressure: 10.3 bar (150 psi). Process Temperature: 176.7 °C (350 °F).
cubic block NJ Spec #NF-206, Heat Transfer Surface Area: 5.1 m² (55 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 182.2 °C (360 °F). Length: 609.6 mm (24 in). Nozzle Schedule: Openings: 1-4", 3-2". Process Pressure: 5.2 bar (75 psi). Process Temperature: 182.2 °C (360 °F).
Great Lakes Carbon Corp. Inlet is 8" reduced to 6", outlet is 2" Diameter is 18" x 68" long with an overall length of 90" Heat Transfer Surface Area: 7.4 m² (80 ft²). Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Length: 1,727 mm (68 in). Nozzle Schedule: Inlet is 8" reduced to 6", outlet is 2". Shell side nozzles are 6".. Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).
cylindrical Hykarb design pressure service side 5.3 barg @-1 0/+60 deg C, process side 3.89 barg + full vac @ -10/+80 deg C Heat Transfer Surface Area: 18 m² (193.8 ft²). Orientation: Horizontal. Shell Pressure: 5.3 bar (76.9 psi). Shell Temperature: 60 °C (140 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Length: 1,143 mm (45 in). Process Pressure: 3.9 bar (56.4 psi). Process Temperature: 80 °C (176 °F).
Service Side, volume 18,7 liters process side, volume 8,7 liters weight 348 kg. Heat Transfer Surface Area: 2.5 m² (26.9 ft²). Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 130 °C (266 °F). Process Pressure: 5 bar (72.5 psi). Process Temperature: 170 °C (338 °F).
cubic 1 graphite block and (2) endplates only Heat Transfer Surface Area: 18.6 m² (200 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 182.2 °C (360 °F). Shell Material: Carbon Steel. Process Pressure: 3.4 bar (50 psi). Process Temperature: 182.2 °C (360 °F).
cubic Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic block graphite heat exchanger. Heat Transfer Surface Area: 4.2 m² (45 ft²). Length: 457.2 mm (18 in).
cubic block graphite heat exchanger Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
Cylindrical 2 Heat Transfer Surface Area: 14.8 m² (158.8 ft²). Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).
cubic block Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic block Heat Transfer Surface Area: 5.3 m² (57 ft²).
cubic block Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
Heat Transfer Surface Area: 4.2 m² (45 ft²).
cubic Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic block Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cubic block graphite heat exchanger Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cylindrical Heat Transfer Surface Area: 14.8 m² (158.8 ft²). Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Diameter: 609.6 mm (24 in). Length: 1,448 mm (57 in). Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).
cubic block graphite heat exchanger Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
Heat Transfer Surface Area: 4.6 m² (50 ft²). Length: 609.6 mm (24 in).
Heat Transfer Surface Area: 5.3 m² (57 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 182.2 °C (360 °F). Length: 609.6 mm (24 in). Nozzle Schedule: Openings: service side 2-2"; process side 2-2". Process Pressure: 5.2 bar (75 psi). Process Temperature: 182.2 °C (360 °F).
Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
Heat Transfer Surface Area: 5.3 m² (57 ft²). Length: 609.6 mm (24 in).
cartridge horizontal cylindrical heat exchanger CE 0040 design pressure service side 7 barg @ 0/+180 degrees C (45 liter), process side 5.2 barg @ 0/+180 degrees C (30 liter) service side passes (row/pass) 8 per shell, process side passes (row/pass) 1 343mm diameter x 1270mm cartridge block length (2) Hykarb end covers with carbon steel pressure plates Heat Transfer Surface Area: 8.4 m² (90 ft²). Orientation: Horizontal. Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Carbon Steel. Shell Diameter: 406 mm (16 in). Nozzle Schedule: openings process side: 1-head with 1-225mm (inlet), 1-head with 1-80mm (vent), 1-40mm (drain), shell: 2-50mm (inlet/vent), 1-40mm (vent), 1-1/2" (drain),. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 180 °C (356 °F).
Polybloc Graphilor Design pressure rated for 100/100 internal pressure rated for rated for FV/350 psi at 350 degrees F Test pressure rated for FV100/100psi Orientation: Vertical. Vacuum: Yes.
Polybloc Graphilor Design pressure rated for 100/100 internal pressure rated for rated for FV/350 psi at 350 degrees F Test pressure rated for FV100/100psi Orientation: Vertical. Vacuum: Yes.
Heat Transfer Surface Area: 22.3 m² (240 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 193.3 °C (380 °F). Shell Material: Carbon Steel. Shell Diameter: 609.6 mm (24 in). Length: 1,448 mm (57 in). Process Pressure: 6.9 bar (100 psi). Process Temperature: 193.3 °C (380 °F).
Heat Transfer Surface Area: 3 m² (32.3 ft²). Orientation: Vertical. Shell Diameter: 400 mm (15.7 in). Length: 800 mm (31.5 in). Nozzle Schedule: Openings: service side 2-75mm; process side 2-125mm. Process Pressure: 6 bar (87 psi). Process Temperature: 165 °C (329 °F).
cylindrical polybloc heat exchanger Heat Transfer Surface Area: 1.86 m² (20 ft²). Shell Material: Carbon Steel. Length: 1,016 mm (40 in). Nozzle Schedule: Openings: 2-5" (125mm), 2-4" (100mm).
order # 1994129. Heat Transfer Surface Area: 1.22 m² (13.1 ft²). Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 50 °C (122 °F). Vacuum: Yes. Process Pressure: 3 bar (43.5 psi). Process Temperature: 150 °C (302 °F).
Heat Transfer Surface Area: 3 m² (32.3 ft²). Orientation: Vertical. Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Diameter: 400 mm (15.7 in). Length: 800 mm (31.5 in). Nozzle Schedule: Openings: service side 2-75mm; process side 2-125mm. .
cylindrical block Heat Transfer Surface Area: 1.86 m² (20 ft²). Orientation: Vertical. Shell Material: Carbon Steel. Shell Diameter: 304.8 mm (12 in). Length: 1,524 mm (60 in). Nozzle Schedule: Openings: 1-5" (125mm), 3-4" (100mm). .
cylndircal block exchanger (6) blocks. Heat Transfer Surface Area: 1.95 m² (21 ft²). Shell Pressure: 6.1 bar (88 psi). Shell Temperature: 165.6 °C (330 °F). Length: 228.6 mm (9 in). Nozzle Schedule: Openings: process 2-4" (100mm).. Process Pressure: 3 bar (44 psi). Process Temperature: 165.6 °C (330 °F).
polybloc graphilor heat exchanger Pressure Rating: 100FV/150FV Temperature Range: -20 to 350 F Orientation: Vertical. Vacuum: Yes. Process Pressure: 10.3 bar (150 psi). Process Temperature: 176.7 °C (350 °F).
Type: Polybloc Graphilor Heat Exchanger Orientation: Vertical. Vacuum: Yes. Nozzle Schedule: Nozzle schedule (2) 3" nozzles.. Process Pressure: 8.6 bar (125 psi). Process Temperature: 176.7 °C (350 °F).
polybloc graphilor heat exchanger, test pressure rated 100FV/150F. Orientation: Vertical. Vacuum: Yes. Process Pressure: 10.3 bar (150 psi). Process Temperature: 176.7 °C (350 °F).
Carbone polybloc heat exchanger
Type: Vertical Polybloc Graphilor heat exchanger Heat Transfer Surface Area: 5.1 m² (55 ft²). Orientation: Vertical. Shell Pressure: 8.6 bar (125 psi). Shell Temperature: 176.7 °C (350 °F). Vacuum: Yes. Shell Diameter: 1,060 mm (41.8 in). Length: 1,060 mm (41.8 in). Nozzle Schedule: (2) 4" nozzles.
Process side 3/8" ID tubes, Single block, single pass. Heat Transfer Surface Area: 4.6 m² (50 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Diameter: 9.4 mm (0.37 in). Length: 558.8 mm (22 in). Nozzle Schedule: Openings: process side 2-4"; service side 2-3". Process Pressure: 3.4 bar (50 psi).
cylindrical, Process side rated 3 bar/vac @ -10/+165 deg C, service side rated 3 bar/vac @ -10/+165 deg C. Total capacity service side: 7 liter Total capacity process side: 9 liter Heat Transfer Surface Area: 1.14 m² (12.3 ft²). Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 165 °C (329 °F). Vacuum: Yes. Length: 482.6 mm (19 in). Nozzle Schedule: Openings: 1-7" (177mm), 1-3" (75mm), 2-1" (25mm). Process Pressure: 3 bar (43.5 psi). Process Temperature: 165 °C (329 °F).
Block consists of 3-elements, Single pass process side, 3-pass shell side. Heat Transfer Surface Area: 4.3 m² (46 ft²). Orientation: Horizontal. Shell Pressure: 5 bar (72.5 psi). Vacuum: Yes. Length: 455 mm (17.9 in). Nozzle Schedule: Openings: process side 2-100mm; service side 2-35mm.. Process Pressure: 2 bar (29 psi).
Heat Transfer Surface Area: 8.1 m² (87.6 ft²). Length: 800 mm (31.5 in). Nozzle Schedule: openings: (4) inside diameter 50mm. Process Pressure: 6 bar (87 psi). Process Temperature: 170 °C (338 °F).
cylindrical block Volume: 66 liters Orientation: Vertical. Nozzle Schedule: openings: top (1) 80mm, side wall (1) 40mm (2) 80mm, bottom (1) 25mm, . Process Pressure: 2 bar (29 psi). Process Temperature: 170 °C (338 °F).
cyclindrical polybloc heat exchanger, Passes (process side): 5 Passes (service side): 6 Blocks: 4 Heat Transfer Surface Area: 1.6 m² (17.2 ft²). Orientation: Vertical. Shell Pressure: 6 bar (87 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Carbon Steel. Process Pressure: 6 bar (87 psi). Process Temperature: 100 °C (212 °F).
Graphilor Vertical cylindrical block heat exchanger Heat Transfer Surface Area: 1.86 m² (20 ft²). Orientation: Vertical. Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Length: 914.4 mm (36 in). Process Pressure: 10.3 bar (150 psi). Process Temperature: 176.7 °C (350 °F).
cylindrical pressure service side 5 atu @ 26 degrees C 28 liters Orientation: Vertical. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Process Temperature: 100 °C (212 °F).
( both end plates are glass lined 2000 on product side ) pressure product side -1/6 bar @ -25/165 degrees C ( volume 62 liter ), pressure service side -1/7 bar @ -25/165 degrees C ( volume 125 liter ) Heat Transfer Surface Area: 22.5 m² (242.2 ft²). Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 165 °C (329 °F). Vacuum: Yes. Nozzle Schedule: - Openings product side: (1) DN50, (1) DN100, (1) DN200 - Openings service side: (2) DN80.
SGL Carbon cubic block heat exchanger Heat Transfer Surface Area: 1.6 m² (17.2 ft²). Shell Pressure: 7 bar (101.5 psi). Vacuum: Yes. Nozzle Schedule: Openings - Service Side 3-40mm; Process side 1- 80mm, 1-100mm. Process Pressure: 6 bar (87 psi).
cubic block Heat Transfer Surface Area: 1.96 m² (21.1 ft²).
Cylindrical block Heat Exchanger Heat Transfer Surface Area: 7.6 m² (81.8 ft²). Orientation: Vertical. Shell Pressure: 2 bar (29 psi). Shell Temperature: 100 °C (212 °F). Nozzle Schedule: openings: heat: 2-50mm, shell: 1-50mm, 1-30mm, 1-125mm. Process Pressure: 2 bar (29 psi). Process Temperature: 100 °C (212 °F).
Cylindrical Heat Transfer Surface Area: 1.2 m² (12.9 ft²). Orientation: Vertical. Shell Temperature: 100 °C (212 °F). Vacuum: Yes. Process Pressure: 5 bar (72.5 psi). Process Temperature: 25 °C (77 °F).
cylindrical volume 6 liter both sides Rated -1/3 bar @ -10 to + 185 degrees C, Heat Transfer Surface Area: 1.4 m² (15.1 ft²). Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 185 °C (365 °F). Vacuum: Yes. Process Pressure: 3 bar (43.5 psi). Process Temperature: 85 °C (185 °F).
REBUILT material Graphit-XBS volume 158ltr pressure both sides -1/6 bar @ -10/180 deg C Heat Transfer Surface Area: 22.4 m² (241.4 ft²). Shell Pressure: 6 bar (87 psi). Shell Temperature: 180 °C (356 °F). Nozzle Schedule: Openings: service side 2-50mm, product side 2-50mm. Process Pressure: 6 bar (87 psi). Process Temperature: 180 °C (356 °F).
material G 12-12-165 pressure rated 3 bar @ 165 deg C (service side), 3 bar @ 165 deg C (product side), volume both side 25 ltr. Total weight 560 kg. Heat Transfer Surface Area: 7.2 m² (77.5 ft²). Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 165 °C (329 °F). Nozzle Schedule: Product side (2) 50mm; Service side (2) 50 mm. Process Pressure: 3 bar (43.5 psi). Process Temperature: 165 °C (329 °F).
Five graphite blocks-500 mm diameter x 250 mm long Heat Transfer Surface Area: 18 m² (194 ft²). Orientation: Vertical. Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 558.8 mm (22 in). Length: 2,026 mm (79.8 in). Nozzle Schedule: Two 4" nozzles, Two 8" nozzles. Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).
Heat Transfer Surface Area: 72.7 m² (782 ft²). Orientation: Horizontal. Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 148.9 °C (300 °F). Vacuum: Yes. Shell Diameter: 635 mm (25 in). Length: 43,891 mm (1,728 in). Process Pressure: 5.2 bar (75 psi). Process Temperature: 148.9 °C (300 °F).
Heat Transfer Surface Area: 4.2 m² (45 ft²). Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 182.2 °C (360 °F). Length: 609.6 mm (24 in). Nozzle Schedule: Openings: 4-3", 1-2". Process Pressure: 3.4 bar (50 psi). Process Temperature: 182.2 °C (360 °F).
Heat Transfer Surface Area: 3.2 m² (34 ft²). Shell Pressure: 6.1 bar (88 psi). Nozzle Schedule: Openings: process side 1-6" (150mm), 2-2" (50mm); service side 2-2" (50mm). Process Pressure: 3 bar (44 psi).
Cylindrical Block Heat Exchanger 125 PSI @ 350 deg F to -20 deg F min tube side. 8' long single-pass service side. Heat Transfer Surface Area: 18.6 m² (200 ft²). Shell Pressure: 8.6 bar (125 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Shell Diameter: 457.2 mm (18 in). Nozzle Schedule: Openings: tube side (2) 6", shell side (3) 6".. Process Pressure: 8.6 bar (125 psi). Process Temperature: 176.7 °C (350 °F).
Blt to TUV standard. Design pressure: service side 3 bar and full vac; product side 3 bar and full vac @ -10/+165 deg C. Heat Transfer Surface Area: 3.6 m² (38.8 ft²). Shell Pressure: 3 bar (43.5 psi). Vacuum: Yes. Process Pressure: 3 bar (43.5 psi). Process Temperature: 165 °C (329 °F).
cubic block Process side rated 44 psi @ 330 deg F, (3 bar @ 165 deg C); service side rated 88 psi @ 330 deg F (6 bar @ 165 deg C) (3) blocks Heat Transfer Surface Area: 4 m² (43 ft²). Shell Pressure: 6.1 bar (88 psi). Shell Temperature: 165.6 °C (330 °F). Length: 1,600 mm (63 in). Nozzle Schedule: Openings: process side 1-1" (25mm), 1-4" (100mm); service side 6-2" (50mm). Process Pressure: 3 bar (44 psi). Process Temperature: 165.6 °C (330 °F).
rated 5 bar @ 130 degrees C Service Side, volume 18,7 liters; rated 5 bar @ 170 degrees C process side, volume 8,7 liters, weight 348 kg. Heat Transfer Surface Area: 2.5 m² (26.9 ft²). Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 130 °C (266 °F). Process Pressure: 5 bar (72.5 psi). Process Temperature: 170 °C (338 °F).
Cubic Block Heat Exchanger 22 passes on process side, 21 passes on service side Heat Transfer Surface Area: 15.4 m² (166 ft²). Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Nozzle Schedule: Openings: process side (2) 4", service side (2) 4". Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).
Cylindrical Polyblock heat exchanger. Heat Transfer Surface Area: 13.9 m² (150 ft²). Shell Diameter: 406.4 mm (16 in). Length: 711.2 mm (28 in).
cylindrical block with a carbon steel shell Heat Transfer Surface Area: 27.9 m² (300 ft²). Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 182.2 °C (360 °F). Shell Material: Carbon Steel. Shell Diameter: 3,658 mm (144 in). Length: 457.2 mm (18 in). Nozzle Schedule: Openings: shell 2-2"; head 1-6", 1-2". Process Pressure: 3.4 bar (50 psi). Process Temperature: 182.2 °C (360 °F).
Cylindrical block type Heat Transfer Surface Area: 13.9 m² (150 ft²). Orientation: Vertical. Shell Pressure: 6 bar (87 psi). Vacuum: Yes. Process Pressure: 3 bar (43.5 psi). Process Temperature: 165 °C (329 °F).
cylindrical Blt to TUV standards Design pressure: service side 3 bar and full vac product side 3 bar and full vac @ -10/+165 deg C. Heat Transfer Surface Area: 3.6 m² (38.8 ft²). Orientation: Vertical. Shell Pressure: 3 bar (43.5 psi). Vacuum: Yes.
Heat exchangers are unfired heat transfer equipment used in process plants. Heat exchangers are used for the transfer of heat or cold between two fluids for the purpose of heating the process, cooling the process, or condensing vapors during the process. Heat exchangers are measured in Square Feet. There are several different types of heat exchangers. These include:
