Graphite Robert Jenkins GEK-BQ-7 Block Heat Exchanger - IPP# 705658

Type: Heat Exchanger

Subtype: Block

Manufacturer: Robert Jenkins

Model: DM400/10/2A

Condition: Refurbished/Rebuilt

Material: Graphite

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Orientation: Vertical

cylindrical (1) block (2) vert mounting brackets.

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Diameter: 457.2 mm (18 in). Length: 1,219 mm (48 in). Nozzle Schedule: Openings: 2-8", 2-4". Process Pressure: 6 bar (87 psi). Process Temperature: 165 °C (329 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Robert Jenkins

Model: GEK-BJ

Condition: Unused

Material: Carbon Steel

Orientation: Horizontal

Shell Pressure: 5.2 bar (75 psi)

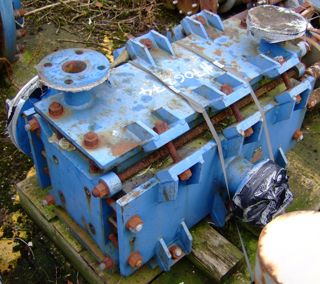

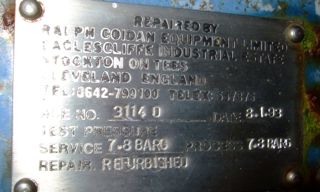

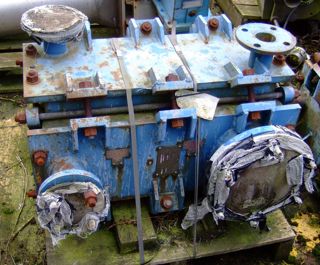

Carbon block heat exchanger Block dimensions 620mm long x 340mm wide x 340mm high. Heat exchanger was refurbished by Ralph Coidan, ref # 31114D, test pressure service side 7.8 bar, process 7.8 bar

Shell Temperature: 180 °C (356 °F). Vacuum: Yes. Length: 620 mm (24.4 in). Nozzle Schedule: openings 4-50mm, 1-125mm. Process Pressure: 5.2 bar (75 psi). Process Temperature: 180 °C (356 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri GmbH

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

• Estimated surface area to be 76 ft 2
• cylindrical pressure service side 5 atu @ 26 degrees C28 liters

Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Head Material: Carbon Steel. Length: 1,800 mm (70.9 in). Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50. Block Type: Karbate. Process Pressure: 5 bar (72.5 psi). Pack Material: Graphite. Process Temperature: 100 °C (212 °F).

Type: Heat Exchanger

Subtype: Block

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.96 m² (21.1 ft²)

cubic block
