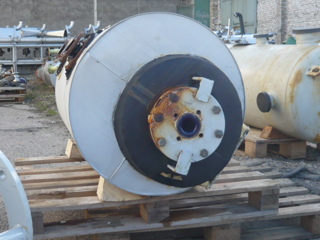

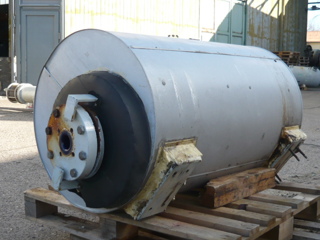

Graphite GAB Neuman GAB Neuman Block Heat Exchanger - IPP# 211679

Type: Heat Exchanger

Subtype: Block

Manufacturer: GAB Neuman

Model: H-B-5.6

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 4.2 m² (45.2 ft²)

Orientation: Horizontal

• Heat exchanger type: Neuman horizontal graphite spiral block

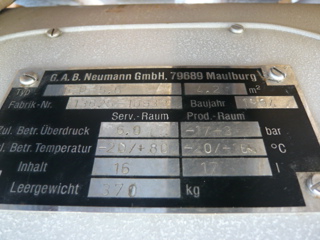

• Weight: 370 KG Product Side -1/3 bar@ -20 to +165 degrees C 17 liters

Shell Pressure: 6 bar (87 psi). Shell Temperature: 80 °C (176 °F). Vacuum: Yes. Nozzle Schedule: - Openings: - Process side: (1) 50mm, (1) 150mm - Service side: (2) 50mm.

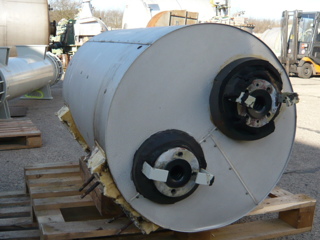

Type: Heat Exchanger

Subtype: Block

Manufacturer: GAB Neuman

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3.6 m² (38.8 ft²)

Shell Pressure: 3 bar (43.5 psi)

Blt to TUV standard. Design pressure: service side 3 bar and full vac; product side 3 bar and full vac @ -10/+165 deg C.

Vacuum: Yes. Process Pressure: 3 bar (43.5 psi). Process Temperature: 165 °C (329 °F).

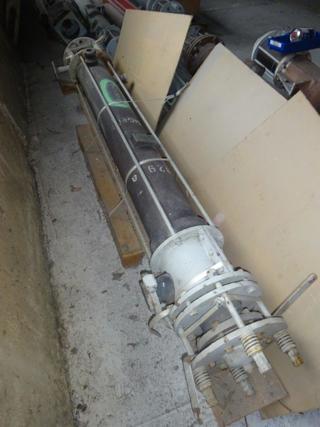

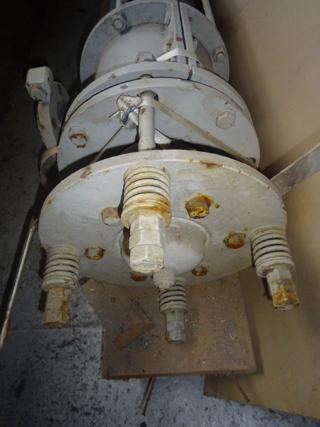

Type: Heat Exchanger

Subtype: Block

Manufacturer: GAB Neuman

Model: N-A-3.6

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3.6 m² (38.8 ft²)

Orientation: Vertical

cylindrical Blt to TUV standards Design pressure: service side 3 bar and full vac product side 3 bar and full vac @ -10/+165 deg C.

Shell Pressure: 3 bar (43.5 psi). Vacuum: Yes.

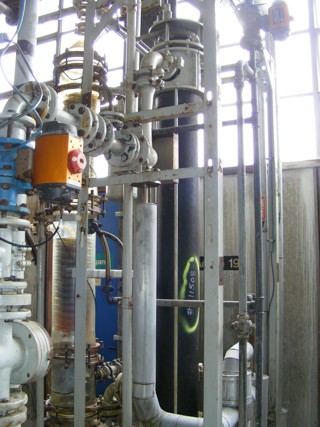

Type: Heat Exchanger

Subtype: Block

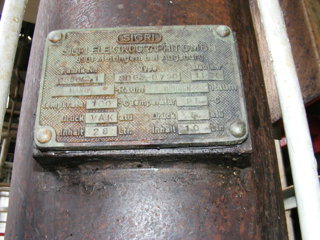

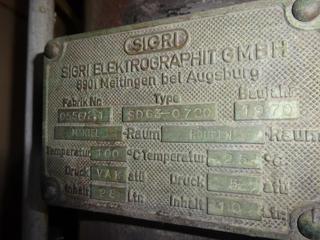

Manufacturer: Sigri GmbH

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

• Estimated surface area to be 76 ft 2
• cylindrical pressure service side 5 atu @ 26 degrees C28 liters

Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Head Material: Carbon Steel. Length: 1,800 mm (70.9 in). Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50. Block Type: Karbate. Process Pressure: 5 bar (72.5 psi). Pack Material: Graphite. Process Temperature: 100 °C (212 °F).
