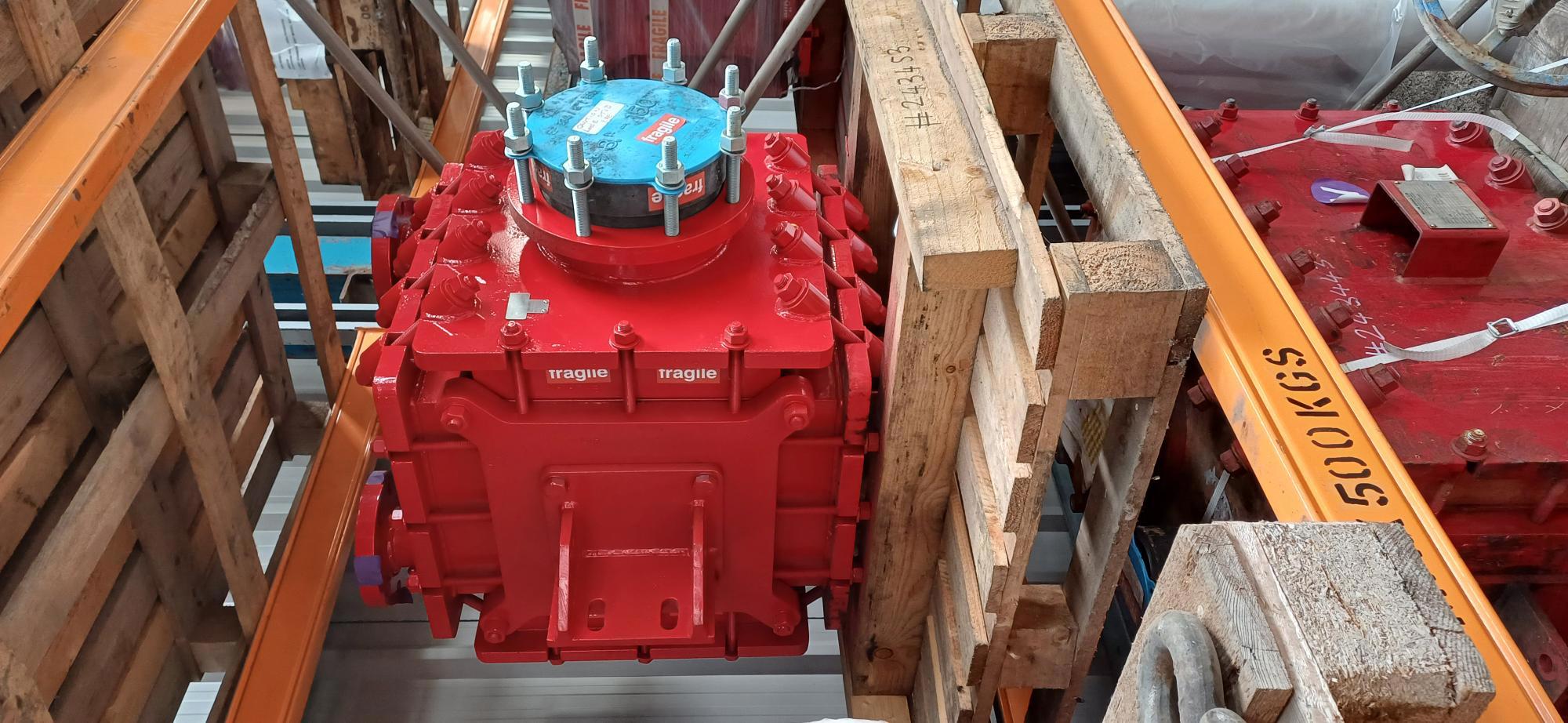

Graphite Block Heat Exchanger - IPP# 243453

Type:

Heat Exchanger

Subtype:

Block

Manufacturer:

Ralph Coidan

Model:

CD125

Condition:

Refurbished/Rebuilt

Material:

Graphite

Heat Transfer Surface Area:

11.6 m² (125.3 ft²)

Orientation:

Horizontal

Shell Pressure:

6 bar (87 psi)

Shell Temperature:

170 °C (338 °F)

Shell Material:

Graphite

Vacuum:

Yes

Process Pressure:

6 bar (87 psi)

Process Temperature:

170 °C (338 °F)

Service Side Passes:

8

Process Side Passes:

1

Service Side Capacity:

140.1 L (37 gallons)

Process Side Capacity:

98.4 L (26 gallons)

Additional Info:

Design code: ASME VIII DIV 1PED CAT II, gas group 1.
