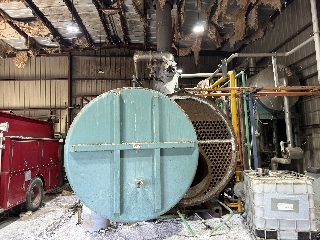

Steam Boiler Cleaver Brooks CB200X-440-200ST - IPP# 245587

Type: Boiler

Subtype: Steam

Manufacturer: Cleaver Brooks

Model: CFH-700-70HP-150#ST

Condition: Used

Material: Carbon Steel

Boiler Type: Firetube

Temperature: 100 °C (212 °F)

Power: 52.2 kW (70 HP). Capacity (Design): 1,100 kg/h (2,400 lb/h). Capacity Working: 1,300 kg/h (2,850 lb/h). Fuel Type: Natural Gas. Pressure: 10.3 bar (150 psi). Controls: Yes. Deaerator System: Yes.

Type: Boiler

Subtype: Steam

Manufacturer: Cleaver Brooks

Model: CB200-730-150

Condition: Used

Material: Carbon Steel

Boiler Type: Water Tube

Capacity (Design): 11,350 kg/h (25,000 lb/h)

Fuel Type: Natural Gas. Pressure: 10.3 bar (150 psi). Burner Manufacturer: Cleaver Brooks.

Type: Boiler

Subtype: Steam

Manufacturer: Cleaver Brooks

Model: D-34-R.H

Condition: Used

Boiler Type: Water Tube

Capacity (Design): 6,800 kg/h (15,000 lb/h)

Unit number: W-3525 Boiler heating surface sq. ft. 1517, Water wall sq. ft. 302 Max 20.574, Main Power 460 volts. Shipping dimensions 11’ wide x 25’ long x 12’ 6” min. to 13’ 4 “ max. overall height.

Fuel Type: Natural Gas. Pressure: 44.8 bar (650 psi).

Type: Boiler

Subtype: Steam

Manufacturer: Burnham

Model: LN3L-150-50-G-BNM

Condition: Used

Material: Carbon Steel

Boiler Type: Firetube

Power: 111.9 kW (150 HP)

• Three pass fire tube boiler5021 MBHMBH input 6278Fireside heating surface area is 750 sq. ft Firing rate is as follows: 1000 BTU Gas (MBH) =6277, 140,000 BTU/Gal. Oil (GPH) =44.8Safety valve rated for 6000 psi Boiler has 182, two inch tubes This boiler features FGR and low Nox operation with it's IRI gas train While firing natural gas, emissions levels are are no greater than 30 PPM of NO x This boiler features 3 gas passes that extract the maximum usable heat from the fuel while maintaining optimum flow for forced draft firing It also has easy opening/closing doors that minimize labor and parts cost’s while performing routine maintenance such as cleaning and inspections Water requirements are 6551 pounds of water or 785 gallons Approximate weight wet is 16,251 lbs., approximate dry weight is 9,700 lbs.

Capacity (Design): 2,350 kg/h (5,200 lb/h). Fuel Type: Natural Gas. Pressure: 1.03 bar (15 psi). Low NOx: Yes.
