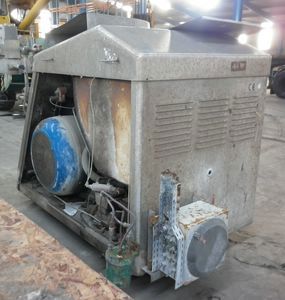

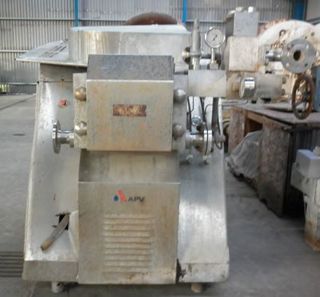

high shear inline Homogenizer used for emulsification, dispersion, reacting & Homogenising, belt driven by 45kW, 3/50/400/690 volt, 2980 rpm EExd IIB T4 IP55 motor, mounted on a baseplate
Type: Homogenizer
Manufacturer: APV Gaulin Gmbh-Lubeck
Model: 5283MC 45-2,5TPSI
Condition: Used
Material: Stainless Steel 304
Flow Rate: 20,000 L/h (88.1 GPM)
Pressure: 150 bar (2,175 psi)
150 boar (5283 GPH, 2175 psi)

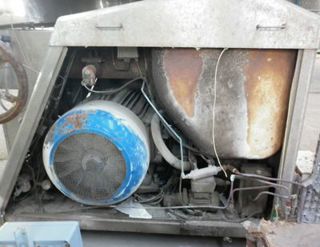

Motor and pump head enclosed in a SS housing
The cylinder block is Cr-Ni-Mo-steel, with 3 plungers, each plunger is 76.2 mm (3 inches)
Homogenizing valve is Cr-Ni-Mo-Steel, type Gaulin Dyna-jet, 2 stage, 80 mm, with hydraulic actuator
EEx rated
Lubricating oil pump motor is 0.37 kW,EEx rated
This is a Two-stage HVA 2 Piloted special size 80 valve. Product inlet is 65mm, product outlet 50 mm, cooling water inlet 1/2", plunger cooling water inlet and outlets are 3/8"
Total weight 4700 Kg
Temperature: 25 °C (77 °F). Number of Stages: 2.
