Fiberglass Scrubber 611.6 m3/h (360 CFM) For Sale

Type:

Scrubber

Manufacturer:

Otto H York

Model:

28" Catenary Grid Scrubber

Condition:

Used

Material:

Fiberglass

Air Flow Rate:

611.6 m3/h (360 CFM)

Height:

9,144 mm (360 in)

Width:

0.7 m (2.3 ft)

Liquid Flow Rate:

22,713 L/h (100 GPM)

Pressure:

0.97 bar (14 psi)

Temperature:

54.4 °C (130 °F)

Fan Details:

New York Blower

Fan Power:

12.7 kW (17 HP)

Fan Type:

Centrifugal

Motor Make:

Baldor Reliance

Motor Serial:

F1905031358

Motor Frame Size:

145TC

Motor Power:

1.49 kW (2 HP)

Motor RPM:

1,750

Motor Voltage:

460

Motor Hertz:

Motor Cycles:

Packing:

Yes

Packing Type:

Structured

Recirculation:

Yes

Recirculation Pump Details:

Summit 3 x 1.5 x 8 (Impeller 6.625) 20 GPM @ 40 Ft/Hd

Recirculation Tank Details:

1000 Gallon Vertical fiberglass 68" diameter x 64" high

Recirculation Tank Separate:

Yes

Additional Info:

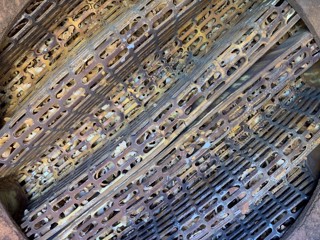

Using caustic to scrub acid. Fan was removed, we can replace it. Packed section 4.5 feet, with structured mesh packing. Multiple spray bars at top of tower, 3" feed/spray line, 4" return line. 14" gas inlet. Scrubber fan speed 3600 rpm.

Fiberglass Scrubber - IPP# 246465
