Batch-Type Agitated Reactor 34,069 L (9,000 gallons) Stainless Steel 316 For Sale - IPP# 246701

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Industrial Alloy Fabricators

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 34,069 L (9,000 gallons)

Internal Pressure: 1.03 bar (15 psi)

There are no man way covers for this vessel. Instead, this process required a ring and a single use rupture disk.

Internal Full Vacuum: Yes. Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,743 mm (108 in). Straight Side Length: 6,579 mm (259 in). Support Type: Skirt.

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757.1 L (200 gallons)

Jacket Material of Construction: Carbon Steel

• With Lightnin, 1.5 hp mixer.
• 1" jacket supply and return lines.

Orientation: Vertical. Diameter: 965.2 mm (38 in). Straight Side Length: 914.4 mm (36 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Cream City Boiler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 10.3 bar (150 psi)

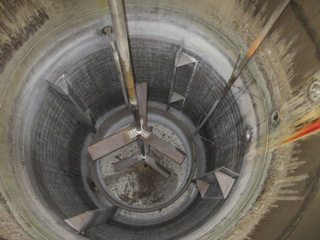

• Top Head 9/16", Bottom Head 1 3/16"; CS jacket 9/16" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.

Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,676 mm (66 in). Straight Side Length: 1,448 mm (57 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Tower Iron Works

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 9.1 bar (132 psi)

Agitator drive by Lightnin, with a Louis Allis Pacemaker Motor. Two speed Pacemaker motor, 3.3 -20 HP, 250-1760 RPM, 3 Phase 60 Hz, 460 Volts. Bottom: Center bottom outlet

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Lugs.
