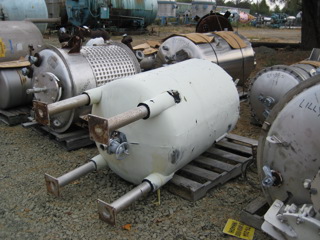

Stainless Steel 316 Tank - IPP# 246734

Type: Tank

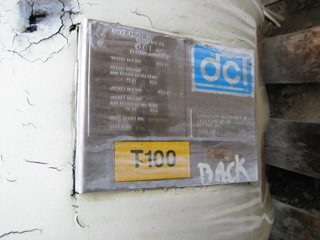

Manufacturer: DCI

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757 L (200 gallons)

Orientation: Vertical

• Completely insulated with foam insulation.
• Head are 0.135" thick-CBO is 2" sanitary

Diameter: 914 mm (36 in). Straight-side Length: 1,200 mm (47 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Sanitary Contruction: Yes. Support: Legs.

Type: Tank

Manufacturer: Perry Products Co.

Model: HDDX-185

Condition: Unused

Material: Stainless Steel 316

Capacity (Design): 700 L (185 gallons)

Orientation: Vertical

• Height: 92" overall, tank sits 9" off grade

Diameter: 813 mm (32 in). Straight-side Length: 1,500 mm (60 in). Internal Pressure: 3.4 bar (50 psi). Internal Temperature: 162.8 °C (325 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Deco

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,150 L (300 gallons)

Orientation: Vertical

Diameter: 914 mm (36 in). Straight-side Length: 1,700 mm (66 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 176.7 °C (350 °F). Vacuum: Yes.

Type: Tank

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 11,350 L (3,000 gallons)

Orientation: Vertical

Diameter: 2,750 mm (108 in). Straight-side Length: 1,700 mm (66 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 93.3 °C (200 °F). Does it have Agitation ?: Yes. Vacuum: Yes. Support: Legs.
