Steam coil duty -Saturated steam at 1400 lbs./hr. at 110 psi max heating 3000 scfm to 300 degrees F. Dust collection cyclone by Airecon Model 12-1, size 18 serial CY-0116, counter clockwise 12 gauge 316 SS-36" diameter x 14' overall height.
Type: Dryer-Wyssmont
Manufacturer: Wyssmont
Model: V37
Condition: Used
Material: Stainless Steel 304
Diameter: 9,144 mm (360 in)
Tray Diameter: 5,791 mm (228 in)

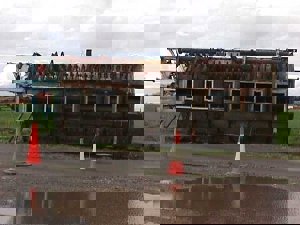

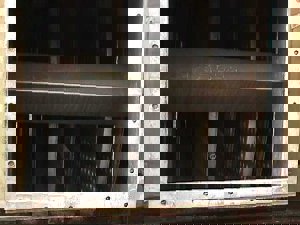

turbo dryer. all Contact parts are 304ss including the feed chute, trays, levelers, discharge tray and chute. Unit has a direct fired gas burner, rated 6 mm BTU, 15,000 to 20,000 CFM air flow. Drive train completely refurbished in 2013 with a new clutch, transmission and main bearings. Dryer air is heated by a gas fired burner manufactured by Eclipse, Model CM 2571. 8250 cfm of air for the dryer is supplied by a New York blower, model AF 30, driven by a 60 HP ac motor. Complete with support equipment including fan, heater, and bag house. Currently controlled by Allen Bradley PLC. Unit was field erected and the entire dryer is bolted construction. Each tray has 24 pie shaped segments that bolt together with an rim around the lip of each tray that is also 3 sections bolted together. The housing can also be unbolted. The base with drive can be shipped in one piece. Unit production rate depends on inlet moisture, temperature, etc. For example - 80,000 lbs per hour @ 18 % moisture or 52,000 lbs per hour @ 0.03% moisture outlet. The original design was for a lime and sand blend of 76,200 lbs./hr. @ 18% wet basis, with a dry product output of 62,800 lbs./hr. @0.5% wet basis. Some other original design specs are: Entrainer flow to dryer: 67,500 ACFM @ 900 degrees F.; Heat consumption: 23.6 mm BTU/hr.; Exhaust from drying zone- 44,500 ACFM @ 300 degrees F. : exhaust from system- 20,500 ACFM at 300 degrees F., and temperature in dryer is 300 degrees F in the top and 400 degrees in the bottom. A full set of erection and dismantling instructions are available along with technical documents.
Number of Trays: 44. Shelves MOC: Stainless Steel 304. Evaporation Rate: 6,078 kg/h (13,400 lb/h). Air Flow Rate: 33,980 m3/h (20,000 CFM). Temperature: 260 °C (500 °F).
Type: Dryer-Wyssmont
Manufacturer: Krauss Maffei
Model: TTB-20/8
Condition: Used
Material: Stainless Steel 316
Diameter: 1,926 mm (75.8 in)
Height: 1,424 mm (56.1 in)

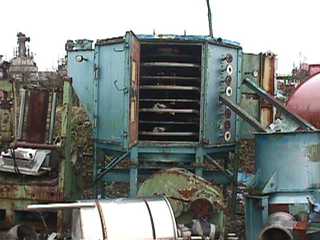

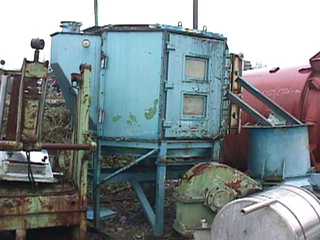

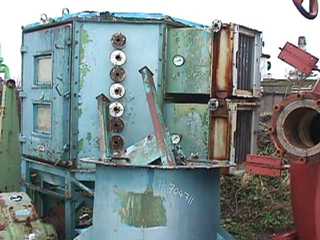

20.2 square meter, plate dryer/cooler, Drying surface: 188 sq ft (17.5 sq meter); cooling surface: 29 sq ft (2.7 sq meter). Initial moisture: 40%, residual moisture: 0.5%; drying temp: 100-105 degrees C, drying time 38.5 minutes; cooling temperature: 35 degrees C, cooling time: 5.5 mins. (8) plates cored for steam heating, 1763mm/1926mm diameter. (2) raker agitators on each plate, (2) heater banks. Max working pressure: 11 bar. Unit direct driven by Lonze varispeed gearbox, belt driven by 1.5 KW, 3/50/415 volt, 1440 rpm flameproof motor. Chamber size: 2038mm diameter x 1424mm high. All wetted parts are 316 stainless steel. (2) 1345mm high x 888mm wide inspection doors with (2) 300mm x 228mm sight glasses on each door. Openings: 1-200mm discharge, 16-37mm plate inlets/outlets, 4-25mm on heater banks, 1-228mm dust outlet, 1-300mm feed.
Number of Trays: 8. Shelves MOC: Stainless Steel 316. Temperature: 105 °C (221 °F).
Type: Dryer-Wyssmont
Manufacturer: Krauss Maffei
Model: TTB27/35
Condition: Used
Material: Stainless Steel 316
Diameter: 4,343 mm (171 in)
Height: 8,800 mm (346.5 in)
175 square meter (1,883 square feet), plate dryer. 316 stainless steel lined jacket housing, Heating coil 4 bar (58 psi), 6 bar test pressure. 11KW (15 HP) drive motor with reduction gearbox. Outside diameter is 4350mm (14'3" ).
Tray Diameter: 2,743 mm (108 in). Number of Trays: 33. Temperature: 110 °C (230 °F).
