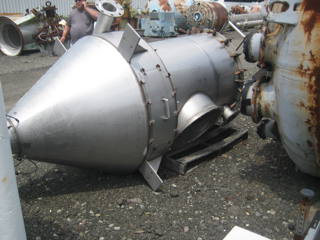

1,753 mm (69 in) Stainless Steel 316 Bag House Dust Collector For Sale - IPP# 246768

Type: Dust Collector

Subtype: Bag House

Manufacturer: Griffin Environmental

Condition: Used

Material: Stainless Steel 316

Diameter: 914.4 mm (36 in)

Cartridge: Yes

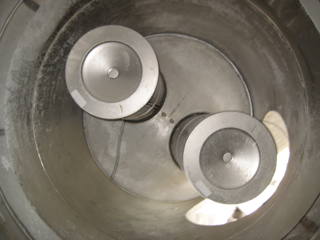

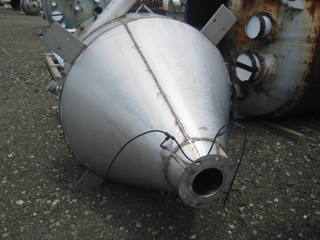

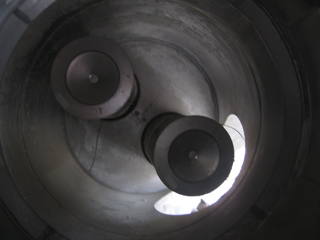

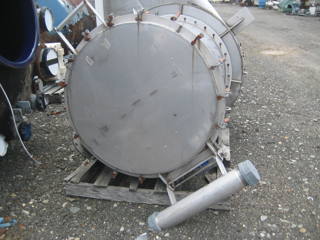

Discharge Cone and Parts Material: 321 SS Dirty Air Chamber Dimensions: 36” diameter x 45” long Vertical Removable top cover, 321 SS cyclone discharge cone Discharge Cone: 48” diameter x 12” with a 5” inlet, and a 36” tapered cone to a 5” outlet on bottom Top cover is removable for access to filters, and is counter weighted and secured by Stay Con clamps Bottom cyclone has two 10” wide x 24” long access doors,(orientated 180 degrees). Two 12” diameter x 26” long cartridge filters Each filter has 175 pleats, 2" wide x 25" long Each cartridge has 121 sq. ft. of surface area Four 6” x 9” lugs for mounting, attached at top of bottom cone weld seam One 5” clean air discharge One 5” clean air discharge, one 24” inspection door for man way or pressure relief disk.(not available)

Filtration Area: 22.5 m2 (242 ft2).

Type: Dust Collector

Subtype: Bag House

Manufacturer: Research-Cottrell

Model: 100 BV 34 BMTR

Condition: Used

Material: Stainless Steel 316

Flow Direction: Reverse air

Pressure: 0.04 bar (0.58 psi)

reverse jet filter Jets: approx (6), manufactured by Anton Piller KG, type 4076-MX-80-315, fabrik #669757 Max working pressure: 0.04 bar @ 40 degrees C (34) 140mm diameter x 2530mm long 316 stainless steel cage/filter elements

Filtration Area: 40.8 m2 (439.2 ft2).

Type: Dust Collector

Subtype: Bag House

Manufacturer: Research-Cottrell

Model: 100 BV 34 BMTR

Condition: Used

Material: Stainless Steel 316

Pressure: 0.04 bar (0.58 psi)

Filtration Area: 40.8 m2 (439.2 ft2)

approx (6) jets, blower manufactured by Anton Piller KG type 4076-MX-80-315, fabrik #669748 max working pressure 0.04 bar @ 40 degrees C 34) 140mm diameter x 2530mm long 316 stainless steel cage/filter elements
