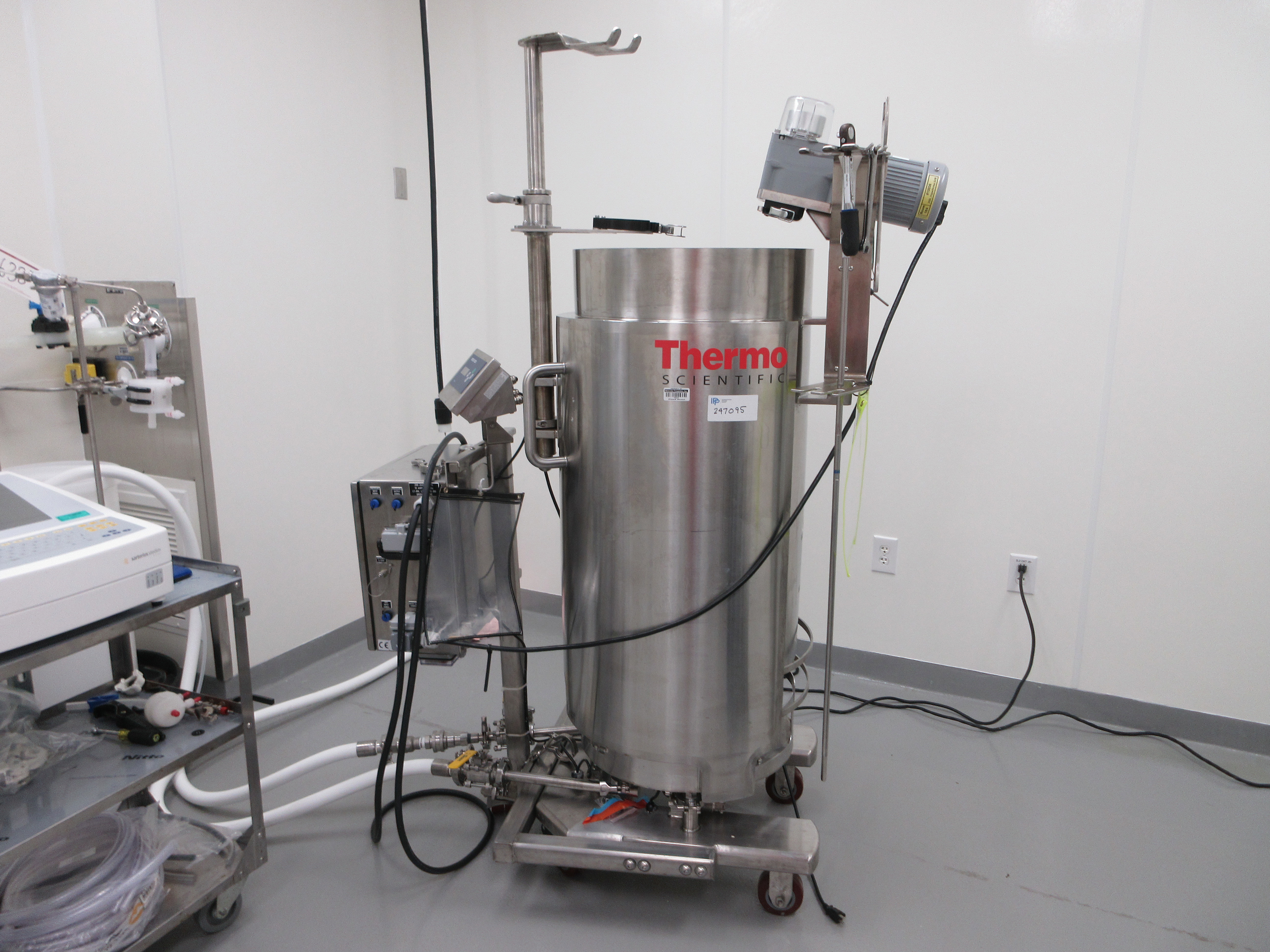

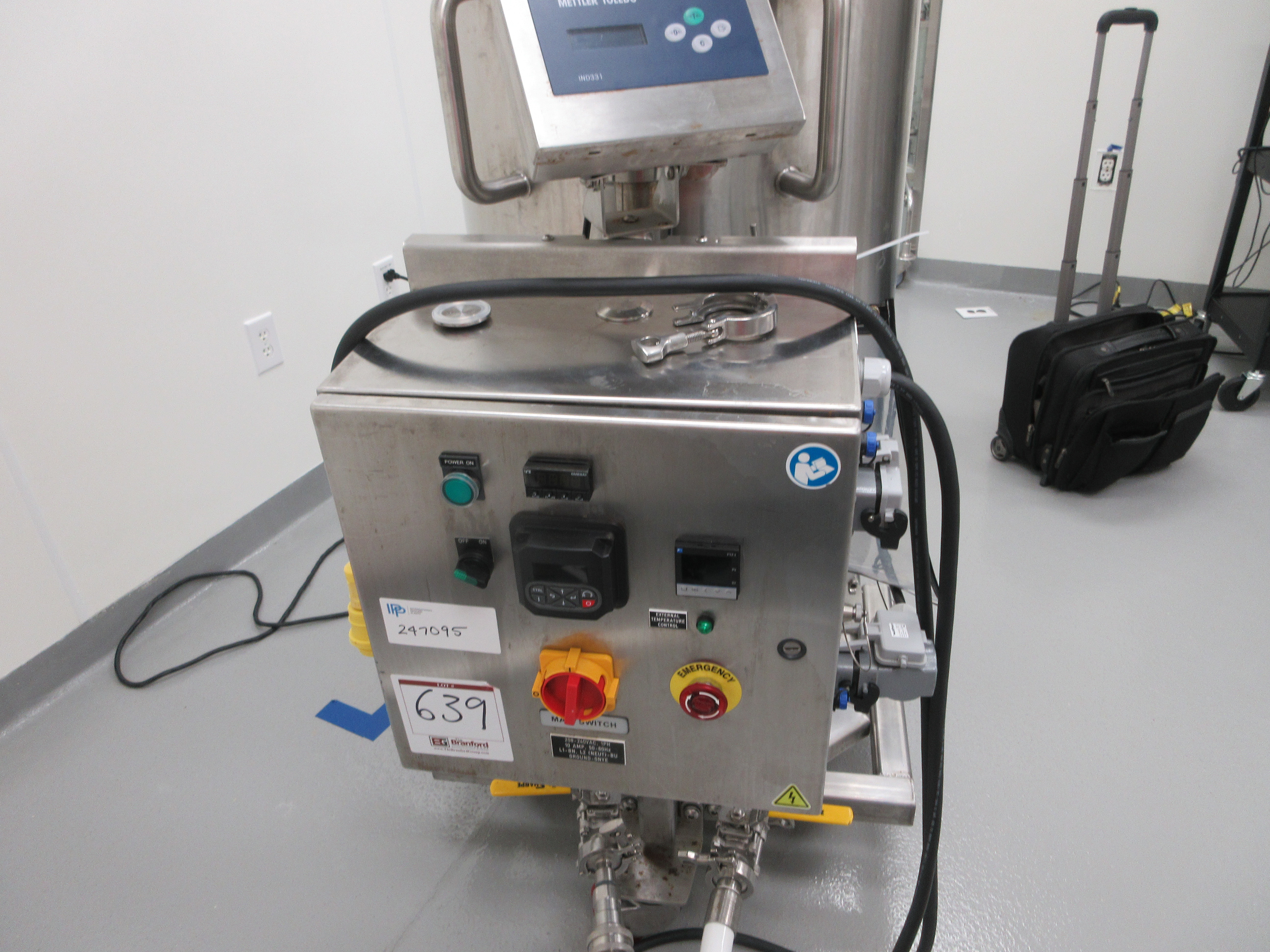

Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095

  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095 Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
  • Single Use Mixing Tank with Dimple Jacket and Touchscreen Control - IPP# 247095
Overview
Tank
ThermoFisher
HyPerforma SUM0200.6645
Used
Stainless Steel 304
Capacity
200 L (52.8 gallons)
Dimensions
Vertical
502 mm (19.8 in)
1,100 mm (44 in)
Pressure
0.03 bar (0.5 psi)
Temperature
40 °C (104 °F)
Agitation
Yes
Jacket
Dimple
Stainless Steel 304
10.3 bar (150 psi)
65.6 °C (150 °F)
Other Specifications
None
Yes
Yes
Legs
Motor
0.37 kW (0.5 HP)
1,700
60
3
Additional Information
  • See Legacy Description
  • Agitator drive --Brother 3 phase induction motor, CE certified. F3530N005-WF4AENX Rated for ambient to 40 degrees C. 0.5 HP, 5:1 Ratio 208V 60 Hz,1.80 a, 1700 rpm. MFR # 7ZD96232003.
  • With rear-mounted handles.

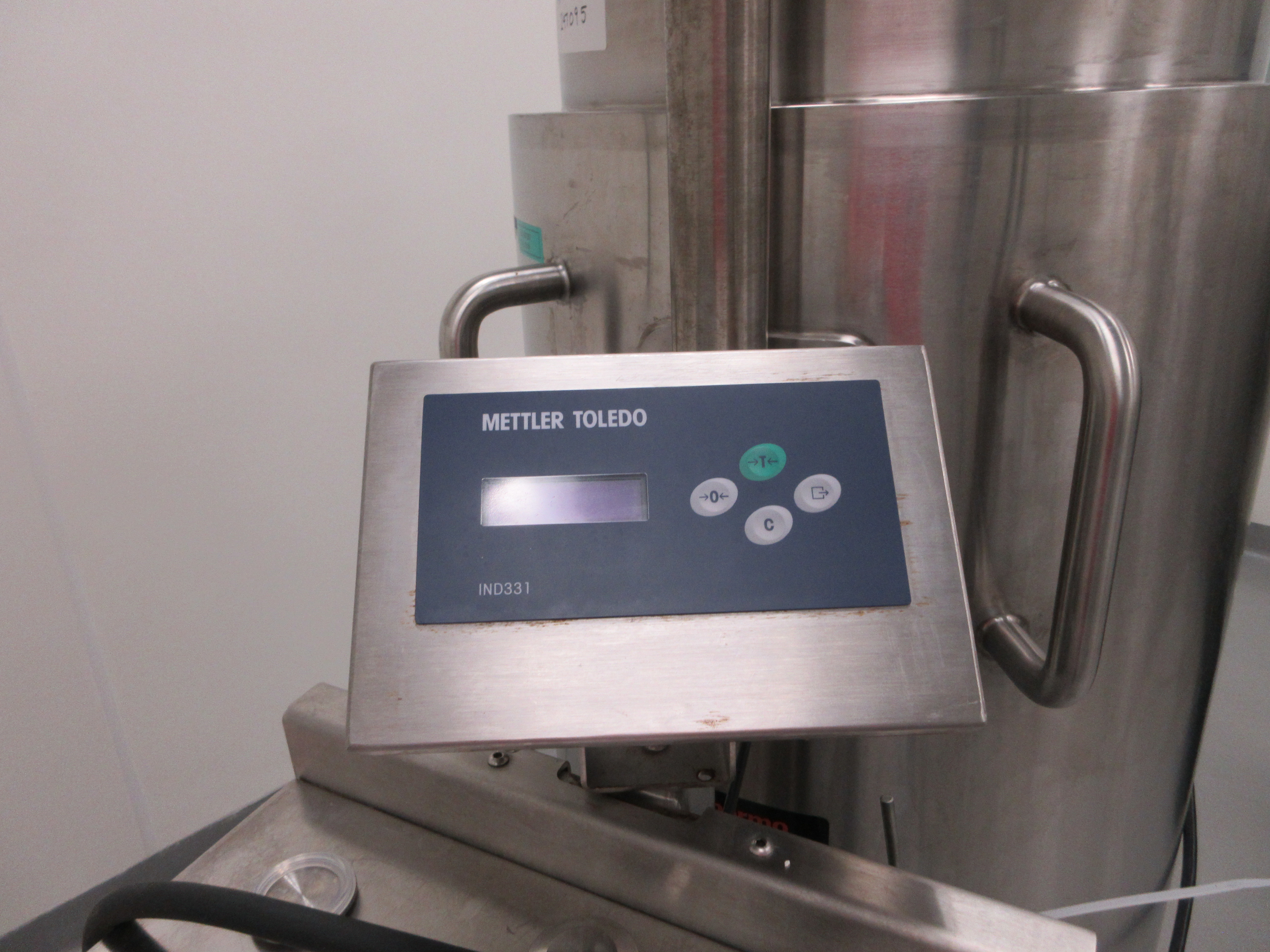

  • With Mettler Toledo MTB load cells.

Similar Equipment

Single Use Mixing Tank with Dimple Jacket and Touchscreen Control

Type: Tank

Manufacturer: ThermoFisher

Model: HyPerforma SUM0500.6645

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 500 L (132.1 gallons)

Orientation: Vertical

  • See Legacy Description
  • Agitator drive --Brother 3 phase induction motor, CE certified. F3S3055-WF4AENX Rated for ambient to 40 degrees C. 0.5 HP, 5:1 Ratio 208V 60 Hz,1.80 a, 1700 rpm. MFR # 95D45081003.
  • With rear-mounted handles.
  • With Mettler Toledo MTB load cells.

Diameter: 749 mm (29.5 in). Straight-side Length: 1,250 mm (50 in). Internal Pressure: 0.03 bar (0.5 psi). Internal Temperature: 40 °C (104 °F). Does it have Agitation ?: Yes. Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 65.6 °C (150 °F). Sanitary Contruction: Yes. Support: Caster.

Single Use Mixing Tank with Dimple Jacket and Touchscreen Control

Type: Tank

Manufacturer: ThermoFisher

Model: HyPerforma SUM0050.6650

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 50 L (13.2 gallons)

Orientation: Vertical

  • See Legacy Description
  • Agitator drive --Brother 3 phase induction motor, CE certified. F3530N005-BWML4EX Rated for ambient to 40 degrees C. 0.5 HP, 5:1 Ratio 208V 60 Hz,1.80 a, 1700 rpm. MFR # 2X566803005.
  • With rear-mounted handles.
  • With Mettler Toledo MTB load cells.

Diameter: 349.3 mm (13.8 in). Straight-side Length: 699 mm (27.5 in). Internal Pressure: 0.03 bar (0.5 psi). Internal Temperature: 40 °C (104 °F). Does it have Agitation ?: Yes. Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 65.6 °C (150 °F). Sanitary Contruction: Yes. Support: Caster.

Stainless Steel 304 Tank

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.

Stainless Steel 304 Tank

Type: Tank

Manufacturer: Continental

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Vertical

  • National Board number is not available
  • Twi side mounted man ways

Diameter: 1,850 mm (72 in). Straight-side Length: 1,300 mm (52 in). Internal Pressure: 1.03 bar (15 psi). Internal Temperature: 93.3 °C (200 °F). Support: Legs.
