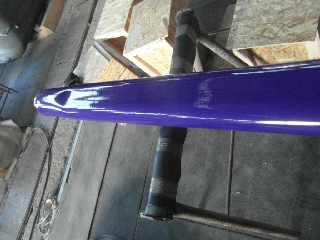

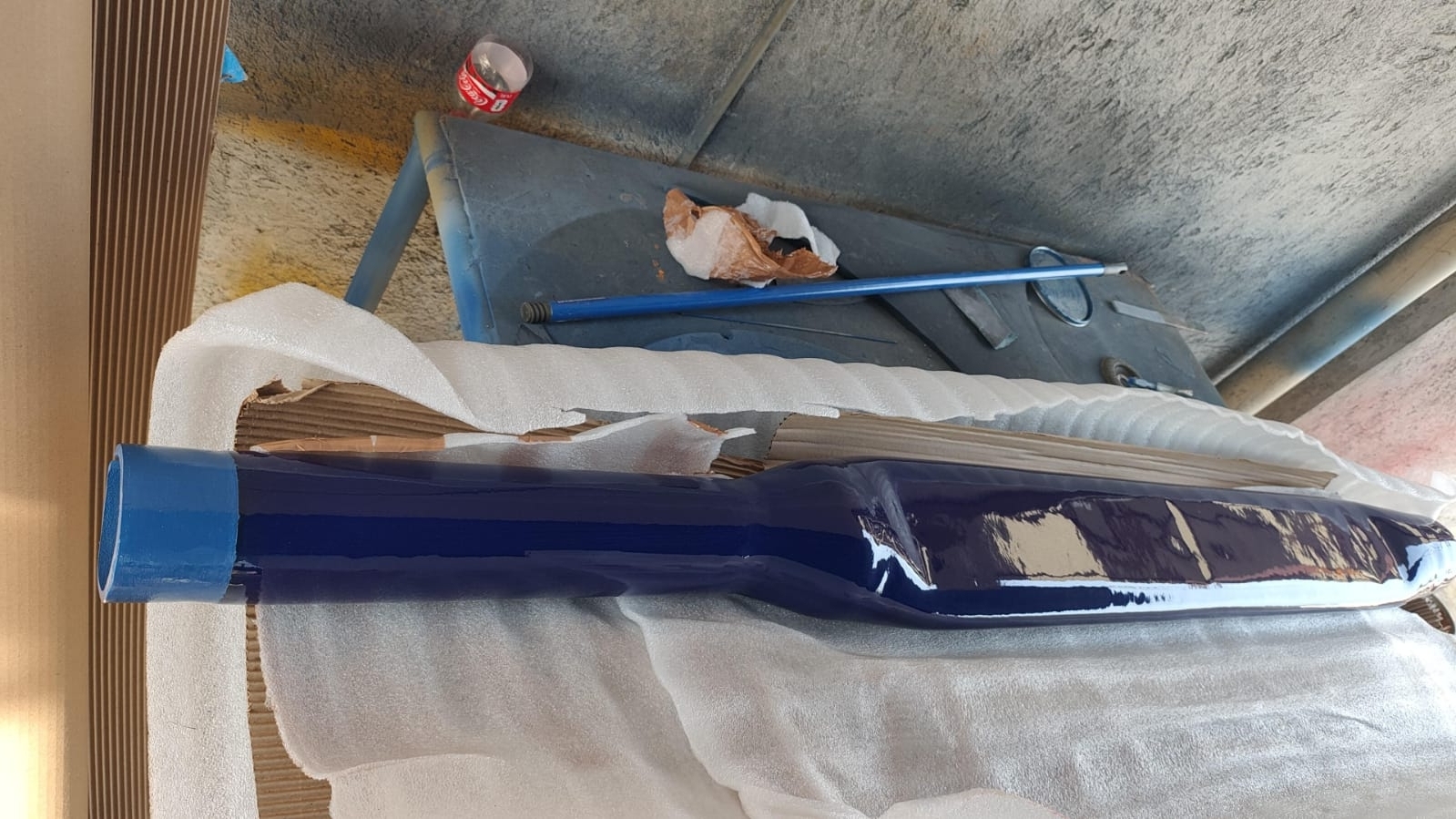

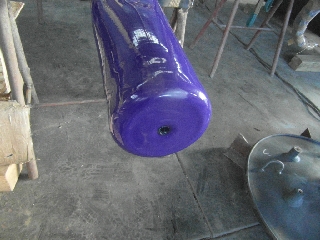

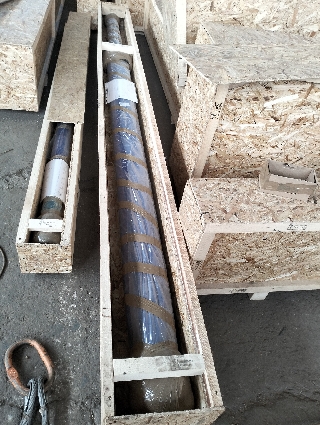

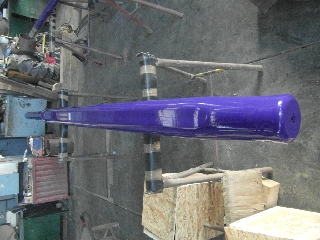

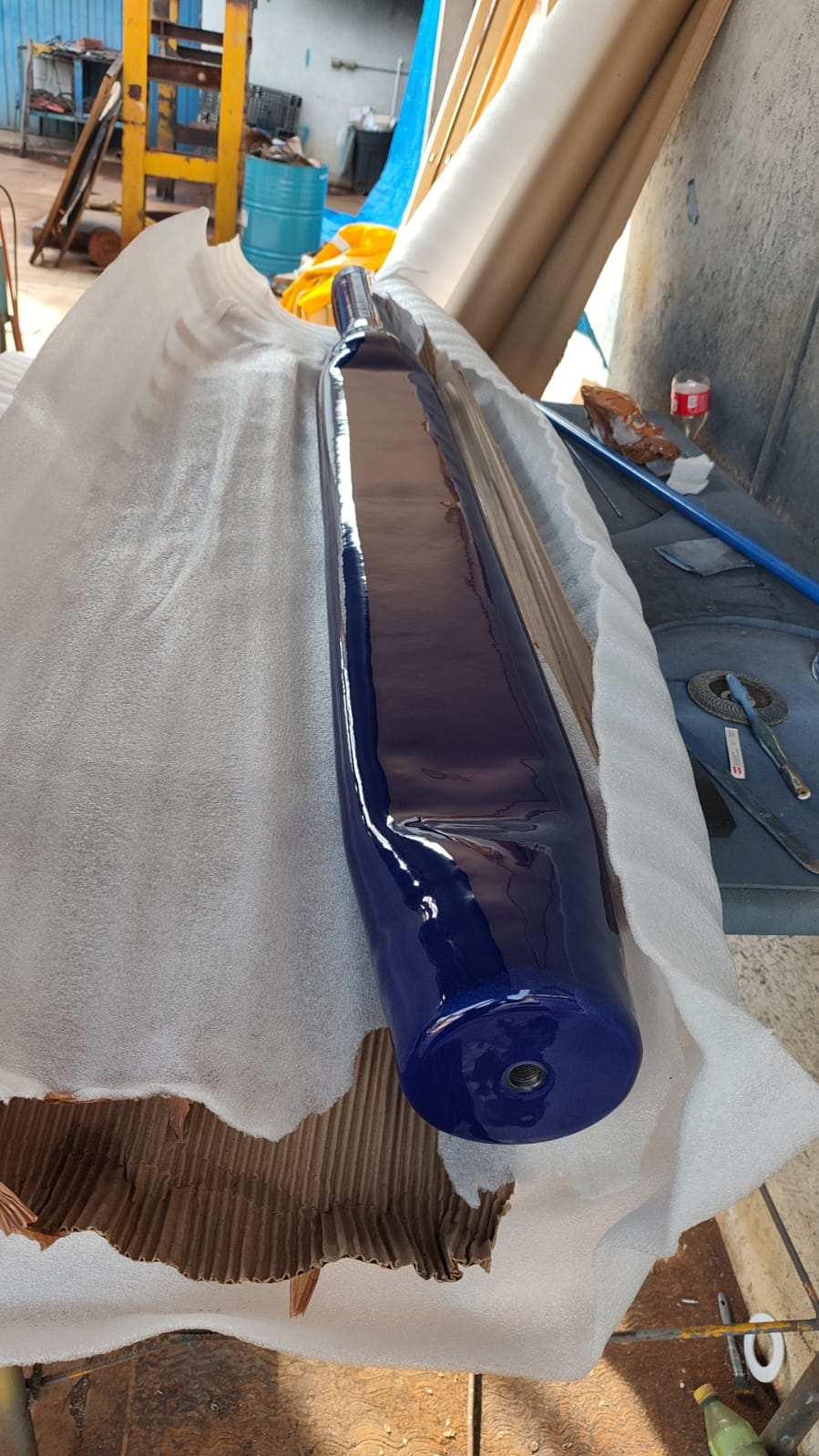

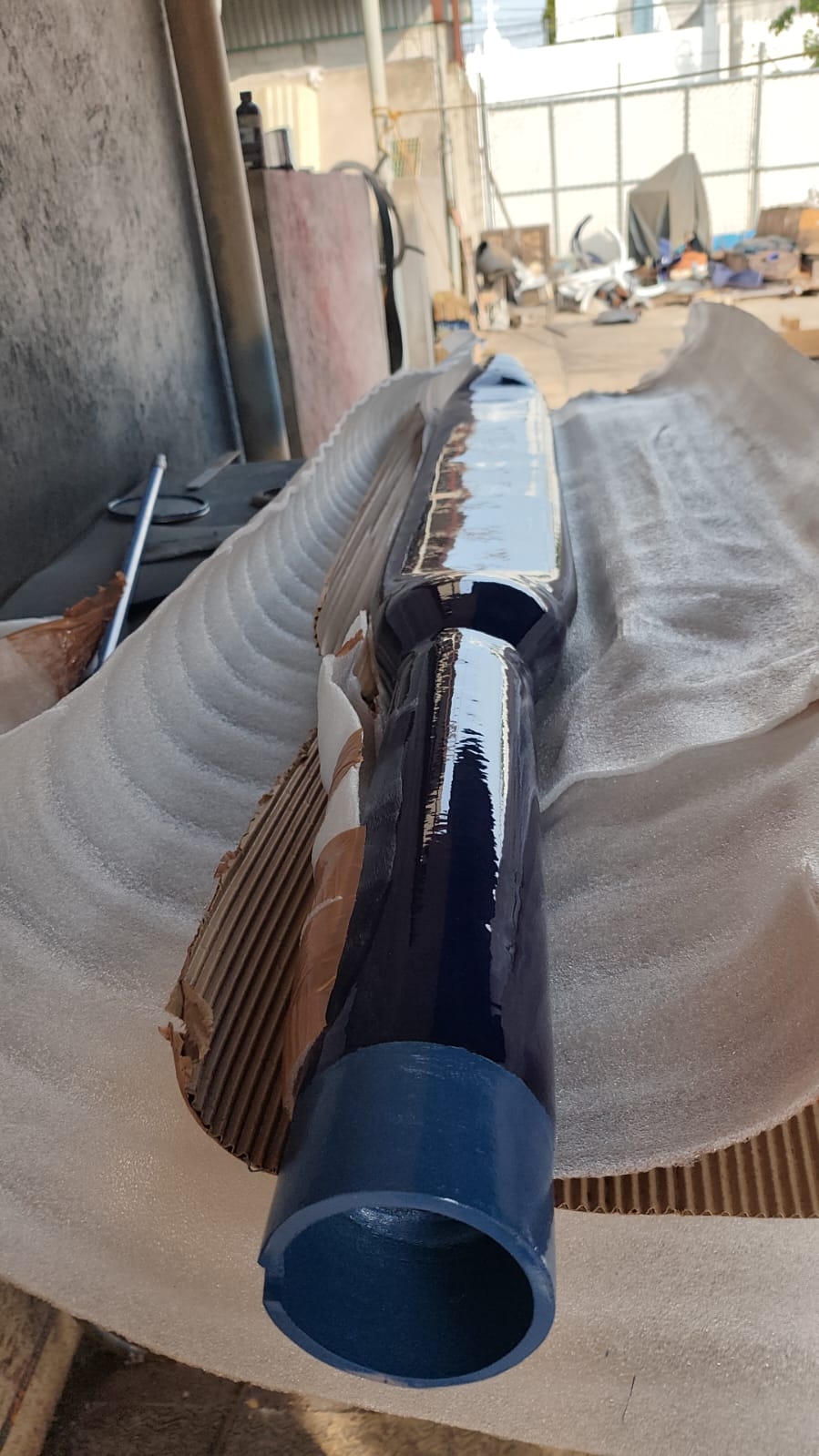

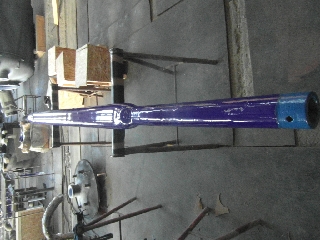

Baffle Glass Lined Parts - IPP# 247197

Type: Glass Lined Parts

Subtype: Baffle

Manufacturer: DeDietrich

Model: Beaver Tail

Condition: Re-glassed

Material: Glasslined

Diameter: 114.3 mm (4.5 in)

Length: 2,750 mm (108.5 in)

• 108" wet length, 117" over all length
• Flange mount design for a 6" nozzle,13 1/2" O.D. flange with (8) bolt holes.

Span: 177.8 mm (7 in). Vessel Size: 7,550 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Type: Glass Lined Parts

Subtype: Baffle

Manufacturer: DeDietrich

Model: Beaver Tail

Condition: Re-glassed

Material: Glasslined

Diameter: 114.3 mm (4.5 in)

Length: 3,850 mm (151 in)

Span: 177.8 mm (7 in). Vessel Size: 22,700 L (6,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Type: Glass Lined Parts

Subtype: Baffle

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Diameter: 117 mm (4.6 in)

Length: 2,800 mm (110.6 in)

blue glass lined 3-finger up baffle hole for tip

Vessel Size: 8,000 L (2,100 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

Type: Glass Lined Parts

Subtype: Baffle

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Diameter: 88.9 mm (3.5 in)

Length: 1,550 mm (62 in)

For an 8" nozzle.

Span: 152.4 mm (6 in). Vessel Size: 2,850 L (750 gallons). Glass Baffle Type: Beavertail.
