Name: Stainless Steel 304 Dryer- Nauta / Conical
Brand: Bolz Apparatebau
SKU: 248077

Overview

Type:

Dryer- Nauta / Conical

Manufacturer:

Bolz Apparatebau

Model:

MF250

Condition:

Used

Material:

Stainless Steel 304

Capacity

Capacity:

5,800 L (1,550 gallons)

Other Specifications

Vessel Pressure:

3 bar (43.5 psi)

Vessel Temperature:

120 °C (248 °F)

Vessel Vacuum Rated:

Yes

Jacket

Jacket Pressure:

4 bar (58 psi)

Jacket Temperature:

120 °C (248 °F)

Additional Info:

design pressure internal -1/3 bar @ 120 degrees C (5780 liter), jacket 4 bar @ 120 degrees C (750 liter)

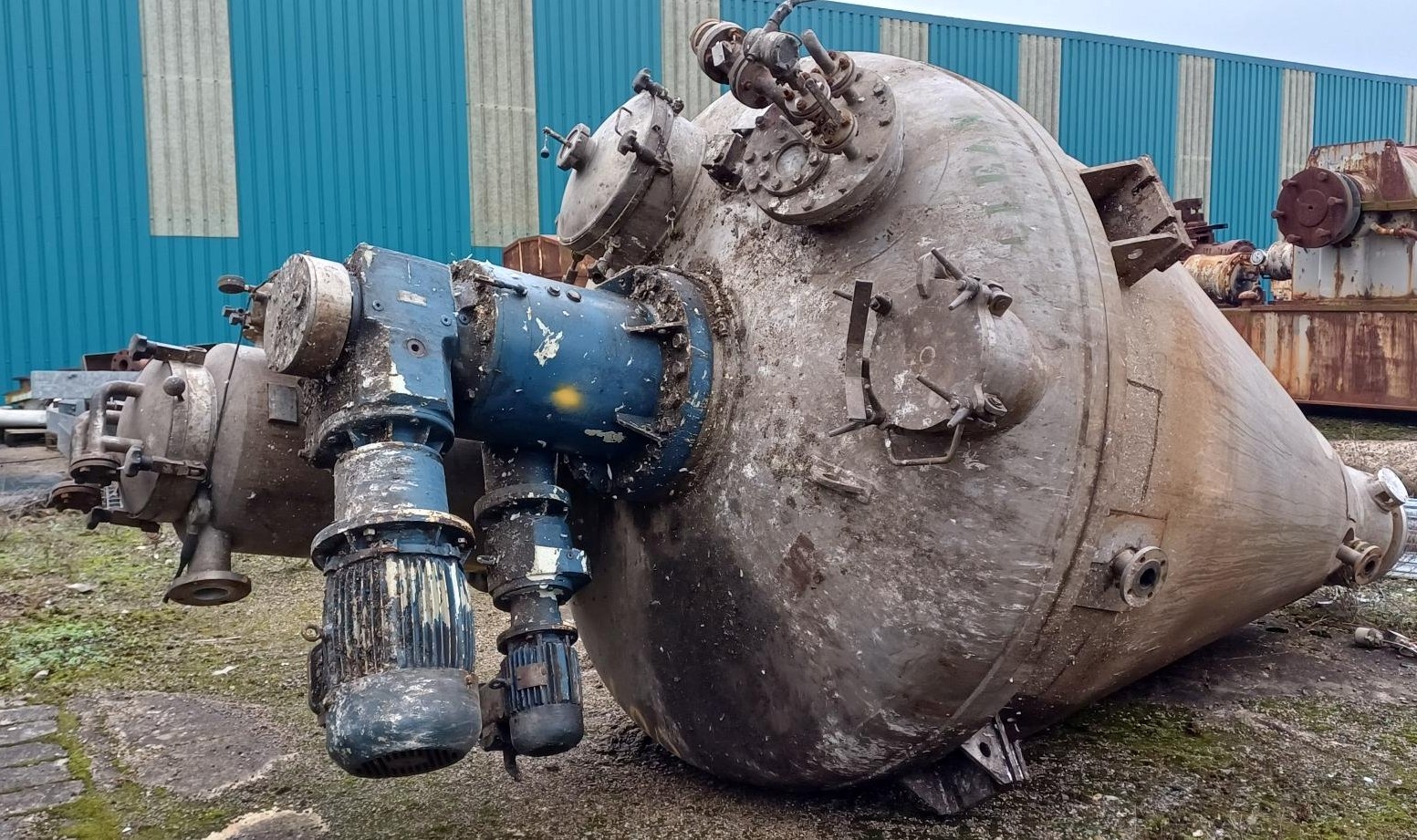

bolt dished top, weld coned bottom
approx 2m diameter x 2.9m high cone section
rotating arm driven by 1.5kW, 3/50/220/380 volt, 1420 rpm IP55 motor via a reduction gearbox
Screw driven by 11kW, 3/50/380/660 volt, 1460 rpm IP55 motor via a reduction gearbox

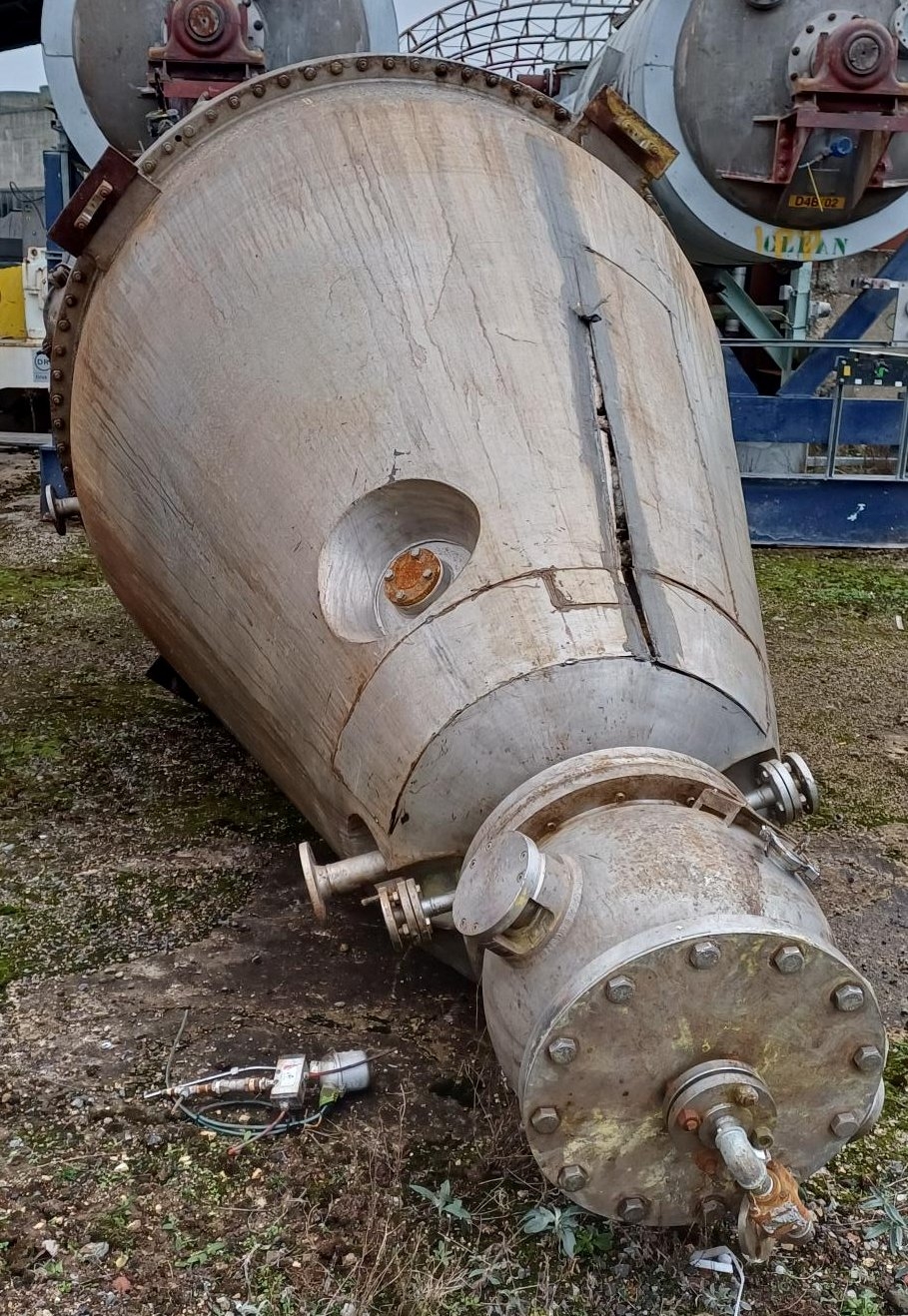

bottom outlet with pneumatic ball valve
