Name: Stainless Steel 316L Bolz GmbH Dryer- Nauta / Conical
Brand: Bolz GmbH & Co KG
SKU: 248271

Overview

Type:

Dryer- Nauta / Conical

Manufacturer:

Bolz GmbH & Co KG

Condition:

Used

Material:

Stainless Steel 316L

Capacity

Capacity Solids:

3 m3 (105.9 ft3)

Capacity Liqid:

3,000 L (793 gallons)

Other Specifications

Vessel Pressure:

4 bar (58 psi)

Vessel Temperature:

120 °C (248 °F)

Screw Heated:

Yes

Screw Pressure:

3 bar (43.5 psi)

Screw Temperature:

120 °C (248 °F)

Vessel Vacuum Rated:

Yes

Vacuum System:

Yes

Jacket

Jacket Pressure:

3 bar (43.5 psi)

Jacket Temperature:

120 °C (248 °F)

Agitation

Agitator Seal Type:

Mechanical

Dust Collection

Dust Collection:

Yes

Additional Info:

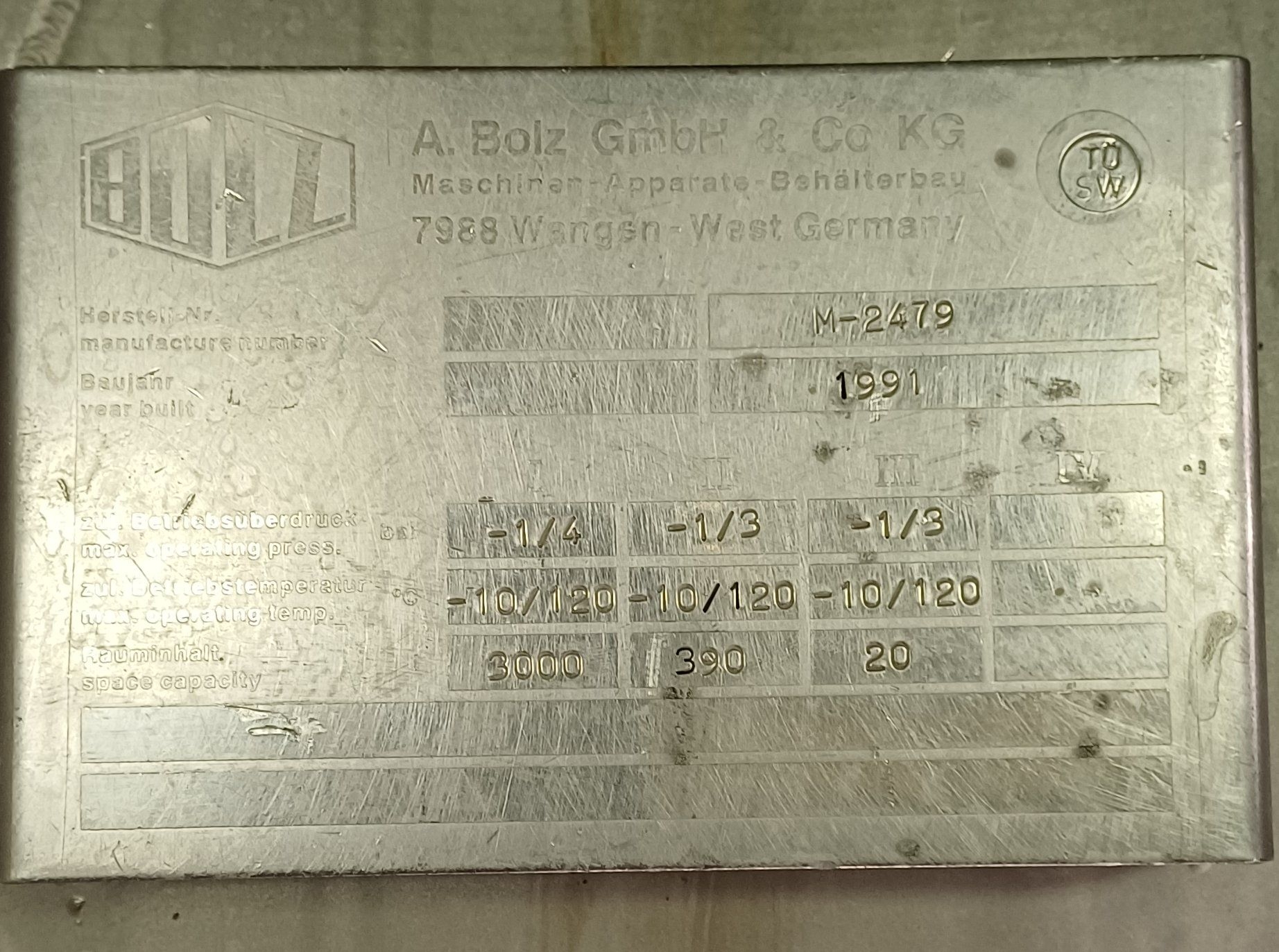

design pressure internal -1/4 bar @ -10/120 degrees C,
jacket -1/3 bar @ -10/120 degrees C (390 liter),
screw -1/3 bar @ -10/120 degrees C (20 liter),
316L (1.4404) stainless steel jacket,
rotating arm driven by 11kW, 3/50-60/220-240/380-415/248-266/415-460 volt, 1500/1700 rpm Ex motor via a reduction gearbox,

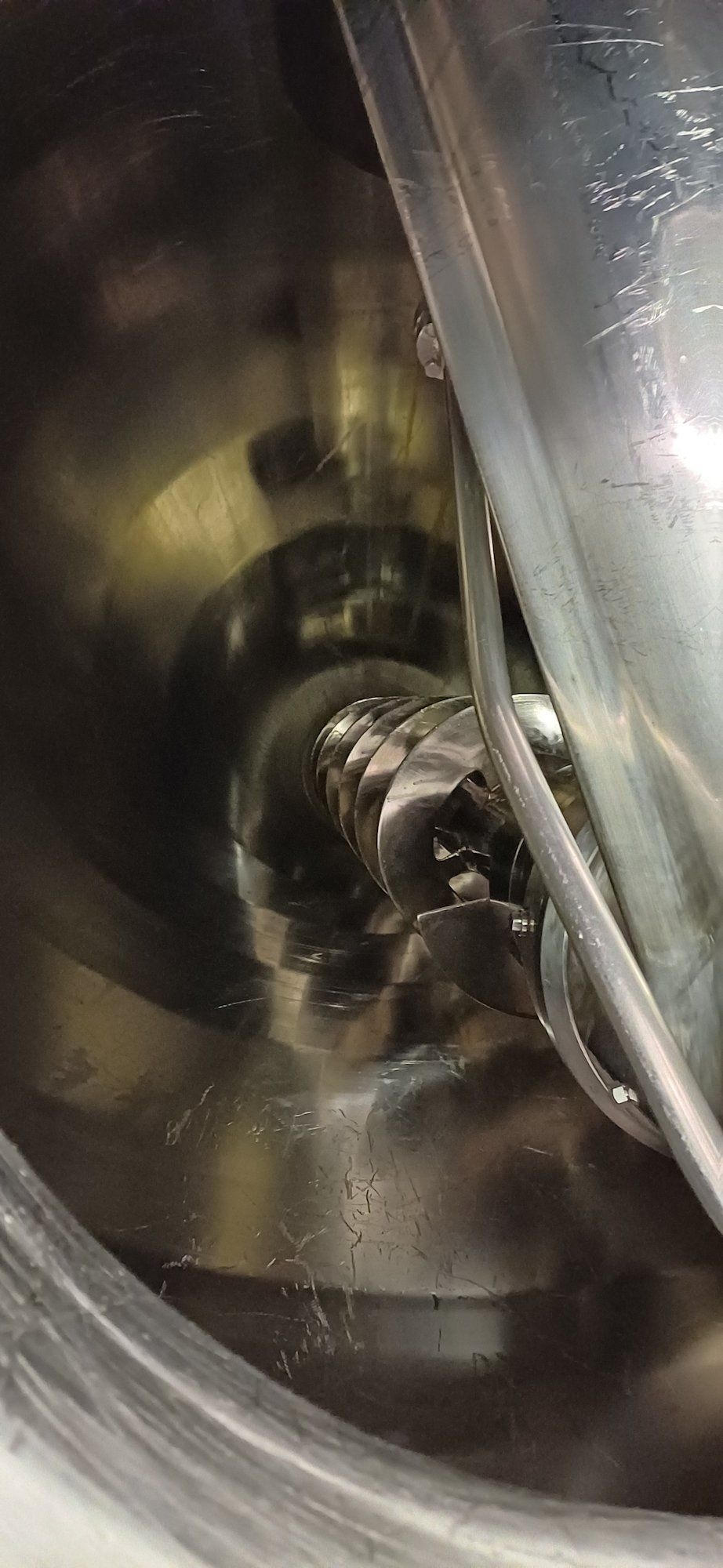

screw driven by approx 5kW motor via a reduction gearbox,

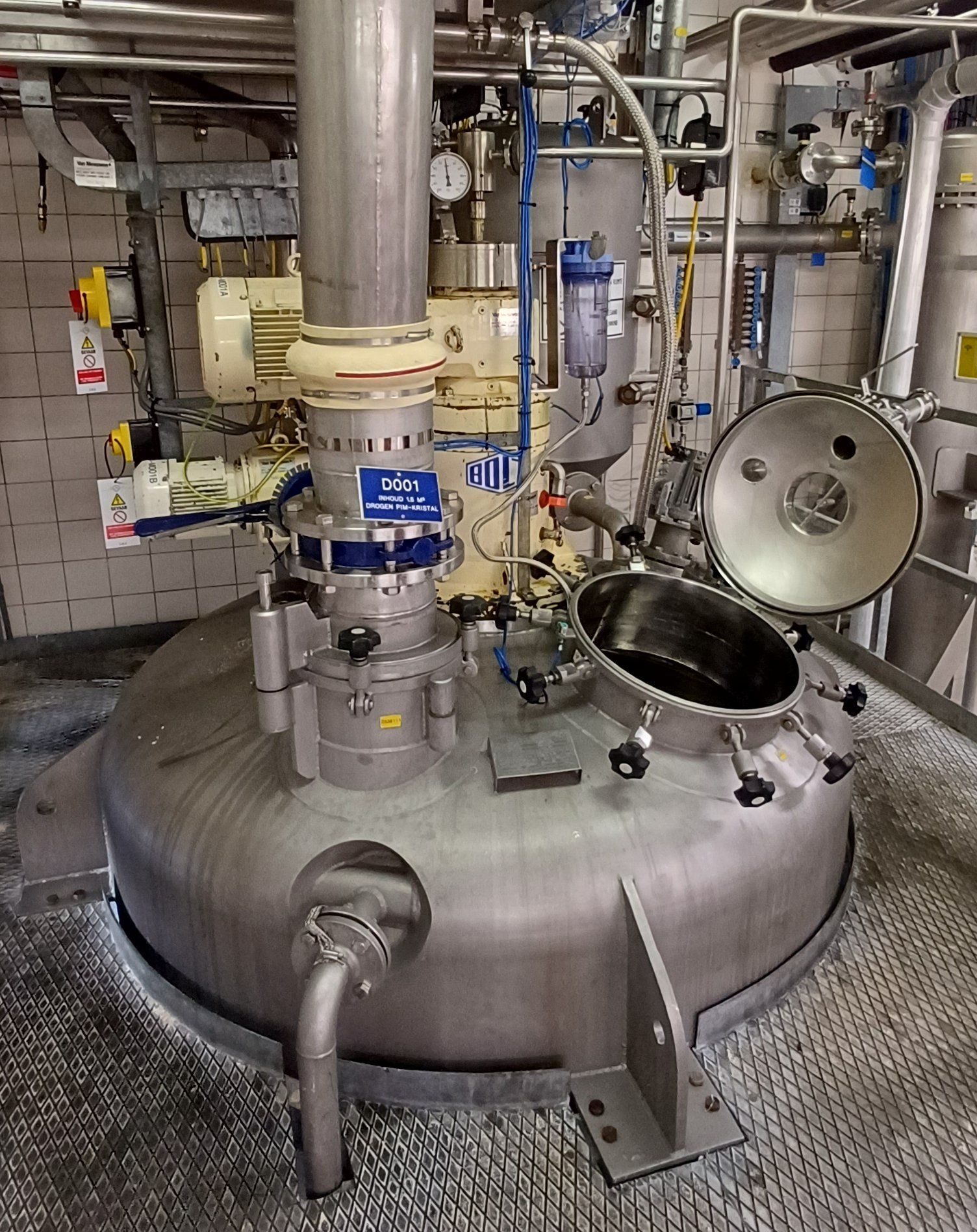

weld dished top, weld coned bottom,

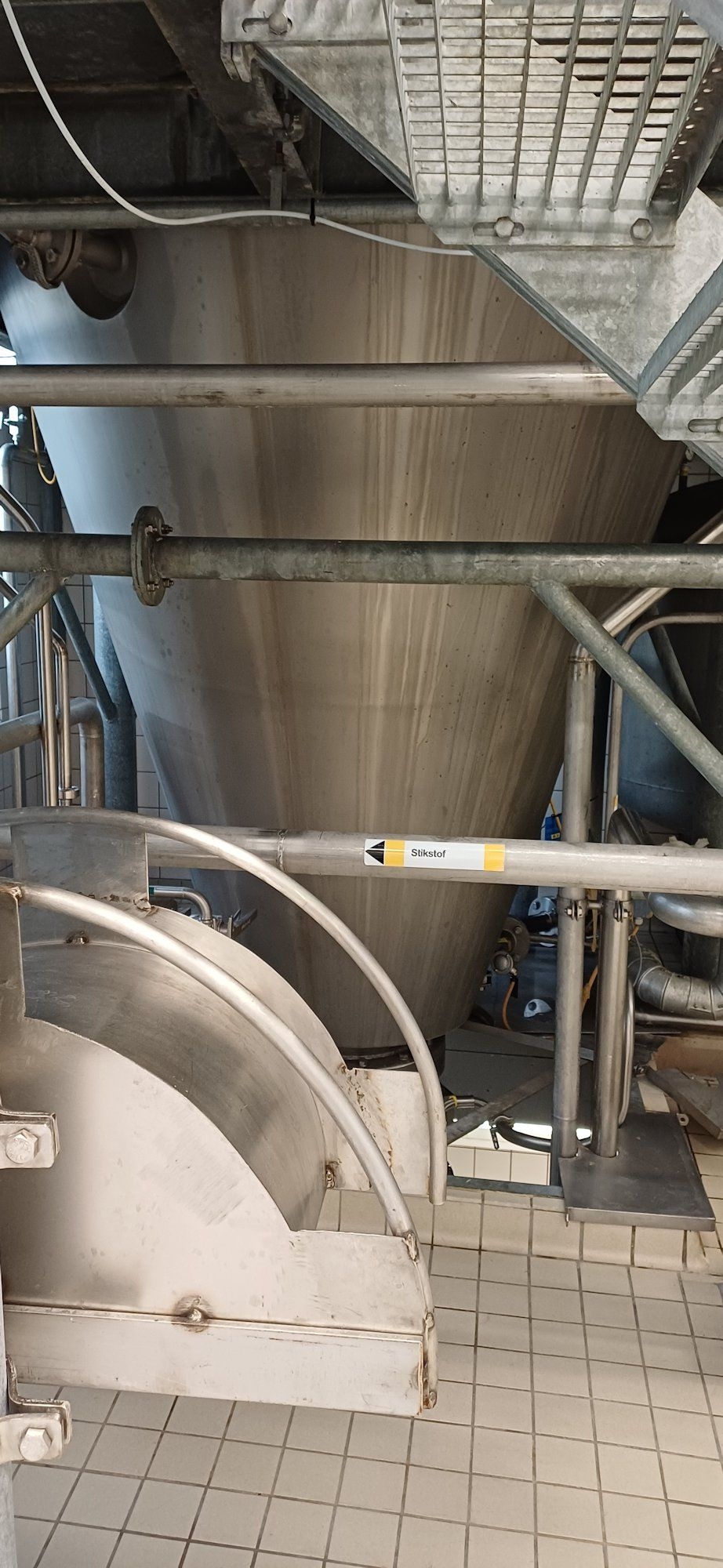

approx 1.8m diameter x 2m high cone section,
pneumatic ball valve on bottom of come,
mounted on lugs,
(1) 316L stainless steel discharge hopper with bottom screw conveyor, weld flat top, weld coned bottom approx 1.2m diameter x 1m straight side, approx 50mm diameter screw on conveyor, driven by approx 1.5kW motor via a reduction gearbox,
